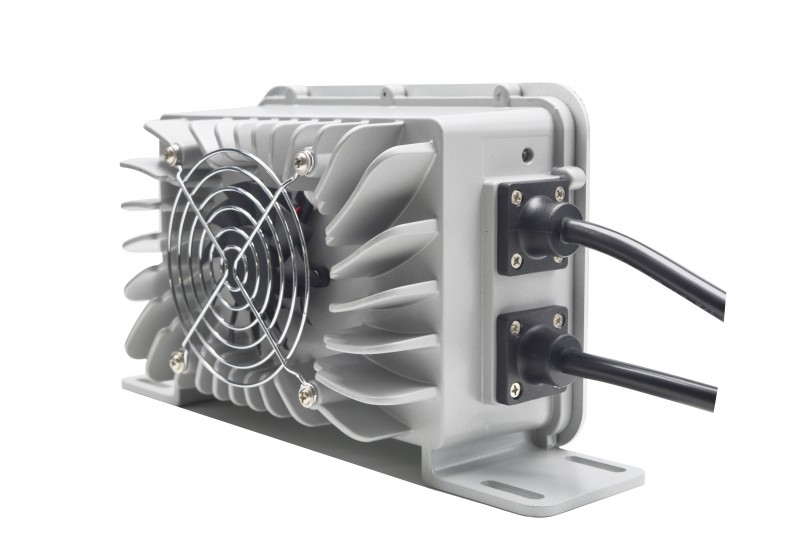

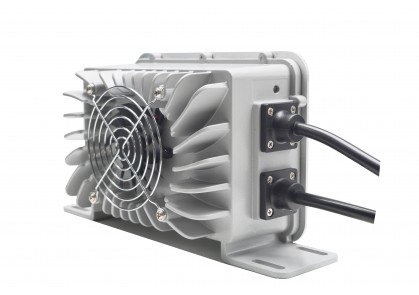

Universal 36V 12A Waterproof Battery Charger

Universal 36V 8A Waterproof Lithium Battery Charger

Brief Descriptions:

36V 12A output Marine Battery Charger.

IP65 / IP66 Waterproof Rate Rate.

Universal 90~264Vac input voltage with PFC.

42 / 43.8 / 44.1V customized max charging voltage for Lithium / lead-acid batteries.

Micro-processor controlled and intelligent 4 steps charging。

92% high efficiency.

2 years warranty, high quality.

Specifications:

AC input voltage: universal 90 to 264Vac with PFC

AC input freq.: 50 / 60 Hz

Rated output: 36V 12Amps

Max charging voltage: 42V / 43.8V / 44.1V

Waterproof rate: IP65 / IP66

Dimensions(LxWxH): 197 x 134 x 86 mm

Net weight: 3.0 KG

Housing: Aluminum

Color: silver or black

Techonolgy:

High Frequency Switching Mode Power Supply

Smart MCU contolled

Protections:

Short circuit, Over-voltage, Over-temperature, Reverse Polarity.

Warranty:

Fully 2-year warranty with Free Replacing Policy.

Resposing in 24 hours after getting failed product report from customers.

Applications:

Charging 36V Li-ion, LiFePO4 Battery.

Special Function For EV:

1) In-lock signal is available: EV can't start when charging.

2) Remote signal wire is available for connecting control digital display board.

Charging method:

For Lead-acid Battery: pre-charge, CC, CV, floating.

For Lithium Battery: pre-charge, CC, CV, auto cut-off.

Input Plug & Output Connector:

We supply different plugs and connecotor by customer's applications.
