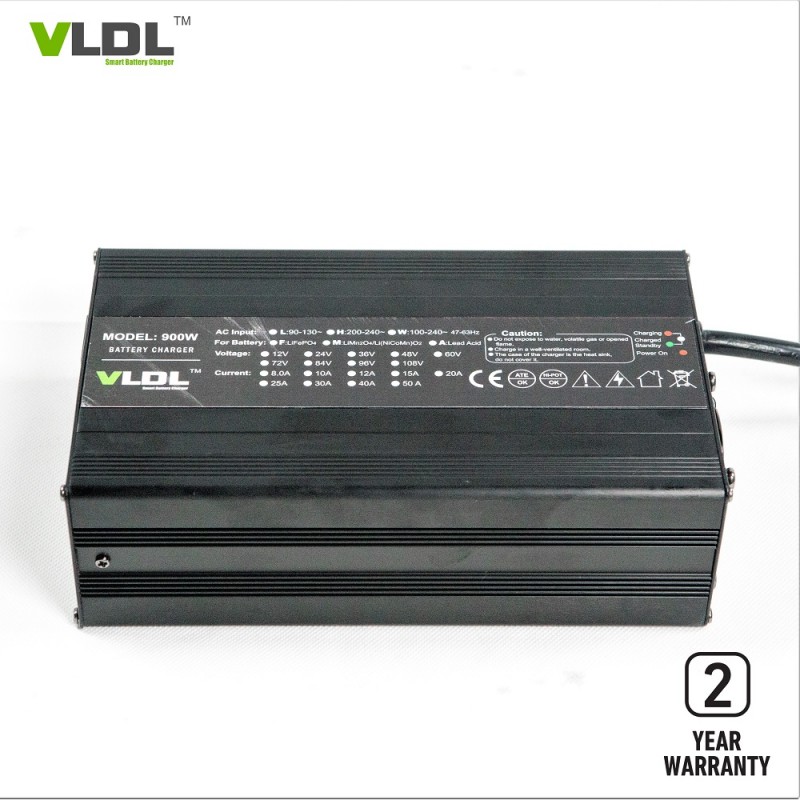

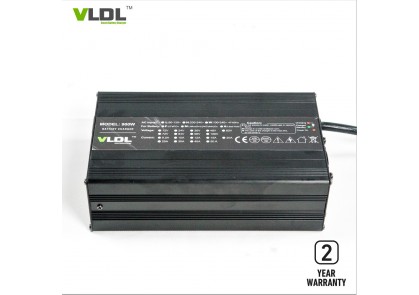

UL Certified 24V 25A Battery Charger
Color Option: Silver / Black
Applied to battery types: 24V Lead-acid Battery
Dimension: 250 x 135 x 70 mm
Net weight: 3.0kg
Input voltage: universal 90~264Vac
Charge method: Pre-charge, CC, CV and Floating
Max charge: 29.4V 25A
Warranty: 2 Years
Certificate: UL certified
- Product Details
UL Certified 24V 25A Battery Charger
Brief Description:
Designed for 24V Lead-acid battery input with universal 90~264Vac with PFC and rated output voltage is 24V 25A. Smart max charging voltage is 29.4V SLA/AGM/SMF/GEL batteries. Intelligent 4 steps charging with pre-charge, CC, CV and floating or automatic cut - off, this charger will charge your racing battery very fast, with high efficiency and protect your battery life to the max. High quality, factory price and 2 years warranty.
Features
Optional charging methods: SLA, SMF, GEL, AGM batteries.
Advanced high frequency switching mode power supply technology.
DC output isolated from AC input.
Automatic worldwide Input 110/230Vac(90~264Vac) with PFC, 50Hz~60Hz.
Charging parameters are insensitive to the AC input line voltage variations.
Completely automatic 4 steps charge: pre-charge, CC, CV, floating/trickle or shut-off.
Protections: Short circuit, Over - voltage, Over - temperature, Reverse Polarity.
Aluminum casing, light weight, portable.
100% full load burn-in test.
2 years warranty.
Technical Specs.:
Dimensions(LxWxH): 250 x 135 x 70 mm
Net weight: 3.0 KG
Max charging voltage(CV): 29.4 volt
Floating voltage: 27.6V
Max output current (CC): 25 amps
Charging method: Pre-charge, CC, CV, floating / trickle or shut off
AC input voltage: 90 ~ 264Vac with PFC
AC input freq.: 50 / 60 Hz
AC plug: custom-made
Output connector type: customized by applications
Enclosure: Aluminum
Rlated models of 900W charger:
| Output series: 900W Size: 250×135×70 mm Net weight: 3.0 KG | ||||||
| Input | Model | Apply to battery types | Floating V | CV (V) | CC (A) | Switching |
|
AC Input:
90-264V
Frequency: 47~63HZ
|
VL1230L | 12V LiFePO4 Battery |
|
14.6V | 30A | CC5~8% |
| VL1230 | 12V Lead-acid Battery | 13.5V | 14.7V | 30A | CC20% | |
| VL1430 | 14V AGM Battery | 13.5V | 14.4V | 30A | CC20% | |
| VL1630L | 16V LiFePO4 Battery |
|
18.2V | 30A | CC5~8% | |
| VL2425LM | 24V Li-MnO2 Battery |
|
29.4V | 25A | CC5~8% | |
| VL2425L | 24V LiFePO4 Battery |
|
29.2V | 25A | CC5~8% | |
| VL2425 | 24V Lead-acid Battery | 27.6V | 29.4V | 25A | CC20% | |
| VL3618LM | 36V Li-MnO2 Battery |
|
42V | 18A | CC5~8% | |
| VL3618L | 36V LiFePO4 Battery |
|
43.8V | 18A | CC5~8% | |
| VL3618 | 36V Lead-acid Battery | 41.4V | 44.1V | 18A | CC20% | |
| VL4815LM | 48V Li-MnO2 Battery |
|
54.6V | 15A | CC5~8% | |
| VL4815L | 48V LiFePO4 Battery |
|
43.8V | 15A | CC5~8% | |
| VL4815 | 48V Lead-acid Battery | 55.2V | 58.8V | 15A | CC20% | |
| VL6012L | 60V LiFePO4 Battery |
|
73V | 12A | CC5~8% | |
| VL6012 | 60V Lead-acid Battery | 67.5V | 73.5V | 12A | CC20% | |
| VL7210L | 72V LiFePO4 Battery |
|
87.6V | 10A | CC5~8% | |
| VL7210 | 72V Lead-acid Battery | 81V | 88.2V | 10A | CC20% | |
|
|
VL8408L | 84V LiFePO4 Battery |
|
102.2V | 8A | CC5~8% |
|
|
VL8408 | 84V Lead-acid Battery | 94.5V | 102.9V | 8A | CC20% |
| Note: customized input / output / plug type / connectors are available. | ||||||

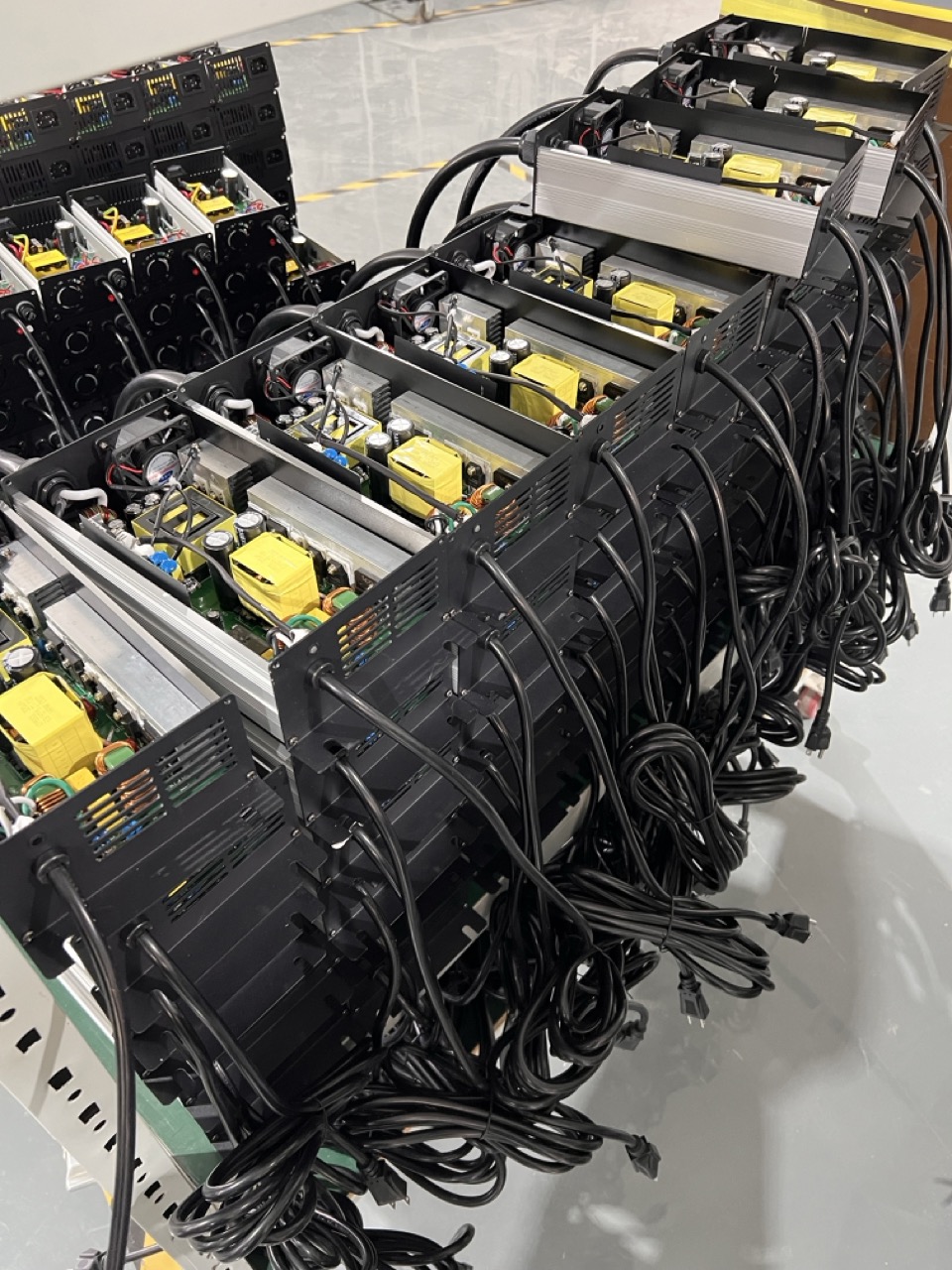

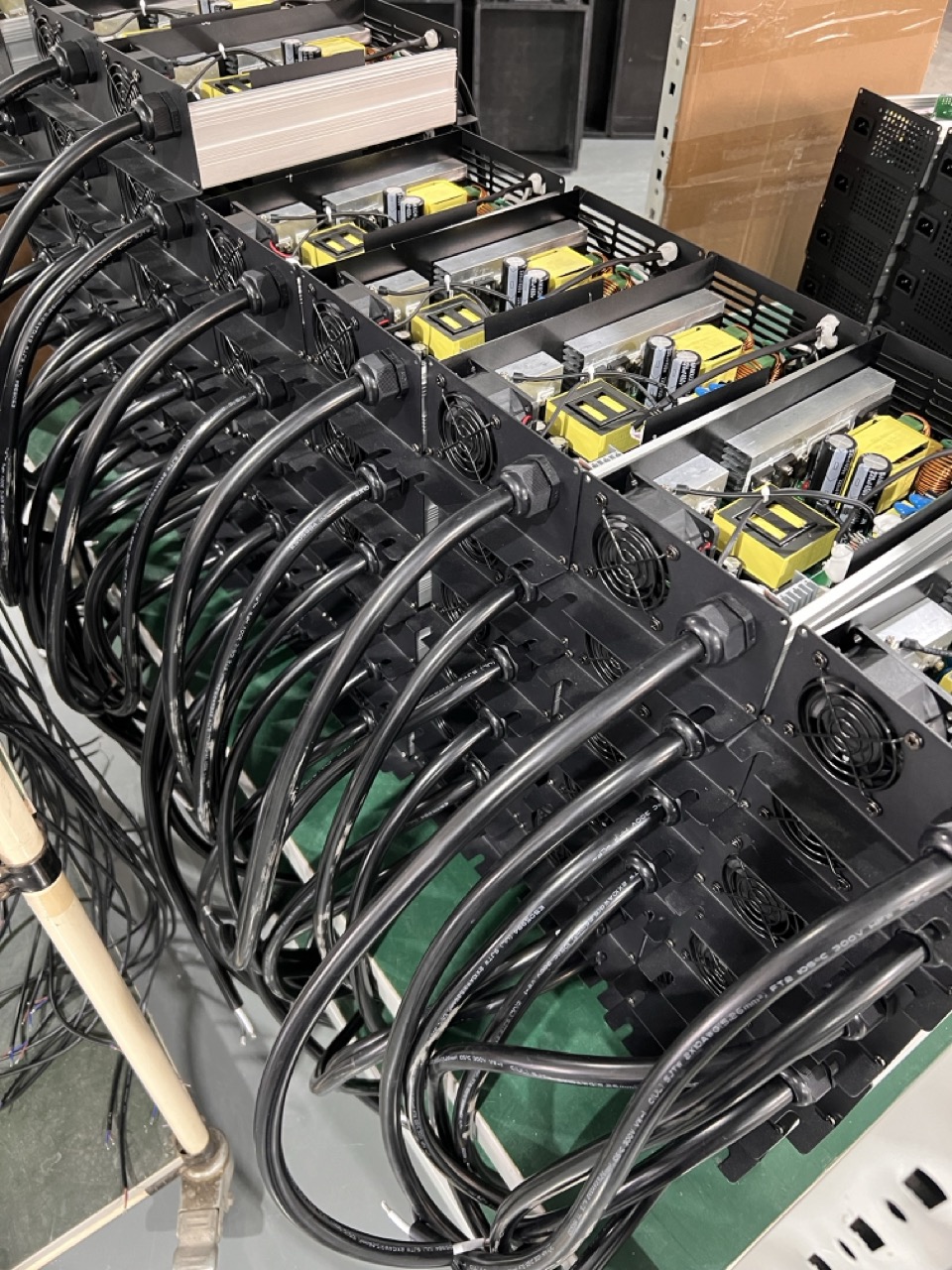

VLDL 24V 25A smart battery chargers are in assembling process. This type is UL listed and will be sold in US market for forklift 24V lithium battery.
