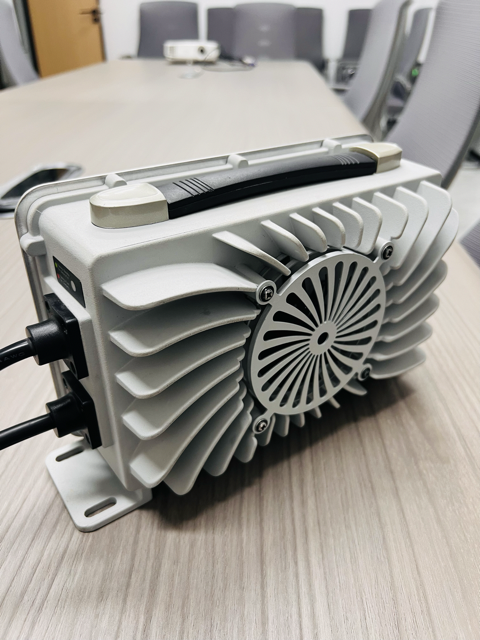

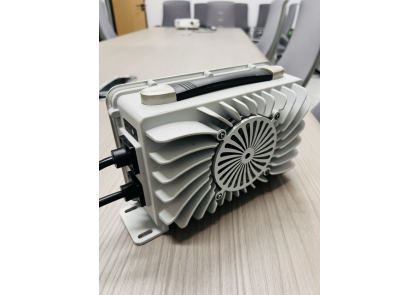

Smart 48V 10A Waterproof Battery Charger

NEW Smart 48V 10A Waterproof Battery Charger

Brief Descriptions:

48V 10A output Marine Battery Charger.

IP65 / IP66 Waterproof Rate Rate.

Universal 90~264Vac input voltage with PFC.

54.6 / 58.4 / 58.8V customized max charging voltage for Lithium / lead-acid batteries.

Micro-processor controlled and intelligent 4 steps charging。

92% high efficiency.

2 years warranty, high quality.

Specifications:

AC input voltage: universal 90 to 264Vac with PFC

AC input freq.: 50 / 60 Hz

Rated output: 48V 10Amps

Max charging voltage: 54.6V / 58.4V / 58.8V

Waterproof rate: IP65 / IP66

Dimensions(LxWxH): 262 x 134 x 86 mm

Net weight: 2.8 KG

Housing: Aluminum

Color: silver or black

Techonolgy:

High Frequency Switching Mode Power Supply

Smart MCU contolled

Protections:

Short circuit, Over-voltage, Over-temperature, Reverse Polarity.

Warranty:

Fully 2-year warranty with Free Replacing Policy.

Resposing in 24 hours after getting failed product report from customers.

Applications:

Charging 48V NMC, LPF, lithium ion battery.

Special Function For EV:

1) In-lock signal is available: EV can't start when charging.

2) Remote signal wire is available for connecting control digital display board.

Charging method:

For Lead-acid Battery: pre-charge, CC, CV, floating.

For Lithium Battery: pre-charge, CC, CV, auto cut-off.

Input Plug & Output Connector:

We supply different plugs and connector by customer's applications.

Output series: 600S      Size: 262×134×86 mm     Net weight: 2.8 KG
Input	Model	Apply to battery types	Floating V	CV (V)	CC (A)	Switching
PFC AC Input: 90 - 264V Frequency: 47~63HZ	VL1225L	12V LiFePO4 Battery		14.6V	25A	CC5~8%
	VL1225	12V Lead-acid Battery	13.5V	14.7V	25A	CC20%
	VL1425	14V AGM Battery	13.5V	14.4V	25A	CC20%
	VL1625L	16V LiFePO4 Battery		18.2V	25A	CC5~8%
	VL2418LM	24V Li-MnO2 Battery		29.4V	18A	CC5~8%
	VL2418L	24V LiFePO4 Battery		29.2V	18A	CC5~8%
	VL2418	24V Lead-acid Battery	27.6V	29.4V	18A	CC20%
	VL3612LM	36V Li-MnO2 Battery		42V	12A	CC5~8%
	VL3612L	36V LiFePO4 Battery		43.8V	12A	CC5~8%
	VL3612	36V Lead-acid Battery	41.4V	44.1V	12A	CC20%
	VL4810LM	48V Li-MnO2 Battery		54.6V	10A	CC5~8%
	VL4810L	48V LiFePO4 Battery		43.8V	10A	CC5~8%
	VL4810	48V Lead-acid Battery	55.2V	58.8V	10A	CC20%
	VL6008L	60V LiFePO4 Battery		73V	8A	CC5~8%
	VL6008	60V Lead-acid Battery	67.5V	73.5V	8A	CC20%
	VL7206L	72V LiFePO4 Battery		87.6V	6A	CC5~8%
	VL7206	72V Lead-acid Battery	81V	88.2V	6A	CC20%
	VL8405L	84V LiFePO4 Battery		102.2V	5A	CC5~8%
	VL8405	84V Lead-acid Battery	94.5V	102.9V	5A	CC20%
Note: customized input / output / plug type / connectors are available.
