Smart 12V 30A Battery Charger
Item No.: VL1230
Case material: Aluminun
Input voltage: 110V or 230V
Rated output: 12V 30A
Max charging: 14.4V or 14.7V
Applied to battery types: 12V Lead-acid, AGM, GEL
Charging method: CC, CV and Floating
Net weight: 3.5KG
- Product Details

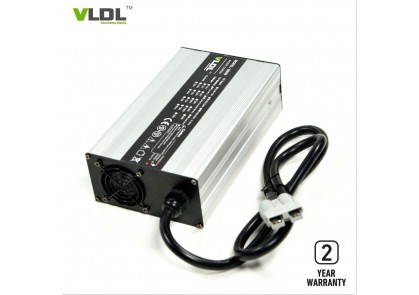

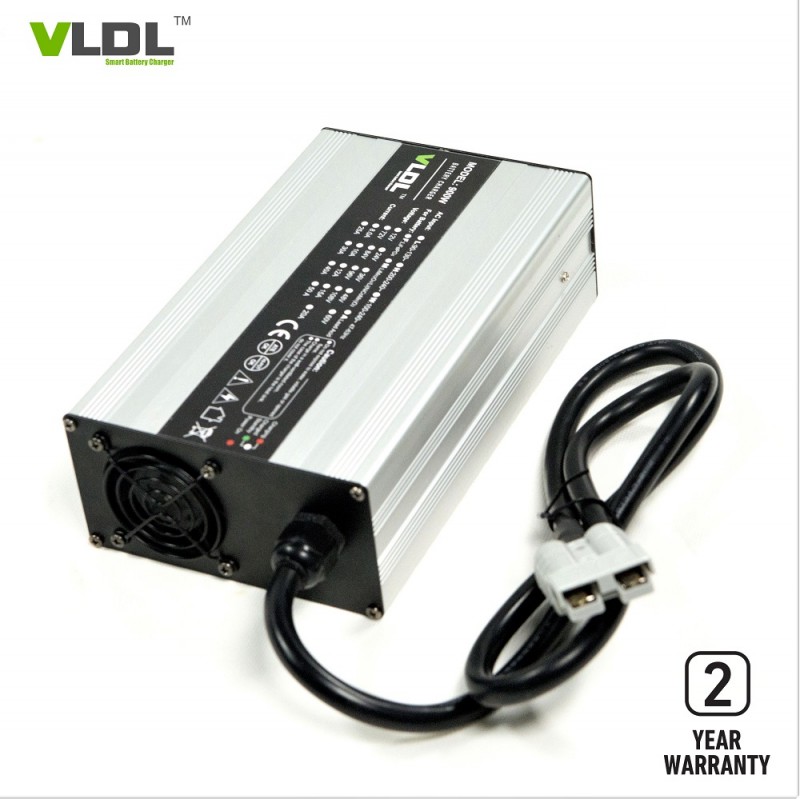

Smart 12V 30A Lead-acid Battery Charger
Brief Description:
Smart lead acid battery charger 12 volts 30 amps, input with AC 110 / 230Vac and rated output voltage is DC 12V 30A. Smart max charging voltage is 14.7V for sealed lead acid type batteries or 14.4V AGM batteries. Intelligent 4 stages charging with pre-charge, CC, CV and floating / trickle steps, this charger will charge your battery powered electric vehicles very fast, with high efficiency and pretect your battery life maximumly. High quality, factory price and 2 years warranty.
Features
Optional charging methods: Lithium or SLA / AGM batteries.
Advanced high frequency switching mode power supply technology.
DC output isolated from AC input.
Input 110 or 230Vac, 50Hz ~ 60Hz.
Charging parameters are insensitive to the AC input line voltage variations.
Completely automatic 3 steps charge: CC, CV, floating.
Protections: Short circuit, Over - voltage, Over - temperature, Reverse Polarity.
Aluminum casing, light weight, portable.
100% full load burn-in test.
2 years warranty.
Technical Specs.:
Dimensions(LxWxH): 230 x 135 x 70 mm
Net weight: 3.0 KG
Max charging voltage(CV): 14.4 / 14.7 volts
Floating voltage: 13.5Vdc
Max output current (CC): 30 amps
Charging method: CC, CV, floating
AC input voltage: 110 / 240Vac
AC input freq.: 50 / 60 Hz
AC plug: customized by user’s country
Output connector type: customized by applications
Enclosure: Aluminum
| Output series: 900W Size: 230×135×70 mm Net weight: 3.0 KG | ||||||
| Input | Model | Apply to battery types | Floating V | CV (V) | CC (A) | Switching |
|
AC Input: 110 / 230V
Frequency: 47~63HZ
|
VL1230L | 12V LiFePO4 Battery |
|
14.6V | 30A | CC5~8% |
| VL1230 | 12V Lead-acid Battery | 13.5V | 14.7V | 30A | CC20% | |
| VL1430 | 14V AGM Battery | 13.5V | 14.4V | 30A | CC20% | |
| VL1630L | 16V LiFePO4 Battery |
|
18.2V | 30A | CC5~8% | |
| VL2425LM | 24V Li-MnO2 Battery |
|
29.4V | 25A | CC5~8% | |
| VL2425L | 24V LiFePO4 Battery |
|
29.2V | 25A | CC5~8% | |
| VL2425 | 24V Lead-acid Battery | 27.6V | 29.4V | 25A | CC20% | |
| VL3618LM | 36V Li-MnO2 Battery |
|
42V | 18A | CC5~8% | |
| VL3618L | 36V LiFePO4 Battery |
|
43.8V | 18A | CC5~8% | |
| VL3618 | 36V Lead-acid Battery | 41.4V | 44.1V | 18A | CC20% | |
| VL4815LM | 48V Li-MnO2 Battery |
|
54.6V | 15A | CC5~8% | |
| VL4815L | 48V LiFePO4 Battery |
|
43.8V | 15A | CC5~8% | |
| VL4815 | 48V Lead-acid Battery | 55.2V | 58.8V | 15A | CC20% | |
| VL6012L | 60V LiFePO4 Battery |
|
73V | 12A | CC5~8% | |
| VL6012 | 60V Lead-acid Battery | 67.5V | 73.5V | 12A | CC20% | |
| VL7210L | 72V LiFePO4 Battery |
|
87.6V | 10A | CC5~8% | |
| VL7210 | 72V Lead-acid Battery | 81V | 88.2V | 10A | CC20% | |
|
|
VL8408L | 84V LiFePO4 Battery |
|
102.2V | 8A | CC5~8% |
|
|
VL8408 | 84V Lead-acid Battery | 94.5V | 102.9V | 8A | CC20% |
| Note: customized input / output / plug type / connectors are available. | ||||||
