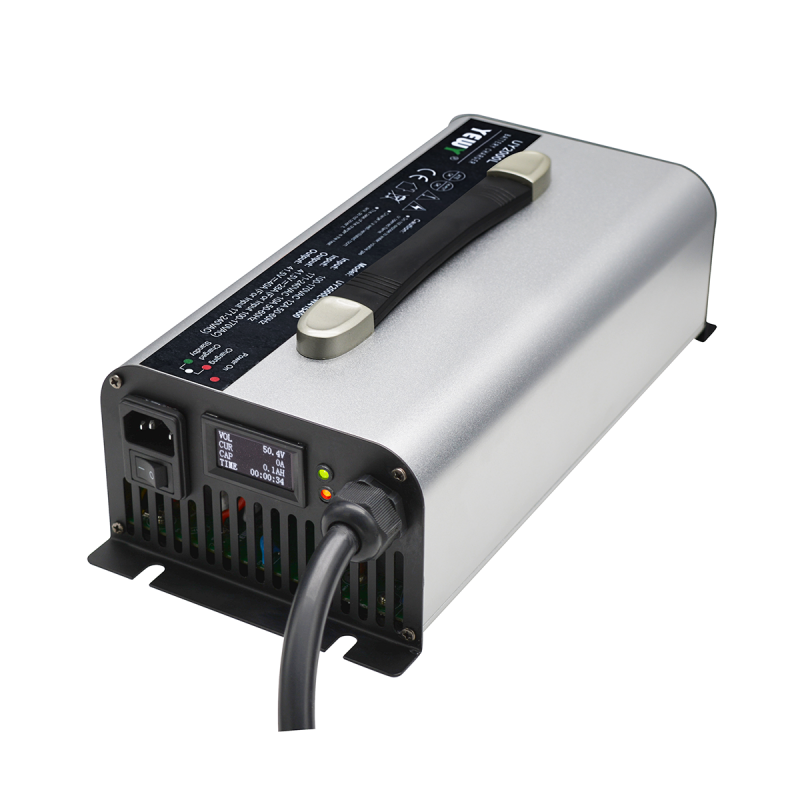

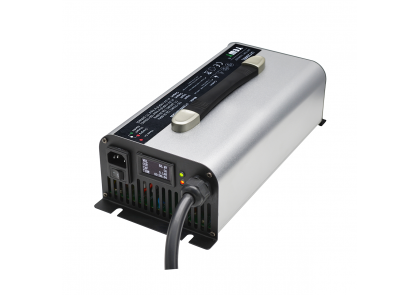

PFC 48V 20A Li Battery Charger with CAN

48V 20A PFC Lithium Battery Charger with CAN Communication

Working well with your battery BMS.

Brief Descriptions:

48V 20A output PFC Battery Charger.

Universal 110~230Vac input voltage with PFC.

54.6V / 58.4V / 58.8V customized max charging voltage for lithium batteries.

LCD display of charging status.

CAN communication.

Micro-processor controlled and intelligent 4 steps charging.

92% high efficiency.

Power Factor: >0.95

2 years warranty, high quality.

Specifications:

AC input voltage: universal 90 to 264Vac with PFC

AC input freq.: 50 / 60 Hz

Rated output: 48V 20A

Max charging voltage: 54.6V / 58.4V / 58.8V

Dimensions(LxWxH): 316 x 150 x 103 mm

Net weight: 3.6 KG

Housing: Aluminum

Color: silver

Techonolgy:

High Frequency Switching Mode Power Supply

Smart MCU controlled

PFC circuit with high efficiency

Protections:

Short circuit, Over-voltage, Over-temperature, Reverse Polarity.

Warranty:

Fully 2-year warranty with Free Replacing Policy.

Resposing in 24 hours after getting failed product report from customers.

Applications:

Charging 48V NMC, LiFePO4 lithium ion batteries.

Special Function For EV:

1) In-lock signal is available: EV can't start when charging.

2) Remote signal wire is available for connecting control digital display board.

Charging method:

For Lead-acid Battery: pre-charge, CC, CV, floating.

For Lithium Battery: pre-charge, CC, CV, auto cut-off.

Input Plug & Output Connector:

We supply different plugs and connector by customer's applications.

The 48V 20A PFC Lithium Battery Charger is a high-efficiency, reliable, and safe charger that is suitable for 48V lithium battery packs. It uses power factor correction technology to automatically adjust the power factor within the input voltage range, thereby improving energy utilization and reducing energy waste. In addition, it has multiple protection functions such as overcurrent protection, overvoltage protection, short circuit protection, etc., which can effectively protect the safety and life of the lithium battery pack.

The 48V 20A PFC Lithium Battery Charger also has the following features:

• High efficiency: It adopts high-efficiency switch power supply technology and can fully charge the lithium battery pack in a short time.
• Reliable: It adopts high-quality components and materials and has a long service life and stability.
• Easy to use: It has a simple operating interface and indicator lights, which can be easily operated and monitored.

If you are looking for a high-efficiency, reliable, and safe lithium battery charger, then the 48V 20A PFC Lithium Battery Charger will be your best choice!
