New 12V 50A Marine Battery Charger

New 12V 50A Marine Battery Charger

Charging both 12V Lead-acid and Lithium Battery by ONE Charger
CAN or RS485 communication port is available

No matter your cell voltage is 3V, 3.65V, 4.2V or other voltages, we will program by your battery and you just choose one mode before charging.

One Charger for 3-mode Battery Types Charging

There is a selector for choosing battery types:

1. LPF: LiFePO4 Battery

2. NCM: LioO2, LiNiO2 and LiMnO2 Battery

3. Lead Acid: AGM, GEL and SLA battery

Just select the button of "SEL" by your battery type before charging and start smart charging with set Pre-charge, CC, CV, Floating or Cut-off automatically.

Do not need to buy three different chargers for your different batteries. Money saving and space saving.

Factory price, high quality with two years warranty.

Charging Curve:



Brief Description:

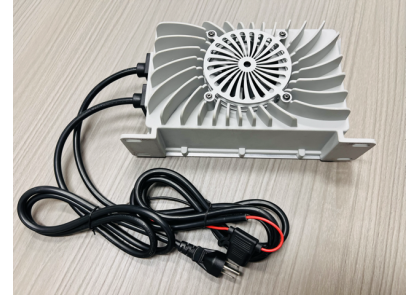

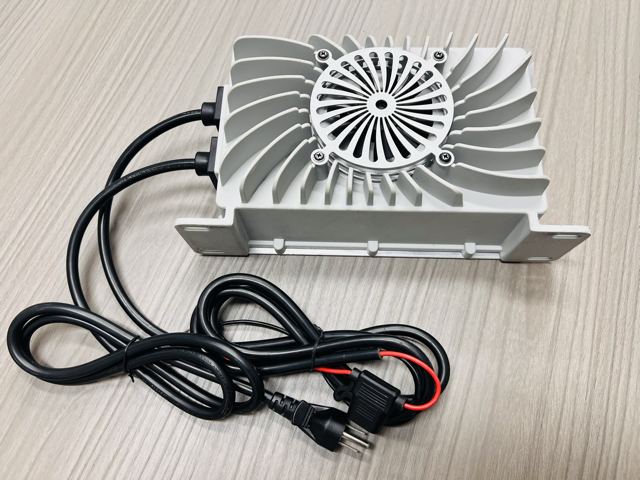

This 12V 50A waterproof / marine battery charger is designed for both 12V LPF, NCM lithium battery and AGM, GEL, SLA lead acid battery, waterproof & anti-vibration, input with universal 110-230Vac and rated output voltage is 12V 50A. Intelligent 4 steps charging with pre-charge, CC, CV, Floating, automatic cut - off, this charger will charge your 12V lithium and lead acid battery very fast, with high efficiency and protect your battery life to the max. High quality, factory price and 2 years warranty.

Features:

Optional charging methods: NCM or LFP lithium ion batteries and AGM, GEL, SLA lead acid batteries.

Advanced high frequency switching mode power supply technology.
DC output isolated from AC input.
Universal AC input 110-230Vac with PFC, 50Hz~60Hz
Power factor: >0.99

Communication port: CAN bus/RS485
Charging parameters are insensitive to the AC input line voltage variations.
Completely automatic 4 steps charge: pre-charge, CC, CV, floating/trickle or Cut-off.
Protections: Short circuit, Over - voltage, Over - temperature, Reverse Polarity.
Aluminum casing, light weight, portable.
100% full load burn-in test.
3 years warranty.

Technical Specs.:
Dimensions(LxWxH): 283*164*93 mm
Net weight: 4.5 KG
Max charging voltage(CV): 14.4V 14.6V 14.7V selectable
Max output current (CC): 50 amps
Charging method: Pre-charge, CC, CV, Floating
AC input voltage: 110-230Vac (90~264Vdc)
AC input freq.: 50 / 60 Hz
AC plug: custom-made
Output connector type: customized by applications
Enclosure: Aluminum

High quality, 3 years warranty, factory price, original China manufacturer
