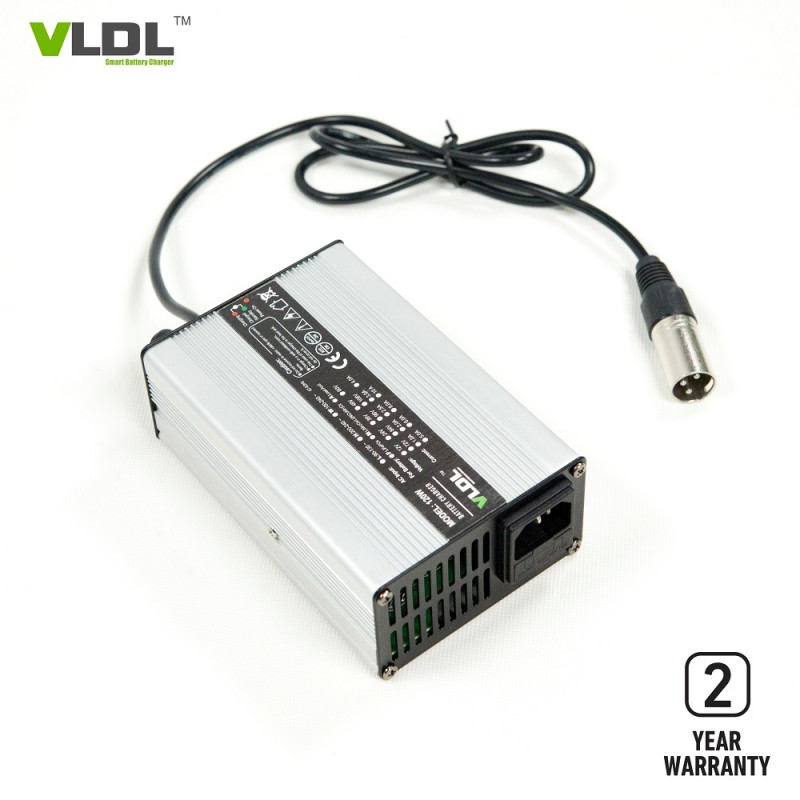

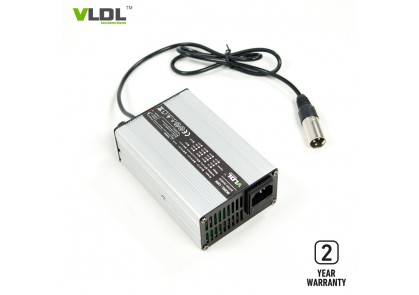

Electric Bike Charger 48V 2A

Electric Bike Smart Battery Charger 48V 2A

Brief Description:

Electric bike charger 48 volts 2 amps, smart four steps charging with floating / trickle step. Designed for 48V lithium or lead acid battery powered electric bikes / bicyles, input with worldwide 110 to 230Vac and rated output voltatge is 48V 2A. Smart max charging voltage is 58.8V for lead acid type batteries (AGM, GEL, Deep cycle) and 54.6 / 58.4V for lithium (LiFePO4, Li ion, Li MO2) batteries. Intelligent 4 steps charging with pre-charge, CC, CV and floating / trickle or automatic cut-off, this charger will charge your electric bikes/bicycles very fast, with high efficiency and pretect your battery life maximumly. Small size and aluminum housing.

Features:

◆ Advanced high frequency switching mode power supply technology.

◆ DC output isolated from AC input.

◆ Auto worldwide Input 110 / 230Vac (90 ~ 264Vac), 50Hz ~ 60Hz.

◆ Charging parameters are insensitive to the AC input line voltage variations.

◆ Completely automatic battery charging: Pre - charging, CC, CV, Absorption, Float or Cut-off.

◆ 2 LEDs: LED1 Red (power on), LED2 Red/green (charging / full).

◆ Possibility to customize charging curve for request.

◆ Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.

◆ Efficiency > 95%.

◆ Forced ventilation with fans.

◆ 100% full load burn-in test.

◆ Aluminum casing, light weight, portable.

Technical Specs.:

1) Dimensions(LxWxH): 135 x 90 x 50 mm

2) Net weight: 0.8 KG

3) Max charging voltage(CV): 58.4 / 58.8 volt

4) Floating voltage: customized

5) Max output current (CC): 2 amps

6) Charging method: pre-charge, CC, CV, floating / trickle or shut off

7) AC input voltage: 110 - 240Vac

8) AC input freq.: 50 / 60 Hz

9) AC plug: customized by user’s country

10) Output connector type: customized by applications

11) Enclosure: Aluminum
