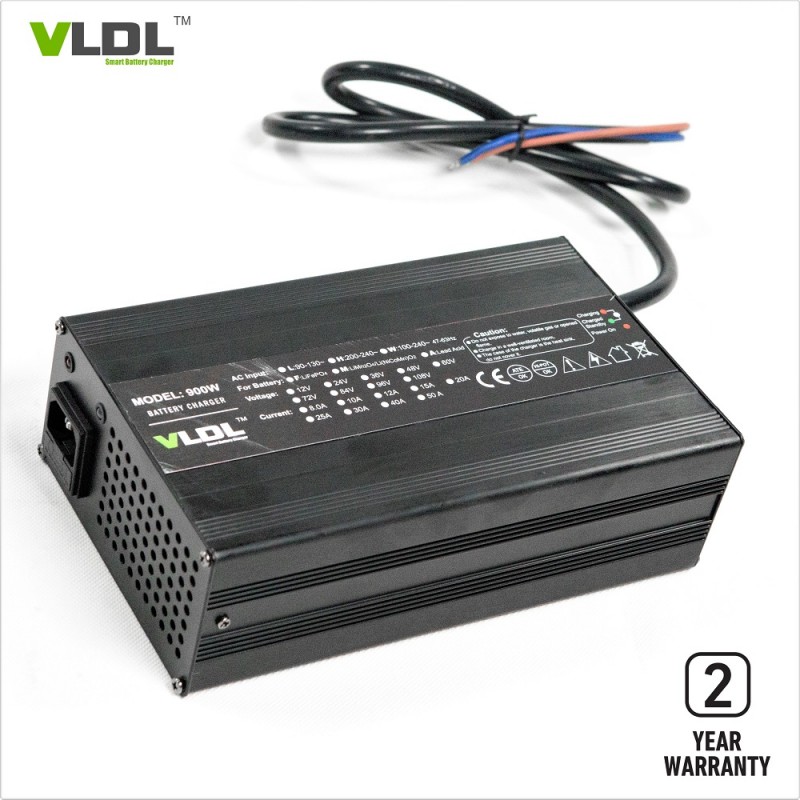

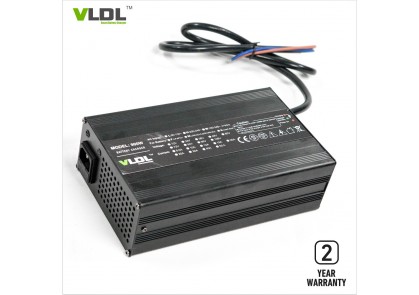

CE Certified 24V 25A Lead Acid Battery Charger
Item No.: UY900L-2425
Dimension: 230*135*70 mm
Net weight: 3.0 KG
Input voltage: Universal 110-230Vac
Output rated: 24V 25A
Max charging: 29.4V 25A
Applied to battery Types: 24V Lead-acid Battery
Charging steps: Soft-start, CC, CV, Float, Cut-off
Warranty: 2 years
- Product Details
CE Certified 24V 25A Lead Acid Battery Charger
Universal 110-230Vac input with PFC
Brief Description:
CE certified Lithium battery charger 24 volts 25 amps, input with wide AC 110-230Vac and rated output voltage is DC 24V 25A. Smart max charging voltage is 29.4V for 24V lead acid batteries. Intelligent 4 stages charging with pre-charge, CC, CV and Float, this charger will charge your battery powered electric vehicles very fast, with high efficiency and protect your battery life maximumly. High quality, factory price and 2 years warranty.
Technical Specs.:
Dimensions(LxWxH): 230 x 135 x 70 mm
Net weight: 3.0 KG
Max charging voltage(CV): 29.4 volts
Max output current (CC): 25 amps
Charging method: Automatic soft-start, CC, CV, float
AC input voltage: universal 110-230Vac
AC input freq.: 50 / 60 Hz
AC plug: customized by user’s country
Output connector type: customized by applications
Enclosure: Aluminum
Features
Optional charging methods for 24V SLA, AGM, GEL batteries.
Advanced high frequency switching mode power supply technology.
DC output isolated from AC input.
Automatic worldwide Input 110~230Vac (90 ~ 264Vac), 50Hz ~ 60Hz.
Power factor>0.95
Charging parameters are insensitive to the AC input line voltage variations.
Completely automatic 4 steps charge: pre-charge, CC, CV, floating / trickle or shut-off.
Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.
Aluminum casing, light weight, portable.
100% full load burn-in test.
2 years warranty.
| Output series: 900W Size: 230×135×70 mm Net weight: 3.5 KG | ||||||
| Input | Model | Apply to battery types | Floating V | CV (V) | CC (A) | Switching |
|
AC Input: 110 / 230V
Frequency: 47~63HZ
|
VL1240L | 12V LiFePO4 Battery |
|
14.6V | 40A | CC5~8% |
| VL1240 | 12V Lead-acid Battery | 13.5V | 14.7V | 40A | CC20% | |
| VL1440 | 14V AGM Battery | 13.5V | 14.4V | 40A | CC20% | |
| VL1640L | 16V LiFePO4 Battery |
|
18.2V | 40A | CC5~8% | |
| VL2425LM | 24V Li-MnO2 Battery |
|
29.4V | 25A | CC5~8% | |
| VL2425L | 24V LiFePO4 Battery |
|
29.2V | 25A | CC5~8% | |
| VL2425 | 24V Lead-acid Battery | 27.6V | 29.4V | 25A | CC20% | |
| VL3618LM | 36V Li-MnO2 Battery |
|
42V | 18A | CC5~8% | |
| VL3618L | 36V LiFePO4 Battery |
|
43.8V | 18A | CC5~8% | |
| VL3618 | 36V Lead-acid Battery | 41.4V | 44.1V | 18A | CC20% | |
| VL4815LM | 48V Li-MnO2 Battery |
|
54.6V | 15A | CC5~8% | |
| VL4815L | 48V LiFePO4 Battery |
|
43.8V | 15A | CC5~8% | |
| VL4815 | 48V Lead-acid Battery | 55.2V | 58.8V | 15A | CC20% | |
| VL6012L | 60V LiFePO4 Battery |
|
73V | 12A | CC5~8% | |
| VL6012 | 60V Lead-acid Battery | 67.5V | 73.5V | 12A | CC20% | |
| VL7210L | 72V LiFePO4 Battery |
|
87.6V | 10A | CC5~8% | |
| VL7210 | 72V Lead-acid Battery | 81V | 88.2V | 10A | CC20% | |
|
|
VL8408L | 84V LiFePO4 Battery |
|
102.2V | 8A | CC5~8% |
|
|
VL8408 | 84V Lead-acid Battery | 94.5V | 102.9V | 8A | CC20% |
|
Note: customized input / output / plug type / connectors are available. |
||||||

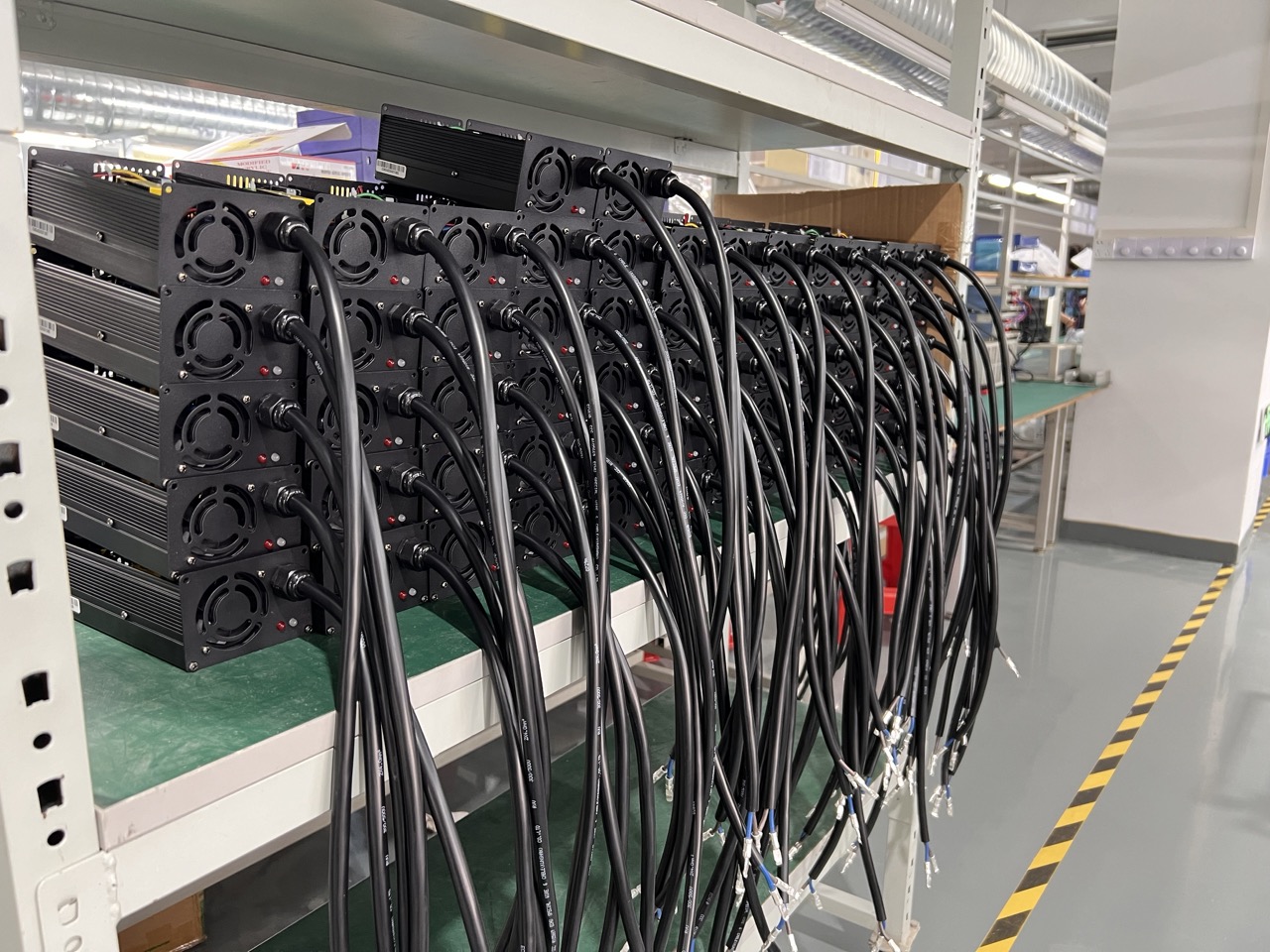

Factory pictures:
