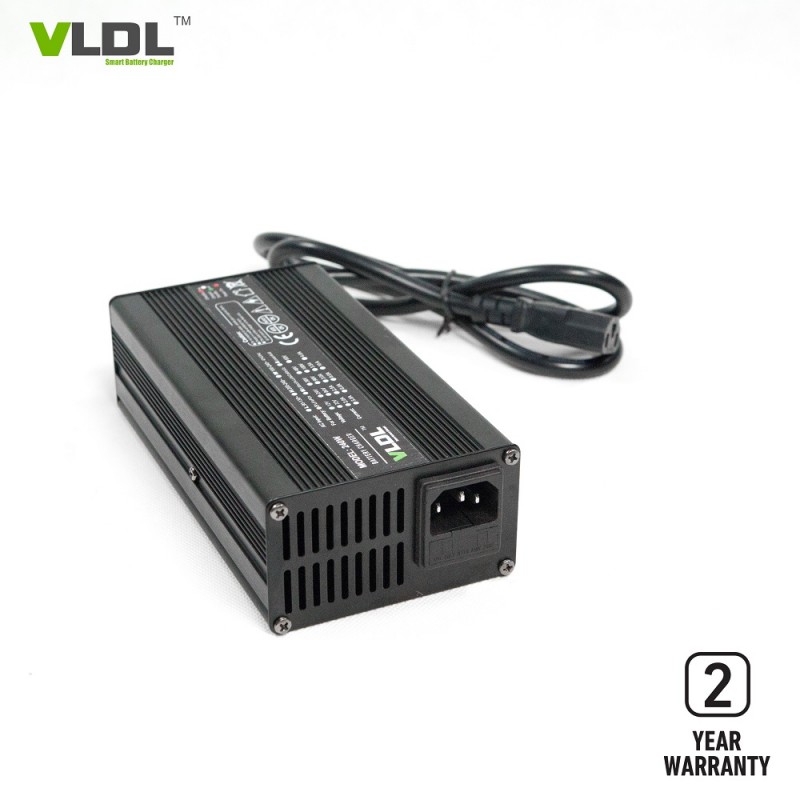

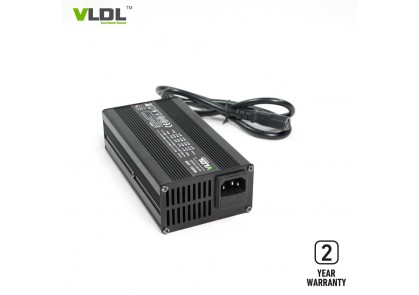

96V 2A max 117.6V Lead Acid Battery Charger

Smart 96V 2A max 117.6V Lead Acid Battery Charger

Brief Description:

Smart 96V 2A Lead-Acid battery charger, worldwide 110-230V input, 4 step charging for lithium or lead acid battery. Max 117.6V smart charging voltage for 96V SLA, AGM, GEL and 116.8V or customized for lithium (LiFePO4, Li-ion, LiMO2) battery packs. Automatic 4 steps transition of pre-charge, CC, CV and floating / trickle or shut off. Aluminum housing, light weight and portable. 2 years warranty, high quality.

Features:

◆ Advanced high frequency switching mode power supply technology.

◆ DC output isolated from AC input.

◆ Auto worldwide Input 110 / 230Vac (90 ~ 264Vac), 50Hz~60Hz.

◆ Charging parameters are insensitive to the AC input line voltage variations.

◆ Completely automatic battery charging: Pre-charging, CC, CV, Absorption, Float or Cut-off.

◆ 2 LEDs: LED1 Red (power on), LED2 Red / green (charging/full)..

◆ Possibility to customize charging curve for request.

◆ Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.

◆ Efficiency > 90%.

◆ Forced ventilation with fans.

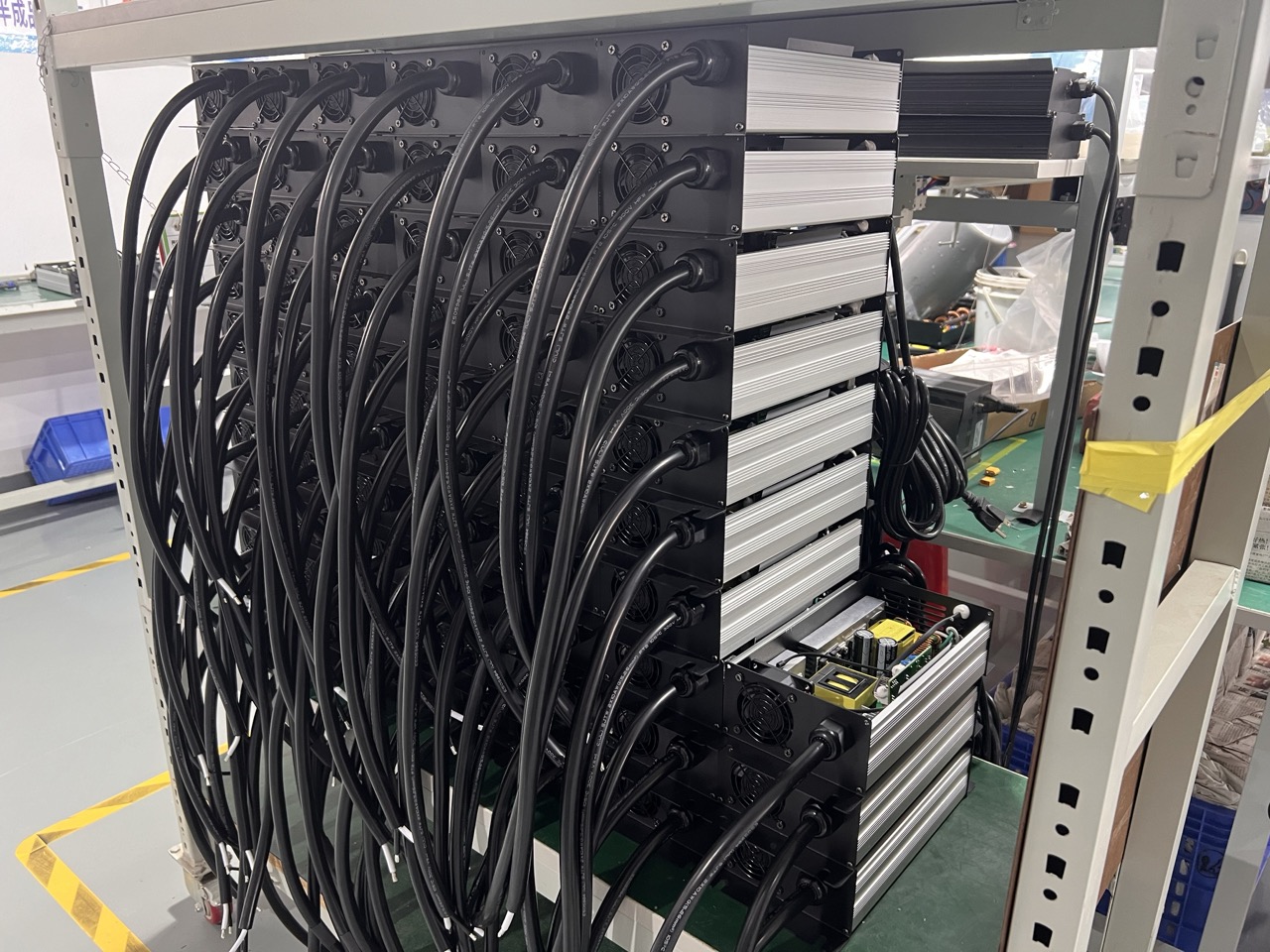

◆ 100% full load burn-in test.

◆ Aluminum casing, light weight, portable.

Technical Specs.:

1) Dimensions(LxWxH): 190 x 90 x 50 mm

2) Net weight: 1.2 KG

3) Max charging voltage(CV): 117.6 volts or customize by battery cells

4) Floating voltage: 110.4V

5) Max output current (CC): 2 amps

6) Charging method: Pre-charge, CC, CV, floating

7) AC input voltage: 110 - 230Vac worldwide

8) AC input freq.: 50 / 60 Hz

9) AC plug: customized by user’s country

10) Output connector type: customized by applications

11) Enclosure: Aluminum

We customize charging steps by your battery or technical requests. Meet your unique battery charging parameter, safe charging and smart charging.
