96V 2A Li-ion Battery Charger

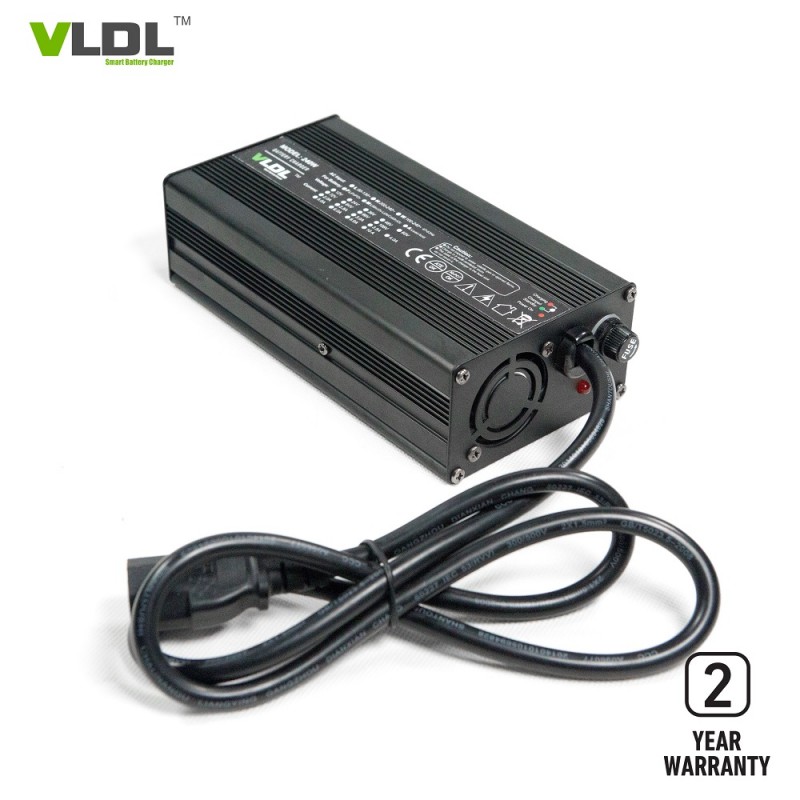

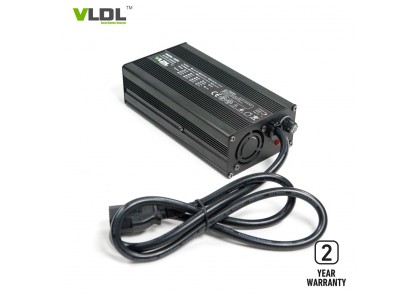

Smart 96V 2A Li-ion Battery Charger

Brief Description:

Smart 96V 2A Li-ion battery charger, designed for Electric Bikes, worldwide 110-230V input, 4 step charging for lithium or lead acid battery. Customized with max 109.2Vdc or 110Vdc for lithium (LiFePO4, Li-ion, LiMO2) battery packs. Automatic 4 steps transition of pre-charge, CC, CV and floating / trickle or shut off. Aluminum housing, light weight and portable. 2 years warranty, high quality.

Features:

◆ Advanced high frequency switching mode power supply technology.

◆ DC output isolated from AC input.

◆ Auto worldwide Input 110-230Vac (90 ~ 264Vac), 50Hz~60Hz.

◆ Charging parameters are insensitive to the AC input line voltage variations.

◆ Completely automatic battery charging: Pre-charging, CC, CV, Absorption, Float or Cut-off.

◆ 2 LEDs: LED1 Red (power on), LED2 Red / green (charging/full)..

◆ Possibility to customize charging curve for request.

◆ Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.

◆ Efficiency > 95%.

◆ Forced ventilation with fans.

◆ 100% full load burn-in test.

◆ Aluminum casing, light weight, portable.

Technical Specs.:

Dimensions(LxWxH): 190 x 90 x 50 mm

2) Net weight: 1.2 KG

3) Max charging voltage(CV): 109.2V / 116.8 / 117.6 volts or customize by battery cells

Max output current (CC): 2 amps

Charging method: Pre-charge, CC, CV, floating / trickle or shut off

AC input voltage: 110-230Vac worldwide

AC input freq.: 50/60 Hz

AC plug: customized by user’s country

Output connector type: customized by applications

Enclosure: Aluminum

Charging Curve:
