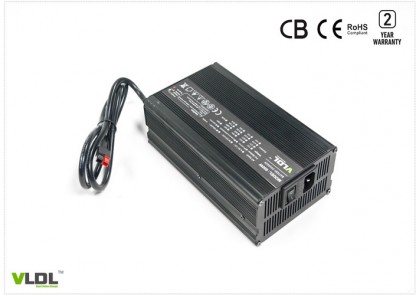

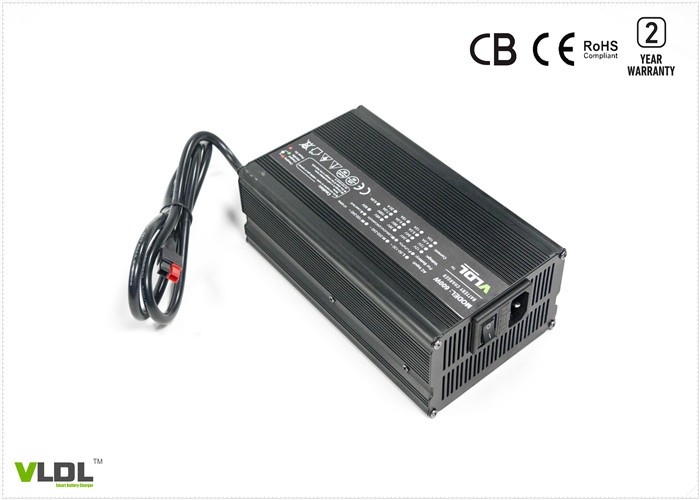

84V5A Li Battery Charger
Color Option: Silver or black
Applied to battery types : 84V 28S LiFePO4, Li-ion or Li-Polymer
Charging EV types: E-scooters, E-motorcycles
Size: 220 x 120 x 70 mm
Input 110/230Vac with PFC, max 103V 5Amps smart charging
- Product Details
Input 110/230Vac with PFC, max 103V 5Amps smart charging.
84V 5A Li Battery Charger Features:
◆ Advanced high frequency switching mode power supply technology.
◆ DC output isolated from AC input.
◆ Auto worldwide Input 110/230Vac(90~264Vac), 50Hz~60Hz.
◆ Charging parameters are insensitive to the AC input line voltage variations.
◆ Completely automatic battery charging: Pre-charging, CC, CV, Absorption, Float or Cut-off.
◆ 2 LEDs: LED1 Red (power on), LED2 Red/green (charging/full)..
◆ Possibility to customize charging curve for request.
◆ Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.
◆ Efficiency > 95%.
◆ Forced ventilation with fans.
◆ 100% full load burn-in test.
◆ Aluminum casing, light weight, portable.
