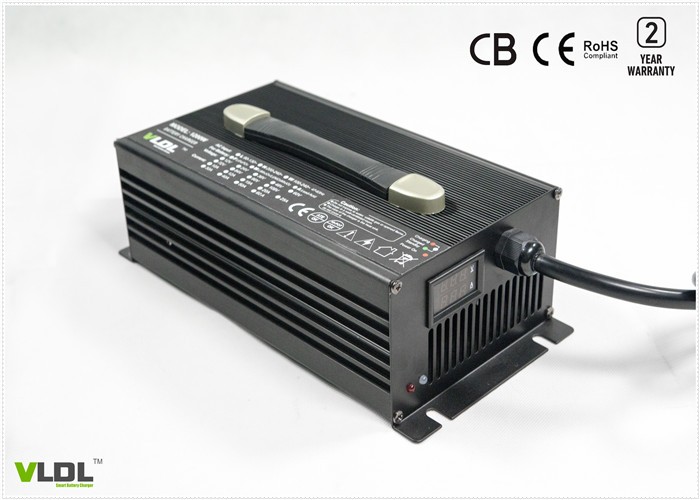

84V 10A Battery Charger
Color Option: Silver
Applied to battery types : 84V Lead-acid, AGM, GEL
Charging method: Pre-charge, CC, CV and floating
Size: 260 x 150 x 90 mm
Input 110Vac or 230Vac, rated 84V, max 103V 10Amps smart charging
- Product Details
Features:
◆ Advanced high frequency switching mode power supply technology.
◆ DC output isolated from AC input.
◆ Auto worldwide Input 110Vac or 230Vac, 50Hz~60Hz.
◆ Charging parameters are insensitive to the AC input line voltage variations.
◆ Completely automatic battery charging: Pre-charging, CC, CV, Absorption, Float or Cut-off.
◆ 2 LEDs: LED1 Red (power on), LED2 Red/green (charging/full)..
◆ Possibility to customize charging curve for request.
◆ Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.
◆ Efficiency > 95%.
◆ Forced ventilation with fans.
◆ 100% full load burn-in test.
◆ Aluminum casing, light weight, portable.
