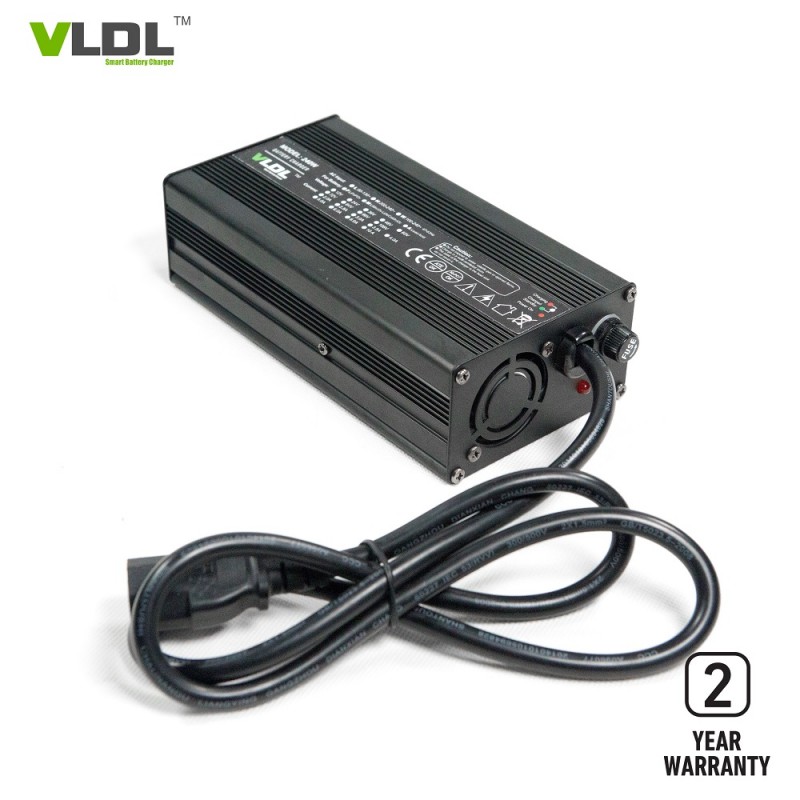

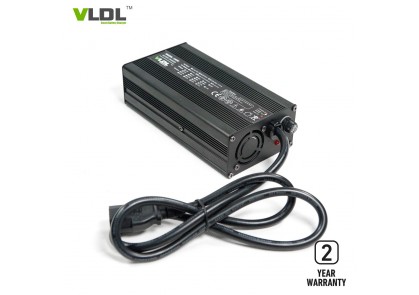

84V 2A Lead Acid Battery Charger

84V 2A Lead-Acid Battery Charger, 2 Years Warranty with High Quality

Descriptions:

Designed for 84V lead-acid battery. Input with 110 or 230Vac and rated output voltatge is 84V 2A. Smart max charging voltage is 102.9V for Lead-acid batteries. Intelligent 4 steps charging with pre - charge, CC, CV and floating or automatic cut-off, this charger will charge your E-motorcycles / E-Scooters battery very fast, with high efficiency and protect your battery life to the maximum. High quality, factory price and 2 years warranty. As original battery chargers supplier / manufacturer / factory, Danl provide full charging solution for your EV products.

Specifications:

AC input voltage: 110 or 230Vac

AC input freq.: 50 / 60 Hz

Rated output: 84V 2Amps

Max charging voltage: 102.9V

Dimensions(LxWxH): 170 x 90 x 50 mm

Net weight: 1.2 KG

Housing: Aluminum

Color: silver or black

Techonolgy:

High Frequency Switching Mode Power Supply

Smart MCU contolled

Protections:

Short circuit, Over-voltage, Over-temperature, Reverse Polarity.

Warranty:

Fully 2-year warranty with Free Replacing Policy.

Resposing in 24 hours after getting failed product report from customers.

Applications:

Charging 84V Lead-acid Battery Powerd Electric Motorcycles / Scooters.

Special Function For EV:

1) In-lock signal is available: EV can't start when charging.

2) Remote signal wire is available for connecting control digital display board.

Charging method:

For Lead-acid Battery: pre-charge, CC, CV, floating.

For Lithium Battery: pre-charge, CC, CV, auto cut-off.

Input Plug & Output Connector:

We supply different plugs and connecotor by customer's applications.

Output series: 240W       Size: 170×90×50 mm       Net weight: 1.2 KG
Input	Model	Apply to battery types	Floating V	CV (V)	CC (A)	Switching
AC Input: 110 / 230V Frequency: 47~63HZ	VL1210L	12V LiFePO4 Battery		14.6V	10A	CC5~8%
	VL1210	12V Lead-acid Battery	13.5V	14.7V	10A	CC20%
	VL2407LM	24V Li-MnO2 Battery		29.4V	7A	CC5~8%
	VL2407L	24V LiFePO4 Battery		29.2V	7A	CC5~8%
	VL2407	24V Lead-acid Battery	27.6V	29.4V	7A	CC20%
	VL3605LM	36V Li-MnO2 Battery		42V	5A	CC5~8%
	VL3605L	36V LiFePO4 Battery		43.8V	5A	CC5~8%
	VL3605	36V Lead-acid Battery	41.4V	44.1V	5A	CC20%
	VL4804LM	48V Li-MnO2 Battery		54.6V	4A	CC5~8%
	VL4804L	48V LiFePO4 Battery		43.8V	4A	CC5~8%
	VL4804	48V Lead-acid Battery	55.2V	58.8V	4A	CC20%
	VL6003L	60V LiFePO4 Battery		73V	3A	CC5~8%
	VL6003	60V Lead-acid Battery	67.5V	73.5V	3A	CC20%
	VL72025L	72V LiFePO4 Battery		87.6V	2.5A	CC5~8%
	VL72025	72V Lead-acid Battery	81V	88.2V	2.5A	CC20%
Note: customized input / output / plug type / connectors are available.
