84V 15A Marine Lead Acid Battery Charger

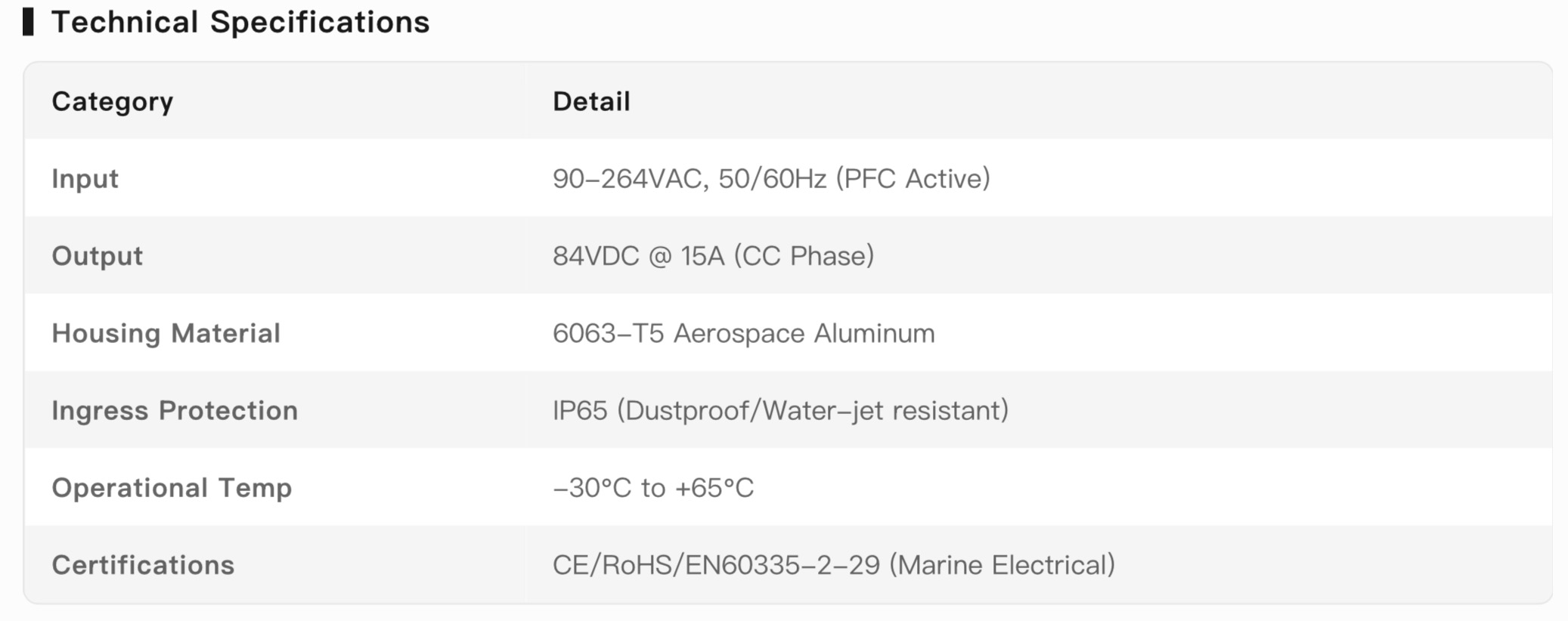

Product Description & Technical Specifications

Core Advantages
◆ Marine-Grade Durability: IP65-certified aluminum die-cast housing resistant to saltwater corrosion and dust ingress
◆ Universal Compatibility: Supports LiFePO4/lead-acid (AGM/sealed) batteries with auto-detection technology
◆ High-Efficiency Cooling: Integrated smart cooling system with 3D thermal management (42CFM airflow)
◆ Global Voltage Range: 90-264VAC input with PFC correction, delivering stable 1,533W peak output

Intelligent Charging Management
■ 4-Stage Adaptive Charging:
1. Pre-charge → 2. Constant Current (15A) → 3. Constant Voltage → 4. Float/Cut-off
■ Battery-Specific Optimization:
• 102.9V CV for lead-acid batteries
• 102.2V CV for LiFePO4 batteries
■ Custom Profiles: Programmable via RS-485/CanBus (protocol-dependent)

Protection & Reliability
✓ Triple Safety Layer:

• Short-circuit/Over-voltage/Reverse polarity protection
• Automatic load reduction at >85°C

• Conformal-coated PCB + Full galvanic isolation
• 96-hour burn-in test at 100% load

User-Centric Design
Global Plug System: Includes US/UK/EU/AU connectors (hot-swappable)
Dual-Status Indicators:

• Power (Red LED)
• Charging (Red)/Full (Green)

• 283×164×93mm (L×W×H)
• Ergonomic handles & 3.8kg lightweight body

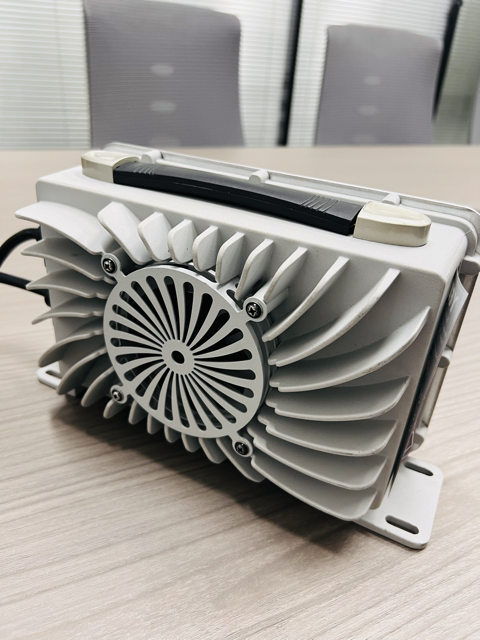

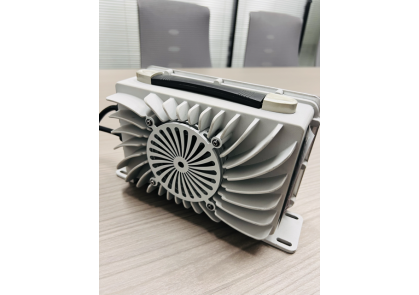

The MarinePro 84V 15A Lead Acid Battery Charger redefines rugged power delivery for marine and electric mobility applications. Featuring a milled 6063-T5 aluminum chassis with IP65 protection, this third-generation charger ("3" marked variant) integrates an enhanced cooling system combining helical finned heatsinks and a 9-blade axial fan, achieving 25% thermal improvement over previous models.

Our proprietary SmartCharge 4.0 technology employs microprocessor-controlled adaptive charging, automatically optimizing parameters for LiFePO4 (102.2V CV) and lead-acid batteries (102.9V CV). The four-stage charging algorithm ensures complete charge cycles while preventing sulfation or lithium plating, supported by real-time thermal monitoring via dual ball-bearing fans.

Key Innovations Include:
• Multi-Protocol Support: Compatible with SAE J1772 and IEC 60309-2 marine charging standards
• Shock/Vibration Resistance: MIL-STD-810G certified mounting brackets withstand 5G vibrations
• Smart Grid Interaction:** PFC-corrected input (0.99 PF) minimizes harmonic distortion

The compact 310mm-length design incorporates M8-threaded mounts for vertical/horizontal installation in engine compartments or charging stations. Dual Anderson SB175 connectors enable parallel charging at 30A total current, while the diagnostic LED array provides instant status updates - critical for offshore operations.

Tested across 1,200+ charge cycles and 50,000-hour MTBF validation, this charger delivers unmatched reliability in tidal zones (-40°C cold starts) or tropical environments (+85°C surface tolerance). Optional RS-485 connectivity allows fleet operators to monitor charging health via Modbus RTU protocols.

With its sandblasted oxidation finish (Ra ≤3.2μm) and tool-free maintenance access, the MarinePro series represents the new benchmark in maritime electrification. Each unit ships with a 3-year waterproof warranty and IECEx certification for hazardous area deployments.
