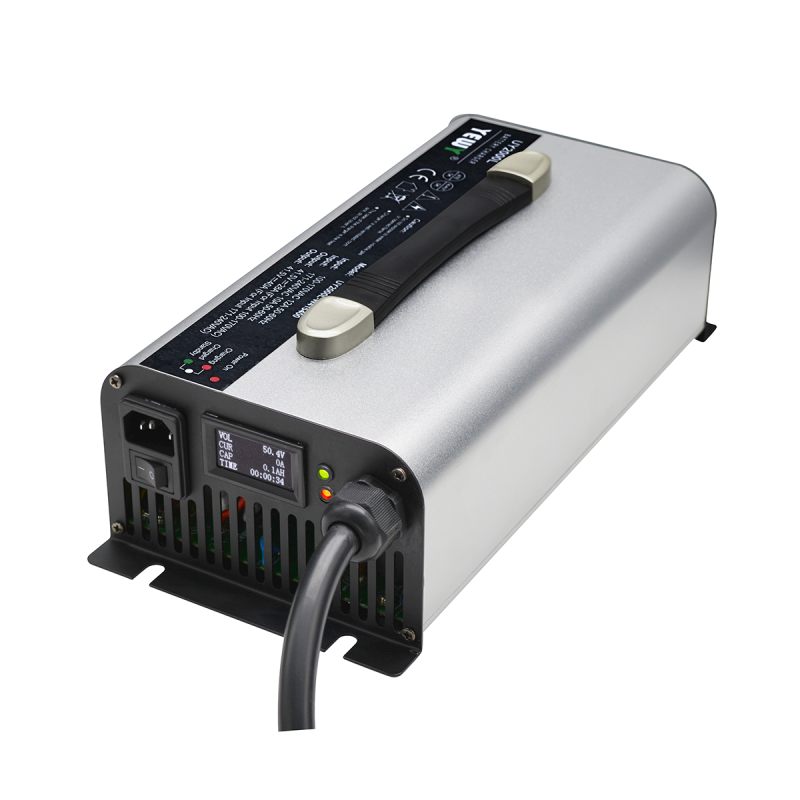

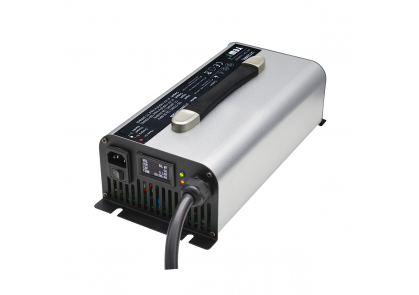

84V 14A PFC Lead Acid Battery Charger

84V 14A PFC Lead Acid Battery Charger

Working well with your battery BMS, worldwide input 110-230Vac

Brief Descriptions:

84V 14A output PFC Battery Charger.

Universal 110~230Vac input voltage with PFC.

102.9V customized max charging voltage for lead acid batteries.

LCD display of charging status.

CAN communication.

Micro-processor controlled and intelligent 4 steps charging.

92% high efficiency.

Power Factor: >0.99

2 years warranty, high quality.

Specifications:

AC input voltage: universal 90 to 264Vac with PFC

AC input freq.: 50 / 60 Hz

Rated output: 84V 14A

Max charging voltage: 102.9V

Dimensions(LxWxH): 316 x 150 x 103 mm

Net weight: 3.6 KG

Housing: Aluminum

Color: silver

Techonolgy:

High Frequency Switching Mode Power Supply

Smart MCU controlled

PFC circuit with high efficiency

Protections:

Short circuit, Over-voltage, Over-temperature, Reverse Polarity.

Warranty:

Fully 2-year warranty with Free Replacing Policy.

Resposing in 24 hours after getting failed product report from customers.

Applications:

Charging 84V AGM, GEL, SLA lead acid batteries.

Special Function For EV:

1) In-lock signal is available: EV can't start when charging.

2) Remote signal wire is available for connecting control digital display board.

Charging method:

For Lead-acid Battery: pre-charge, CC, CV, floating.

For Lithium Battery: pre-charge, CC, CV, auto cut-off.

Input Plug & Output Connector:

We supply different plugs and connector by customer's applications.

The 84V 14A PFC lead acid Battery Charger is a high-efficiency, reliable, and safe charger that is suitable for 84V lead acid battery packs. It uses power factor correction technology to automatically adjust the power factor within the input voltage range, thereby improving energy utilization and reducing energy waste.

In addition, it has multiple protection functions such as overcurrent protection, overvoltage protection, short circuit protection, etc., which can effectively protect the safety and life of the lead-acid battery pack.

The 84V 14A PFC Lead Acid Battery Charger is a high-quality product manufactured by Danl New Energy Co., Limited. It is designed to charge 84V AGM/GEL/SLA lead-acid batteries with a maximum voltage of 102.9Vdc. The charger features a universal input voltage of 110-230Vac with PFC (power factor correction) of 0.99 and advanced switching power technology.

The charger also has an LCD display for charging status and protections. It uses 4 steps charging with pre-charge, constant current, constant voltage, and floating.

Danl New Energy Co., Limited is a leading battery charger manufacturer in China that specializes in manufacturing smart lithium battery chargers and lead-acid battery chargers with output ranging from 48V4A to 84V20A. The company offers factory prices and a 2-year warranty for their products.

The 84V 14A PFC Lead Acid Battery Charger is an ideal choice for those who are looking for a reliable and efficient battery charger. With its advanced technology and high-quality components, this charger ensures that your batteries are charged quickly and safely. The LCD display provides real-time information on the charging status and protections, making it easy to monitor the charging process.

In addition to its technical features, the 84V 14A PFC Lead Acid Battery Charger is also designed with user convenience in mind. Its compact size makes it easy to store and transport, while its universal input voltage means that it can be used in different countries around the world.

Overall, the 84V 14A PFC Lead Acid Battery Charger is an excellent product that offers high-quality performance at an affordable price. Whether you are a professional or a hobbyist, this charger is sure to meet your needs and exceed your expectations.
