84V 13A Waterproof Battery Charger
Item No.: VL8413LWP
Dimension: 310*230*101 mm
N.W: 8.0 KG
Input voltage: wide 90~264Vac
Case material: sealed aluminum
WaterProof rate: IP65
Output rated: 84V 13Amps
Max charging: 102.9V / 102.2V customized
Applied to battery Types: 84V Lithium Battery
Smart Charging: Automatic Pre-charge, CC and CV
- Product Details

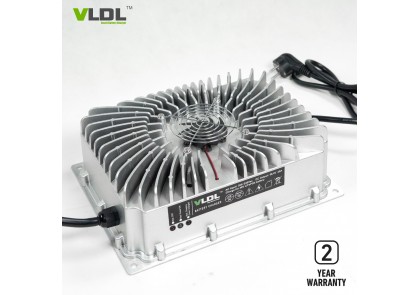

IP65 WaterProof Battery Charger 84V 13A
Brief Descriptions:
Marine Battery Charger 84V 13A with IP65 rate waterproof, is designed for lithium or lead acid (AGM, sealed) battery powered electric cars or boat appliecation, input with PFC worldwide 90~264Vac and rated output voltatge is 84V 13A. Max 102.2V for Li-ion batteries. MCU coutrolled and intelligent 4 steps charging with pre-charge, CC, CV and floating or automatic cut-off, this charger will charge your electric motorcycless very fast, with high efficiency.
Features:
Advanced high frequency switching mode power supply technology.
DC output isolated from AC input.
Auto worldwide Input 110 / 230Vac (90 ~ 264Vac) with PFC, 50Hz ~ 60Hz.
Charging parameters are insensitive to the AC input line voltage variations.
Completely automatic battery charging: Pre - charging, CC, CV, Absorption, Float or Cut - off.
2 LEDs: LED1 Red (power on), LED2 Red/green (charging/full)..
Possibility to customize charging curve for request.
Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.
Efficiency > 95%.
Forced ventilation with fans.
100% full load burn-in test.
Aluminum casing, light weight, portable, on-board.
Technical Specs.:
Dimensions(LxWxH): 310 × 230 × 101 MM
Net weight: 8.0 KG
Max charging voltage(CV): 102.2 / 102.9 volt (customized)
Max output current (CC): 13 amps
Charging method: Pre-charge, CC, CV
AC input voltage: 90-264 Vac universal
AC input freq.: 50 / 60 Hz
AC plug: custom-made
Output connector type: customized by applications
Enclosure: Aluminum
Waterproof rate: IP65
| 1,500W waterproof charger Size: 310×230×101 mm Net weight: 8.0 KG | |||||||
| Input | Model | Apply to battery types | Floating V | CV (V) | CC (A) | Switching | |
|
PFC AC Input: 90 - 264V
Frequency: 47~63HZ
|
VL1260LMWP | 12V LiFePO4 Battery |
|
14.6V | 80A | CC5~8% | |
| VL1260WP | 12V Lead-acid Battery | 13.5V | 14.7V | 80A | CC20% | ||
| VL1460WP | 14V AGM Battery | 13.5V | 14.4V | 80A | CC20% | ||
| VL1660LWP | 16V LiFePO4 Battery |
|
18.2V | 80A | CC5~8% | ||
| VL2445LMWP | 24V Li-MnO2 Battery |
|
29.4V | 45A | CC5~8% | ||
| VL2445LWP | 24V LiFePO4 Battery |
|
29.2V | 45A | CC5~8% | ||
| VL2445WP | 24V Lead-acid Battery | 27.6V | 29.4V | 45A | CC20% | ||
| VL3630LMWP | 36V Li-MnO2 Battery |
|
42V | 30A | CC5~8% | ||
| VL3630LWP | 36V LiFePO4 Battery |
|
43.8V | 30A | CC5~8% | ||
| VL3630WP | 36V Lead-acid Battery | 41.4V | 44.1V | 30A | CC20% | ||
| VL4825LMWP | 48V Li-MnO2 Battery |
|
54.6V | 25A | CC5~8% | ||
| VL4825LWP | 48V LiFePO4 Battery |
|
43.8V | 25A | CC5~8% | ||
| VL4825WP | 48V Lead-acid Battery | 55.2V | 58.8V | 25A | CC20% | ||
| VL6020LWP | 60V LiFePO4 Battery |
|
73V | 20A | CC5~8% | ||
| VL6020WP | 60V Lead-acid Battery | 67.5V | 73.5V | 20A | CC20% | ||
| VL7215LWP | 72V LiFePO4 Battery |
|
87.6V | 15A | CC5~8% | ||
| VL7215WP | 72V Lead-acid Battery | 81V | 88.2V | 15A | CC20% | ||
| VL8413LWP | 84V LiFePO4 Battery |
|
102.2V | 13A | CC5~8% | ||
| VL8413WP | 84V Lead-acid Battery | 94.5V | 102.9V | 13A | CC20% | ||
| VL9612LWP | 96V LiFePO4 Battery |
|
116.8V | 12A | CC5~8% | ||
| VL9612WP | 96V Lead-acid Battery | 108V | 117.6V | 12A | CC20% | ||
| Note: customized input / output / plug type / connectors are available. | |||||||
DANL designed this battery charger with IP65 waterproof rate for outdoor and wet environment using. This 84V 20A waterproof charger is much better than normal chargers for bad environment, it is dust-resit and water-resit. Fully sealed with max output power 1500 Watt, high power but light weight and small size.
Input voltage 110-230Vac worldwide, don't need to worry you purchase the wrong input voltage charger. Use it anywhere on the planet. Smart charging with 4 steps, pre-charge, constant current, constant voltage and floating / automatic cut-off. Charger detects battery's status automatically and then decides to charge with which steps, protecting your lithium or lead-acid battery in maximum.
Max charging voltage is 102.2V or 102.9Vdc, we customize this voltage by your battery's specifications and make sure our charger can meet your batteries in maximum. Our charger can prolong your battery life. 20 Amps large current charging can shorten the charge time.
Aluminum casing and only 8 KG with size 310*230*101 mm. Warranty 2 years.
