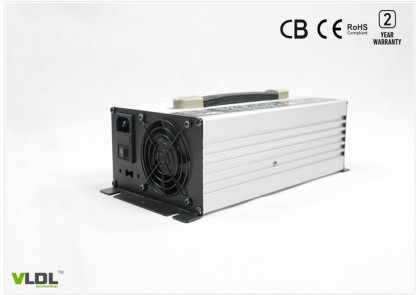

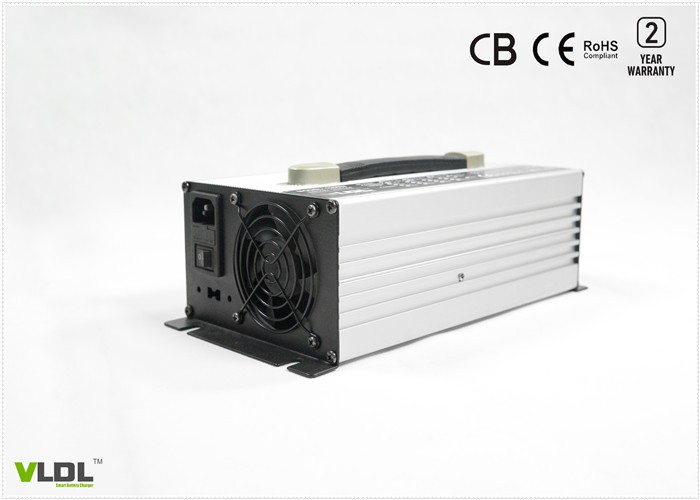

84V 10A Li Battery Charger
Item No.: VL8410L
Color Option: Silver
Charging method: Pre-charge, CC, CV and Automatic Cut-off
Applied to battery types : 84V LiFePO4, Li-ion or Li-Polymer
LCD display of charging voltage and current
Size: 260x 150 x 90mm
Input 110/230Vac, rated 84V, max 103V 10Amps smart charging.
- Product Details
Input 110/230Vac, rated 84V, max 103V 10Amps smart charging.
Features:
◆ Advanced high frequency switching mode power supply technology.
◆ DC output isolated from AC input.
◆ Auto worldwide Input 110/230Vac(90~264Vac), 50Hz~60Hz.
◆ Charging parameters are insensitive to the AC input line voltage variations.
◆ Completely automatic battery charging: Pre-charging, CC, CV, Absorption, Float or Cut-off.
◆ 2 LEDs: LED1 Red (power on), LED2 Red/green (charging/full)..
◆ Possibility to customize charging curve for request.
◆ Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.
◆ Efficiency > 95%.
◆ Forced ventilation with fans.
◆ 100% full load burn-in test.
◆ Aluminum casing, light weight, portable.
