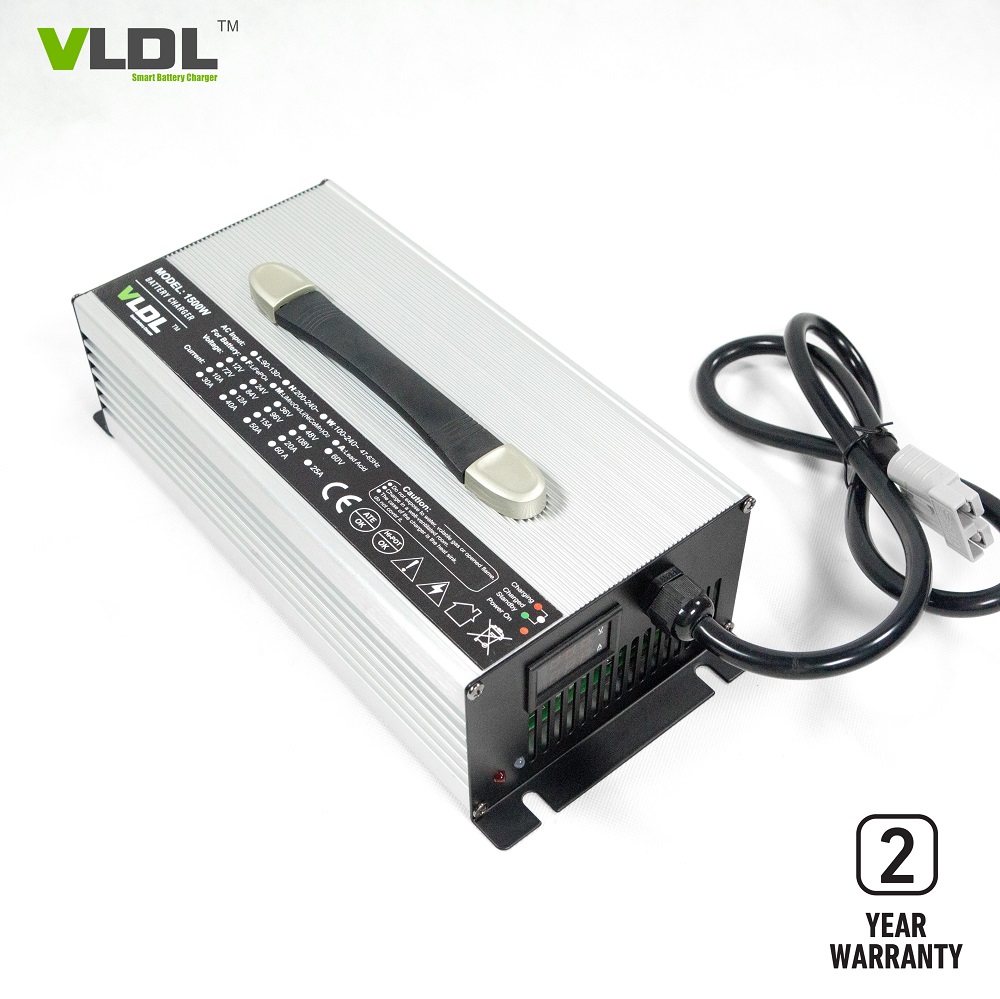

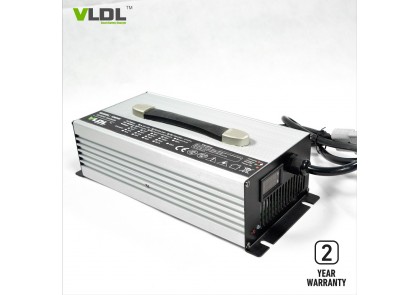

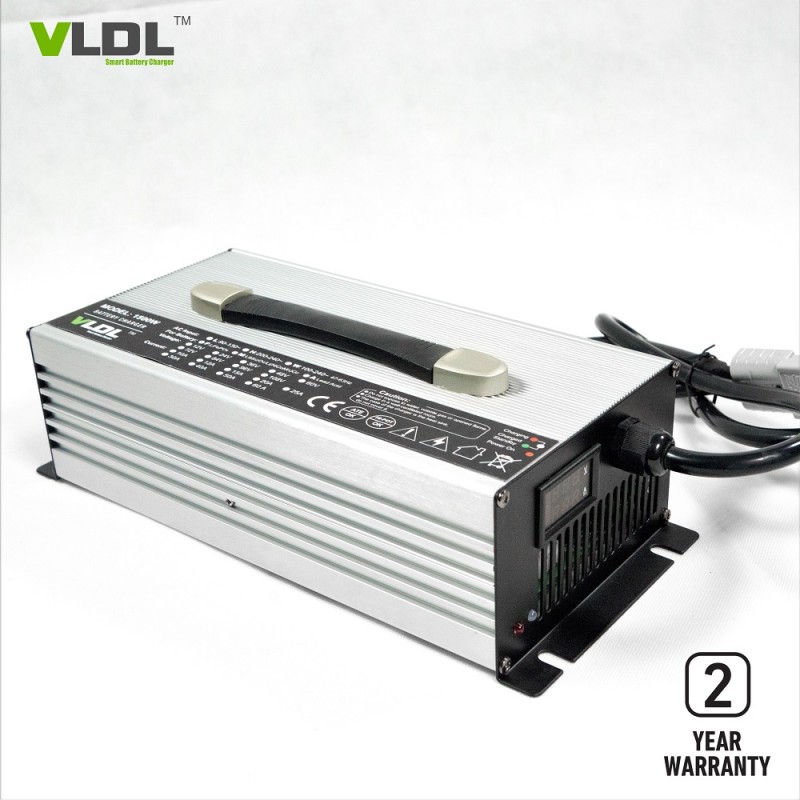

72V20A SLA Battery Charger
Color Option: Black
Applied to battery types : 72V SLA, AGM, GEL
Charging EV types: E-cars
Charging method: Pre-charge, CC, CV and Automatic Cut-off
Size: 330 x 150 x 90 mm
Input 110 or 230Vac, max 88.2V 20Amps smart charging.
- Product Details
Technical Specs.:
1) Dimensions(LxWxH): 330 x 150 x 90 mm
2) Net weight: 6.5 KG
3) Max charging voltage(CV): 87.6 / 88.2 volts
4) Floating voltage: custom-made
5) Max output current (CC): 20/22 amps
6) Charging method: Pre-charge, CC, CV, floating / trickle or shut off
7) AC input voltage: 230Vac
8) AC input freq.: 50 / 60 Hz
9) AC plug: custom-made
10) Output connector type: customized by applications
11) Enclosure: Aluminum
Features:
◆ Aluminum housing, light weight, portable.
