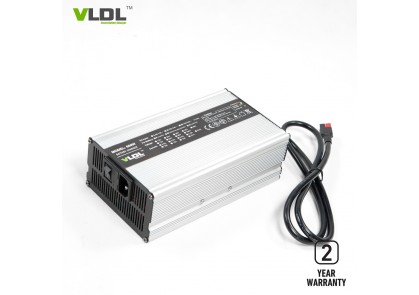

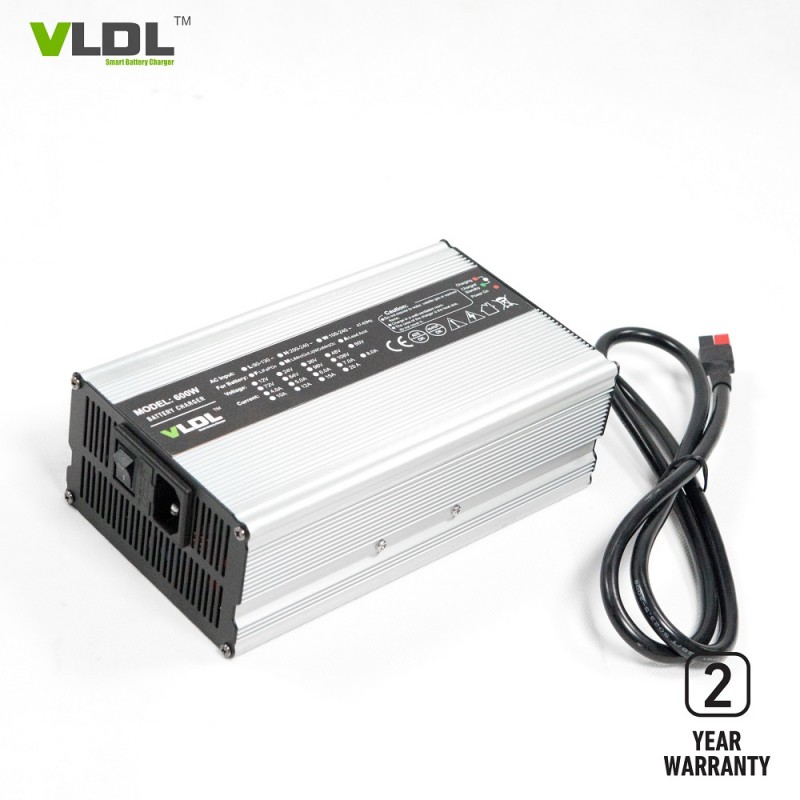

72V 5A E-scooter Battery Charger

72V 5A Lithium Battery Charger For E-Scooters

Brief Description:

72V 5Amps intelligent battery charger is designed for lithium ion or lead acid battery, input with worldwide 110 to 230Vac and rated output voltatge is 72 Volt 5 amps. Smart max charging voltage is 88.2V for lead acid type batteries and 87.6V for LiFePO4 batteries. Intelligent 4 steps charging with pre-charge, CC, CV and floating or automatic cut-off, this charger will charge your batteries with very fast speed, with high efficiency and pretect your battery life maximumly. Aluminum housing, light weight and portable.

Technical Specs.:

1) Dimensions(LxWxH): 230 x 120 x 70 mm

2) Net weight: 2.5 KG

3) Max charging voltage(CV): 87.6 volts

4) Floating voltage: /

5) Max output current (CC): 5 amps

6) Charging method: pre-charge, CC, CV, floating / trickle or shut off

7) AC input voltage: 110 - 230Vac PFC

8) AC input freq.: 50 / 60 Hz

9) AC plug: UK, US, AU, EU, etc.

10) Output connector type: Clips, Anderson, XLR, etc.

11) Enclosure: Aluminum

72V 5A Battery Charger Features:

◆ Advanced high frequency switching mode power supply technology.

◆ DC output isolated from AC input.

◆ Auto worldwide Input 110/230Vac(90~264Vac), 50Hz~60Hz.

◆ 48V 10A Battery Charging parameters are insensitive to the AC input line voltage variations.

◆ Completely automatic battery charging: Pre-charging, CC, CV, Absorption, Float or Cut-off.

◆ 2 LEDs: LED1 Red (power on), LED2 Red/green (charging/full)..

◆ Possibility to customize charging curve for request.

◆ Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.

◆ Efficiency > 95%.

◆ Forced ventilation with fans.

◆ 100% full load burn-in test.

◆ Aluminum casing, light weight, portable.
