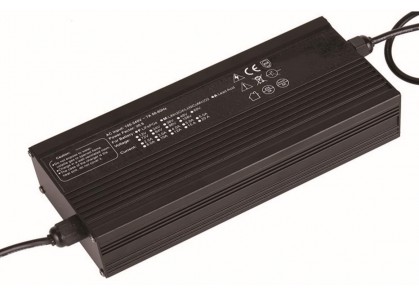

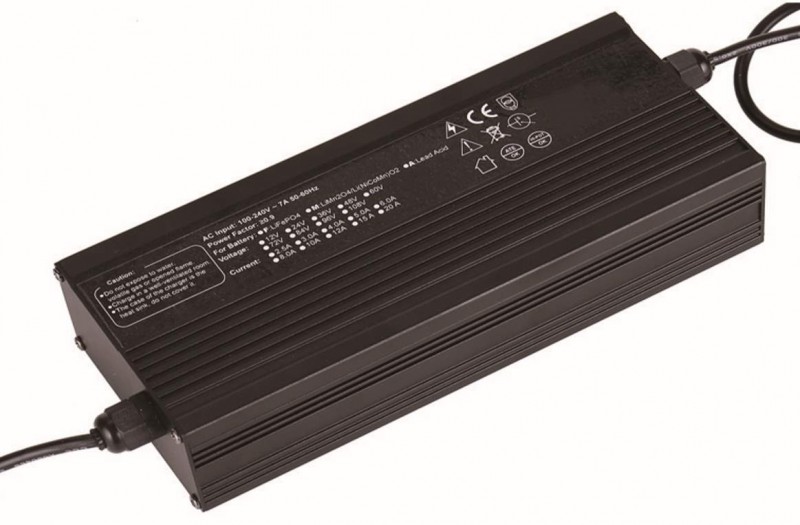

72V 4A Waterproof Battery Charger
Color Option: Black
IP rate: IP65 / IP66
Size: 220 x 93 x 49 mm
Output power series: 360W
Input: wide 110-230Vac with PFC
Max Charging: 84V / 87.6V / 88.2V, 4A
Charging method: Automatic CC, CV and Floating
Applied to Battery Types: Lead-acid or Lithium Battery
Warranty: 2 Years
- Product Details
72V 4A Waterproof / Marine Battery Charger
Brief Descriptions:
72V 4A output Marine Battery Charger.
IP65 / IP66 Waterproof Rate Rate.
Universal 90~264Vac input voltage with PFC.
84V / 87.6V / 88.2V customized max charging voltage for Lithium / lead-acid batteries.
Micro-processor controlled and intelligent 4 steps charging。
92% high efficiency.
2 years warranty, high quality.
Spcifications:
Item No.: 360LP-7204
Dimension: 220*93*49mm.
Gross weight: 2.8kg.
Input voltage: wide 90~264Vac.
Output rated: 72Vdc 4Amps.
Max charging: customized 84V / 87.6V / 88.2V
Applied to battery Types: 36V Lithium-ion, LiFePO4, LiMnO2 battery.
Smart Charging: Auto. Pre-charge, CC, CV, Floating or Cut-off.
Advantages:
Smart and Advanced Charging Controls:
You can decide your battery charger's charging steps, pre-charging with small current,
constant current charging,constant voltage charging, floating charging or automatically cut-off
when it's fully charged.
CAN communication option:
We can add CAN bus for communication. Controlled by software for starting and charging.
Read all information by CAN bus port and communicate with your battery's BMS.
Dual input voltages:
Just plug the AC plug to the wall socket, our charger will detect voltage 110V or 230V automatically.
No need to choose by hand! No worry for wrong input voltage to break charger.
Automatic detecting and charging:
After setting right charging voltage and steps, our charger will run automatically, just leave it alone.
Automatic detecting battery's voltage and charging status, stop and re-charging by itself.
No worry for over-charging, no need to operate it again and again.
High quality, free replacing in 2 years:
We only provide high quality product, so we guarantee 2 years free replacing warranty policy.
There are no other suppliers have the same policy. But we have confidence to provide.
