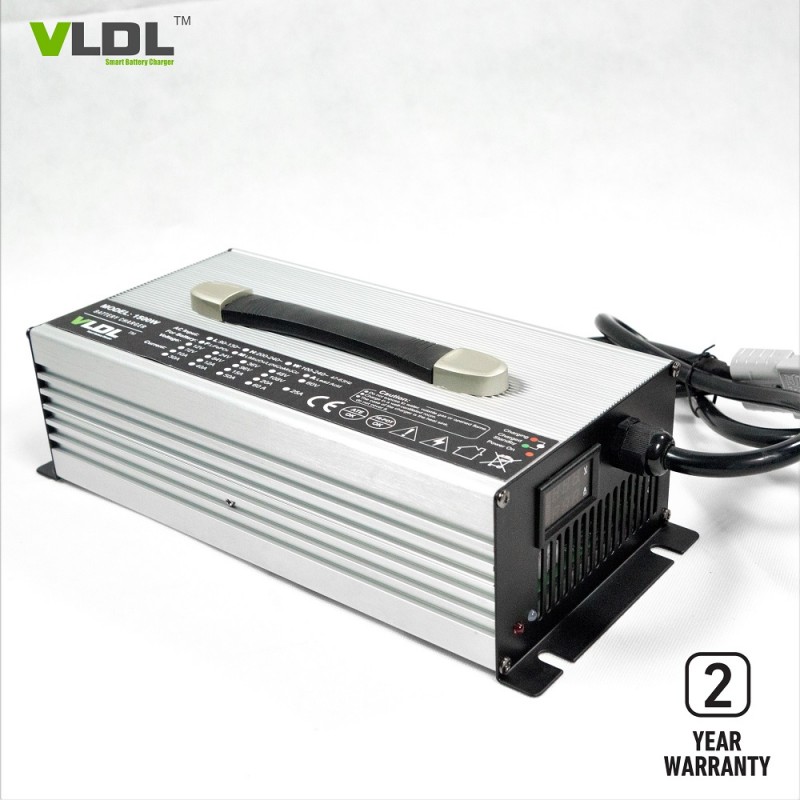

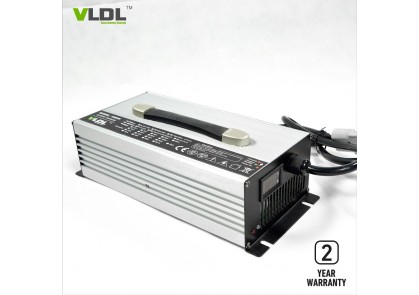

72V 25A Smart Li-ion Battery Charger

72V 25A Smart Li-ion Battery Charger

Brief Descriptions

72V 25A smart lithium battery charger, input with single 110V or 230Vac and rated output voltage is 72V 25A. Smart customized max charging voltage is 84V or 87.6V or 88.2V for Li-ion, LiFePO4,LiMnO2 batteries. Intelligent 4 steps charging with pre-charge, CC, CV or Cut-off, this charger will charge your battery powered electric vehicles very fast and safe (automatic lockout when charging), with high efficiency and protect your battery life to the max. High quality, factory price and 2 years warranty.

Features

Optional charging methods: Lithium or AGM batteries.

Advanced high frequency switching mode power supply technology.

DC output isolated from AC input.

AC input 110 or 230Vac(90~264Vac), 50Hz~60Hz.

Charging parameters are insensitive to the AC input line voltage variations.

Completely automatic 4 steps charge: pre-charge, CC, CV, floating/trickle or shut-off.

Protections: Short circuit, Over - voltage, Over - temperature, Reverse Polarity.

Aluminum casing, light weight, portable.

100% full load burn-in test.

2 years warranty.

Technical Specs.:

Dimensions(LxWxH): 380 x 150 x 90 mm

Net weight: 5.5 KG

Max charging voltage(CV): 84V or 87.6V or 88.2V customized

Max output current (CC): 25 amps

Charging method: Automatic CC, CV and Cut-off

AC input voltage: Single 110 / 230Vac

AC input freq.: 50 / 60 Hz

AC plug: UK, EURO, US, AU, INDIA ETC.

Output connector type: Clips, Anderson etc.

Enclosure: Aluminum
