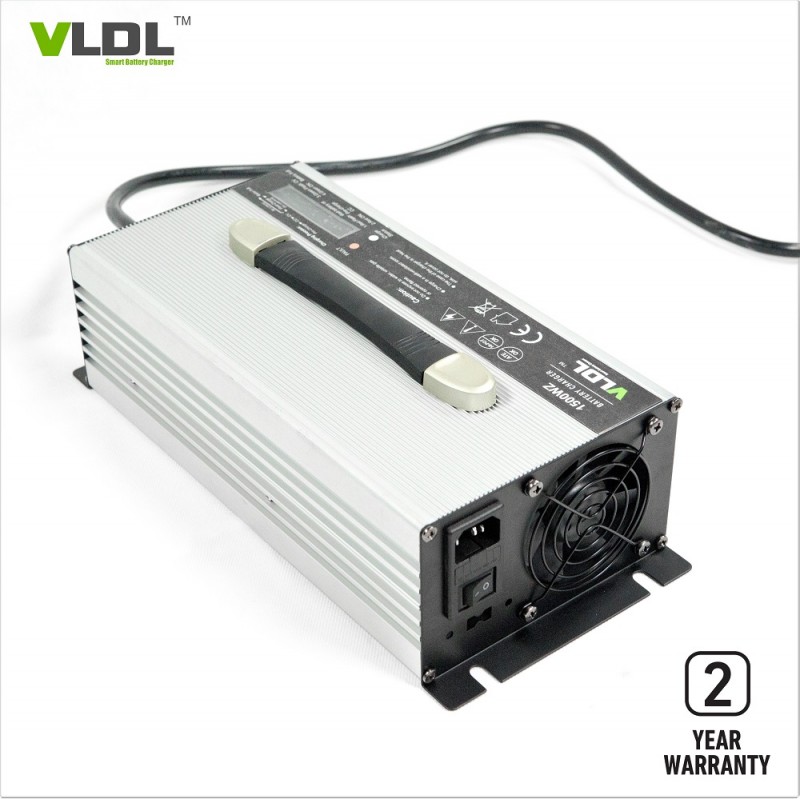

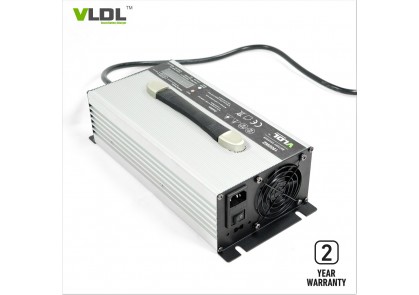

72V 25A lithium battery charger
Item No.: VL7225L
Size: 380 x 150 x 90 mm
Net weight: 5.5 KG
Case: Aluminum
AC input voltage: Single 110 or 230Vac
AC input freq.: 50 / 60 Hz
Output-rated: 72V 25A
Max charging voltage: 87.6Vdc or 84V
Charging method: Automatic CC, CV
Warranty: 2 Years
- Product Details
72V 25A Smart Battery Charger for Lithium ion battery
Brief Descriptions
72V 25A smart lithium battery charger, input with single 110V or 230Vac and rated output voltage is 72V 25A. Smart max charging voltage is 84V or 87.6V for Li-ion, LiFePO4,LiMnO2 batteries. Intelligent 4 steps charging with pre-charge, CC, CV or Cut-off, this charger will charge your battery powered electric vehicles very fast and safe (automatic lockout when charging), with high efficiency and protect your battery life to the max. High quality, factory price and 2 years warranty.
Features
Optional charging methods: Lithium or AGM batteries.
Advanced high frequency switching mode power supply technology.
DC output isolated from AC input.
Automatic worldwide Input 110/230Vac(90~264Vac), 50Hz~60Hz.
Charging parameters are insensitive to the AC input line voltage variations.
Completely automatic 4 steps charge: pre-charge, CC, CV, floating/trickle or shut-off.
Protections: Short circuit, Over - voltage, Over - temperature, Reverse Polarity.
Aluminum casing, light weight, portable.
100% full load burn-in test.
2 years warranty.
Technical Specs.:
Dimensions(LxWxH): 380 x 150 x 90 mm
Net weight: 6.5 KG
Max charging voltage(CV): 84 or 87.6 volt
Max output current (CC): 25 amps
Charging method: Automatic CC, CV, Floating
AC input voltage: Single 110 / 230Vac
AC input freq.: 50 / 60 Hz
AC plug: UK, EURO, US, AU, INDIA ETC.
Output connector type: Clips, Anderson etc.
Enclosure: Aluminum
| Output series: 2,500W Size: 380×150×90 mm Net weight: 7.0 KG | ||||||
| Input | Model | Apply to battery types | Floating V | CV (V) | CC (A) | Switching |
|
AC Input: 110 / 230V
Frequency: 47~63HZ
|
VL1290L | 12V LiFePO4 Battery |
|
14.6V | 90A | CC5~8% |
| VL1290 | 12V Lead-acid Battery | 13.5V | 14.7V | 90A | CC20% | |
| VL1490 | 14V AGM Battery | 13.5V | 14.4V | 90A | CC20% | |
| VL1690L | 16V LiFePO4 Battery |
|
18.2V | 90A | CC5~8% | |
| VL2465LM | 24V Li-MnO2 Battery |
|
29.4V | 65A | CC5~8% | |
| VL2465L | 24V LiFePO4 Battery |
|
29.2V | 65A | CC5~8% | |
| VL2465 | 24V Lead-acid Battery | 27.6V | 29.4V | 65A | CC20% | |
| VL3650LM | 36V Li-MnO2 Battery |
|
42V | 50A | CC5~8% | |
| VL3650L | 36V LiFePO4 Battery |
|
43.8V | 50A | CC5~8% | |
| VL3650 | 36V Lead-acid Battery | 41.4V | 44.1V | 50A | CC20% | |
| VL4840LM | 48V Li-MnO2 Battery |
|
54.6V | 40A | CC5~8% | |
| VL4840L | 48V LiFePO4 Battery |
|
43.8V | 40A | CC5~8% | |
| VL4840 | 48V Lead-acid Battery | 55.2V | 58.8V | 40A | CC20% | |
| VL6025L | 60V LiFePO4 Battery |
|
73V | 25A | CC5~8% | |
| VL6025 | 60V Lead-acid Battery | 67.5V | 73.5V | 25A | CC20% | |
| VL7225L | 72V LiFePO4 Battery |
|
87.6V | 25A | CC5~8% | |
| VL7225 | 72V Lead-acid Battery | 81V | 88.2V | 25A | CC20% | |
| VL8420L | 84V LiFePO4 Battery |
|
102.2V | 20A | CC5~8% | |
| VL8420 | 84V Lead-acid Battery | 94.5V | 102.9V | 20A | CC20% | |
| VL9616L | 96V LiFePO4 Battery |
|
116.8V | 16A | CC5~8% | |
| VL9616 | 96V Lead-acid Battery | 108V | 117.6V | 16A | CC20% | |
| Note: customized input / output / plug type / connectors are available. | ||||||
