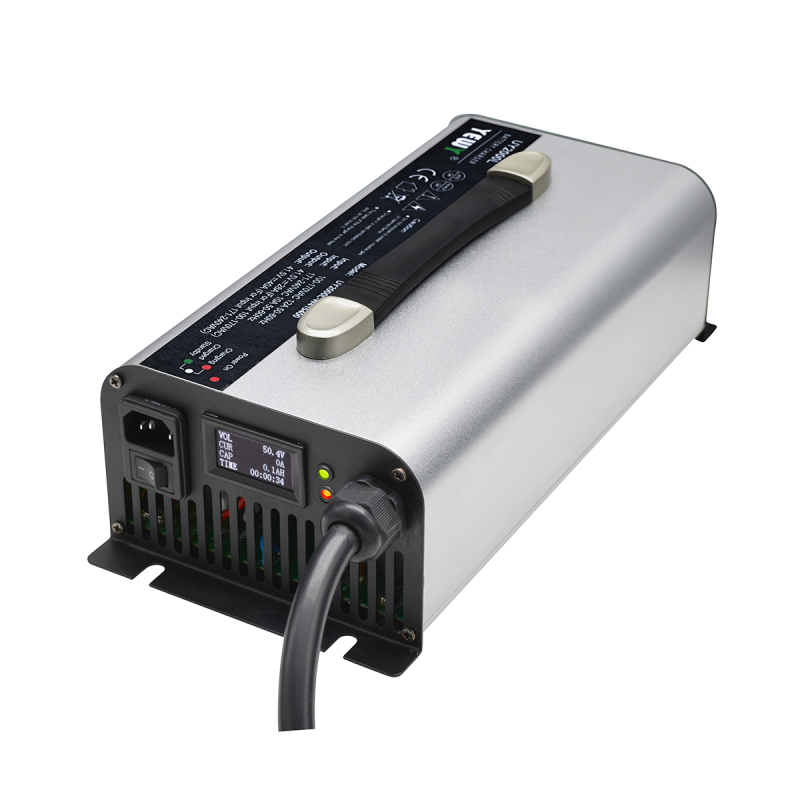

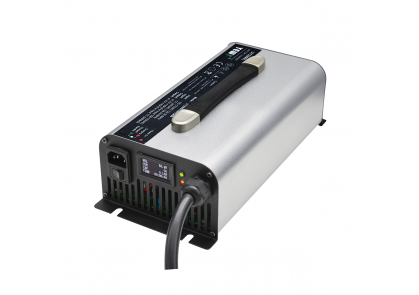

72V 15A AGM Battery Charger with PFC
Item No.: UY2000L-7215
Input voltage: universal 110-230Vac
Rated output: 72V 15A
Power factor: 0.99
Max charging: 88.2V customized
Charge battery type: 72V AGM battery
Smart Charging: pre-charge, CC, CV, Float
Case material: Aluminum
Size: 316×150×103 mm
Net weight: 3.6 kg
Warranty: 2 years
- Product Details
72V 15A AGM Battery Charger with PFC
Brief Descriptions:
72V 15A output PFC Battery Charger.
Universal 110~230Vac input voltage with PFC.
88.2V customized max charging voltage for AGM, GEL lead acid batteries.
LCD display of charging status.
Micro-processor controlled and intelligent 4 steps charging。
92% high efficiency.
Power Factor: 0.99
2 years warranty, high quality.
Specifications:
AC input voltage: universal 90 to 264Vac with PFC
AC input freq.: 50 / 60 Hz
Rated output: 72V 15A
Max charging voltage: 88.2V
Dimensions(LxWxH): 316 x 150 x 103 mm
Net weight: 3.6 KG
Housing: Aluminum
Color: silver
Techonolgy:
High Frequency Switching Mode Power Supply
Smart MCU controlled, all charging steps, charging voltages are programmed
PFC circuit with high efficiency
Protections:
Short circuit, Over-voltage, Over-temperature, Reverse Polarity.
Warranty:
Fully 2-year warranty with Free Replacing Policy.
Resposing in 24 hours after getting failed product report from customers.
Applications:
Charging 72V AGM, GEL, SLA lead-acid batteries.
Special Function For EV:
1) In-lock signal is available: EV can't start when charging.
2) Remote signal wire is available for connecting control digital display board.
Charging method:
For Lead-acid Battery: pre-charge, CC, CV, floating.
For Lithium Battery: pre-charge, CC, CV, auto cut-off.
Input Plug & Output Connector:
We supply different plugs and connector by customer's applications.
The 72V 15A AGM Battery Charger with PFC is a high-quality battery charger that is designed to charge AGM and GEL lead-acid batteries. It has a universal input voltage of 110~230Vac with PFC and a customized max charging voltage of 88.2V. The charger has an LCD display that shows the charging status and is micro-processor controlled with intelligent 4 steps charging. It has a high efficiency of 92% and a power factor of 0.99. The product comes with a 2-year warranty.
This battery charger is perfect for those who need to charge their AGM and GEL lead-acid batteries quickly and efficiently. With its high efficiency of 92%, it can charge your batteries in no time. The LCD display shows the charging status, so you can easily monitor the progress of your battery charging. The micro-processor controlled and intelligent 4 steps charging ensures that your batteries are charged safely and efficiently.
The 72V 15A AGM Battery Charger with PFC has a power factor of 0.99, which means that it is very efficient at converting AC power to DC power. This makes it an ideal choice for those who want to save energy and reduce their electricity bills.
The product comes with a 2-year warranty, which means that you can be assured of its quality and durability. With its high-quality construction and advanced features, this battery charger is sure to provide you with years of reliable service.
