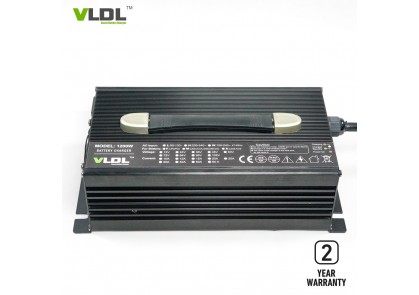

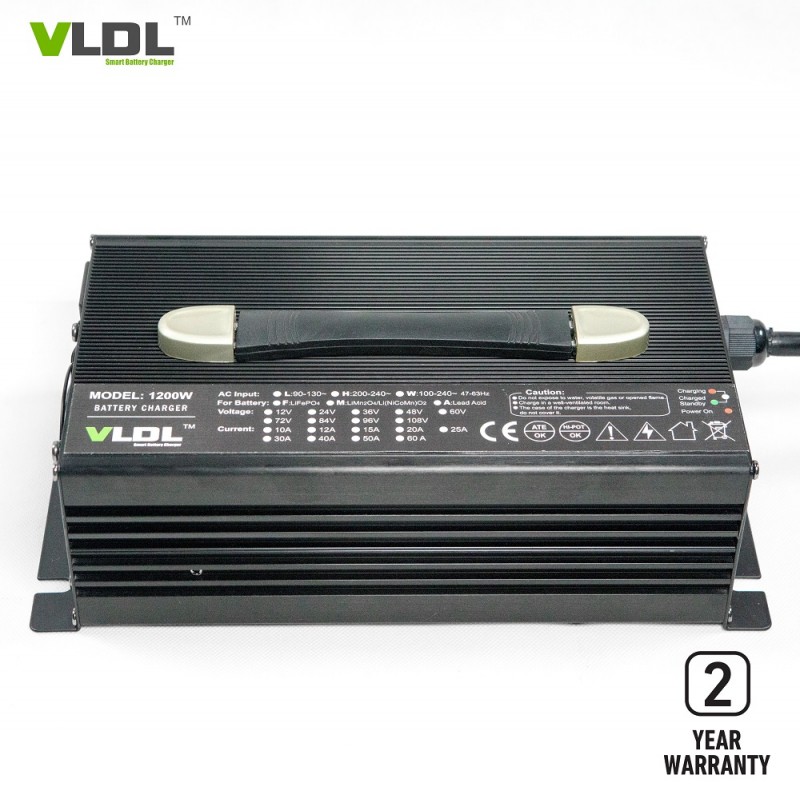

72V 12A Lithium Battery Charger

Item No.: VL7212L

Case material: Aluminum

Input voltage: 110V or 230Vac

Max charging: Customized 84V or 87.6V

Applied to battery types: Lithium Battery

Charging method: auto. Pre-charge, CC, CV

Applied to EV types: E-forklifts, E-scooters, electric AGV carts

Size: 260 x 150 x 90 mm

Net weight: 5.0 kg

Warranty: 2 years

72V 84V 12A Lithium Battery Charger

Brief Description:

Advanced high frequency switching mode power supply technology.

Designed for 48V lithium or lead acid battery.

Custom-made charging method is available.

Single 110V or 230Vac.

Rated output voltatge is 72V 12A.

Max charging voltage could be 84V, 87.6V by battery types.

Intelligent 4 steps charging with pre-charge, CC, CV and floating or automatic cut-off.

Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.

Aluminum casing, light weight, portable.

Suit to charge 48V e-forklifts, e-club cars or other EVs.

Technical Specs.:

1) Dimensions(LxWxH): 260 x 150 x 90 mm

2) Net weight: 5.0 KG

3) Max charging voltage(CV): 84 / 87.6volt

4) Floating voltage: customized

5) Max output current (CC): 12 amps

6) Charging method: pre-charge, CC, CV

7) AC input voltage: 110 / 230Vac

8) AC input freq.: 50 / 60 Hz

9) AC plug: customized by user’s country

10) Output connector type: customized by applications

11) Enclosure: Aluminum

Ralated Charger of 1200W:

Output series: 1,200W Size: 260×150×90 mm Net weight: 5.0 KG
Input	Model	Apply to battery types	Floating V	CV (V)	CC (A)	Switching
AC Input: 110 or 230V Frequency: 47~63HZ	VL1260L	12V LiFePO4 Battery		14.6V	60A	CC5~8%
	VL1260	12V Lead-acid Battery	13.5V	14.7V	60A	CC20%
	VL1460	14V AGM Battery	13.5V	14.4V	60A	CC20%
	VL1660L	16V LiFePO4 Battery		18.2V	60A	CC5~8%
	VL2435LM	24V Li-MnO2 Battery		29.4V	35A	CC5~8%
	VL2435L	24V LiFePO4 Battery		29.2V	35A	CC5~8%
	VL2435	24V Lead-acid Battery	27.6V	29.4V	35A	CC20%
	VL3620LM	36V Li-MnO2 Battery		42V	20A	CC5~8%
	VL3620L	36V LiFePO4 Battery		43.8V	20A	CC5~8%
	VL3620	36V Lead-acid Battery	41.4V	44.1V	20A	CC20%
	VL4818LM	48V Li-MnO2 Battery		54.6V	18A	CC5~8%
	VL4818L	48V LiFePO4 Battery		43.8V	18A	CC5~8%
	VL4818	48V Lead-acid Battery	55.2V	58.8V	18A	CC20%
	VL6015L	60V LiFePO4 Battery		73V	15A	CC5~8%
	VL6015	60V Lead-acid Battery	67.5V	73.5V	15A	CC20%
	VL7213L	72V LiFePO4 Battery		87.6V	13A	CC5~8%
	VL7213	72V Lead-acid Battery	81V	88.2V	13A	CC20%
	VL8411L	84V LiFePO4 Battery		102.2V	11A	CC5~8%
	VL8411	84V Lead-acid Battery	94.5V	102.9V	11A	CC20%
	VL9610L	96V LiFePO4 Battery		116.8V	10A	CC5~8%
	VL9610	96V Lead-acid Battery	108V	117.6V	10A	CC20%
Note: customized input / output / plug type / connectors are available
