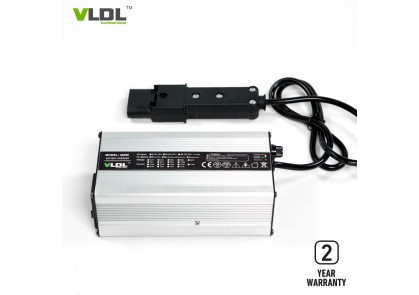

60V 5A Lead-acid Battery Charger
Item No.: VL6005
Case material: aluminum
Size: 170 x 90 x 63 mm
Net weight: 1.5 kg
Input voltage: 110 or 230Vac
Max voltage: 73.5V or customized
Charging step: automatic CC, CV and Floating
Applied to battery: 60V SLA, AGM, GEL batteries
Warranty: 4 years
- Product Details
Automatic 60V 5A Lead-acid Battery Charger
Descriptions:
Lead-acid battery charger 60V 5A was designed for E-scooters, E-motorcycles. Totally micro-processor controlled and automatic charging by battery's state. Max charging voltage can be set at 73.5V or customized for SLA, AGM, GEL, Silicon battery types. As a 15 years battery charger factory, Danl gurrantees 2 years warranty for all of our chargers, high quality and in 24 hours response after-service. Bring safty and best service to our customers.
Specifications:
AC input voltage: 110 or 230Vac
AC input freq.: 50 / 60 Hz
Rated output: 60V 5Amps
Max charging voltage: customized 73.5V
Dimensions(LxWxH): 170 x 90 x 63 mm
Net weight: 1.5 KG
Housing: Aluminum
Color: Silver or Black
Techonolgy & Advantages:
High Frequency Switching Mode Power Supply.
Intelligent Micro-processor Controlled.
Smart and Automatic 4 Steps Charging.
Aluminum Casing, Light Weight, Portable.
High Quality, Factory Price.
Protections:
Short circuit, Over-voltage, Over-temperature, Reverse Polarity.
Applications:
Automatic Charging For 60V Lead-acid or Lithium Batteries.
Suit for E-Bikes, E-Scooters, E-Skateboard.
Special Functions For EV:
1) In-lock signal is available: EV can't start when charging.
2) Remote signal wire is available for connecting control digital display board.
Warranty:
Fully 2-year warranty with Free Replacing Policy.
Response in 24 hours after getting failed product report from customers.
| Output series: 360W Size: 170×90×63 mm Net weight: 1.5 KG | ||||||
| Input | Model | Apply to battery types | Floating V | CV (V) | CC (A) | Switching |
|
AC Input: 110 / 230V
Frequency: 47~63HZ
|
VL1220L | 12V LiFePO4 Battery | 14.6V | 20A | CC5~8% | |
| VL1220 | 12V Lead-acid Battery | 13.5V | 14.7V | 20A | CC20% | |
| VL2412LM | 24V Li-MnO2 Battery | 29.4V | 12A | CC5~8% | ||
| VL2412L | 24V LiFePO4 Battery | 29.2V | 12A | CC5~8% | ||
| VL2412 | 24V Lead-acid Battery | 27.6V | 29.4V | 12A | CC20% | |
| VL3608LM | 36V Li-MnO2 Battery | 42V | 8A | CC5~8% | ||
| VL3608L | 36V LiFePO4 Battery | 43.8V | 8A | CC5~8% | ||
| VL3608 | 36V Lead-acid Battery | 41.4V | 44.1V | 8A | CC20% | |
| VL4805LM | 48V Li-MnO2 Battery | 54.6V | 5A | CC5~8% | ||
| VL4805L | 48V LiFePO4 Battery | 43.8V | 5A | CC5~8% | ||
| VL4805 | 48V Lead-acid Battery | 55.2V | 58.8V | 5A | CC20% | |
| VL6004L | 60V LiFePO4 Battery | 73V | 4A | CC5~8% | ||
| VL6004 | 60V Lead-acid Battery | 67.5V | 73.5V | 4A | CC20% | |
| VL7203L | 72V LiFePO4 Battery | 87.6V | 3A | CC5~8% | ||
| VL7203 | 72V Lead-acid Battery | 81V | 88.2V | 3A | CC20% | |
|
Note: customized input / output / plug type / connectors are available. |
||||||
