60V 8A Marine Battery Charger
Input voltage: wide 110-230Vac
Rated output: 60V 8A
Max charging: 72V 73V 73.8V customized
Applied to battery types : 60V Li-ion, LiFePO4 battery
Smart Charging: smart Pre-charge, CC, CV or shut-off
Case material: Aluminum
Size: 197×134×86 mm
Net weight: 3.0kg
Warranty: 2 years
- Product Details

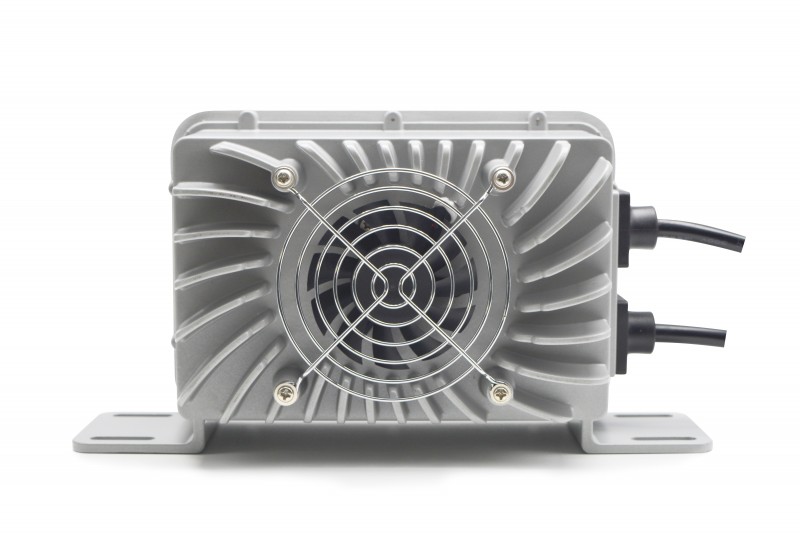

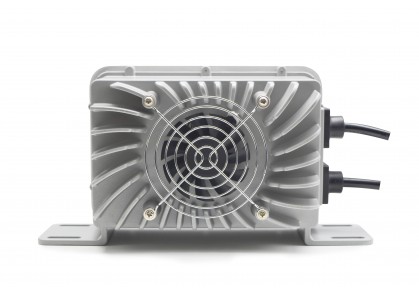

NEW Smart 60V 8A Marine Battery Charger
Brief Descriptions:
60V 8A output Marine Battery Charger.
IP65 / IP66 Waterproof Rate Rate.
Universal 90~264Vac input voltage with PFC.
72V / 73V / 73.8V customized max charging voltage for Lithium / lead-acid batteries.
Micro-processor controlled and intelligent 4 steps charging。
92% high efficiency.
2 years warranty, high quality.
Specifications:
AC input voltage: universal 90 to 264Vac with PFC
AC input freq.: 50 / 60 Hz
Rated output: 60V 8Amps
Max charging voltage: 72V / 73V / 73.8V
Waterproof rate: IP65 / IP66
Dimensions(LxWxH): 197 x 134 x 86 mm
Net weight: 3.0 KG
Housing: Aluminum
Color: silver or black
Techonolgy:
High Frequency Switching Mode Power Supply
Smart MCU contolled
Protections:
Short circuit, Over-voltage, Over-temperature, Reverse Polarity.
Warranty:
Fully 2-year warranty with Free Replacing Policy.
Resposing in 24 hours after getting failed product report from customers.
Applications:
Charging 60V Lithium or Lead-acid Battery Powered Electric Motorcycles / Scooters.
Special Function For EV:
1) In-lock signal is available: EV can't start when charging.
2) Remote signal wire is available for connecting control digital display board.
Charging method:
For Lead-acid Battery: pre-charge, CC, CV, floating.
For Lithium Battery: pre-charge, CC, CV, auto cut-off.
Input Plug & Output Connector:
We supply different plugs and connector by customer's applications.
