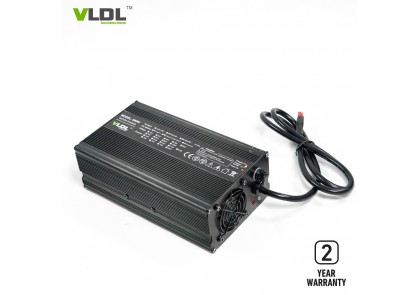

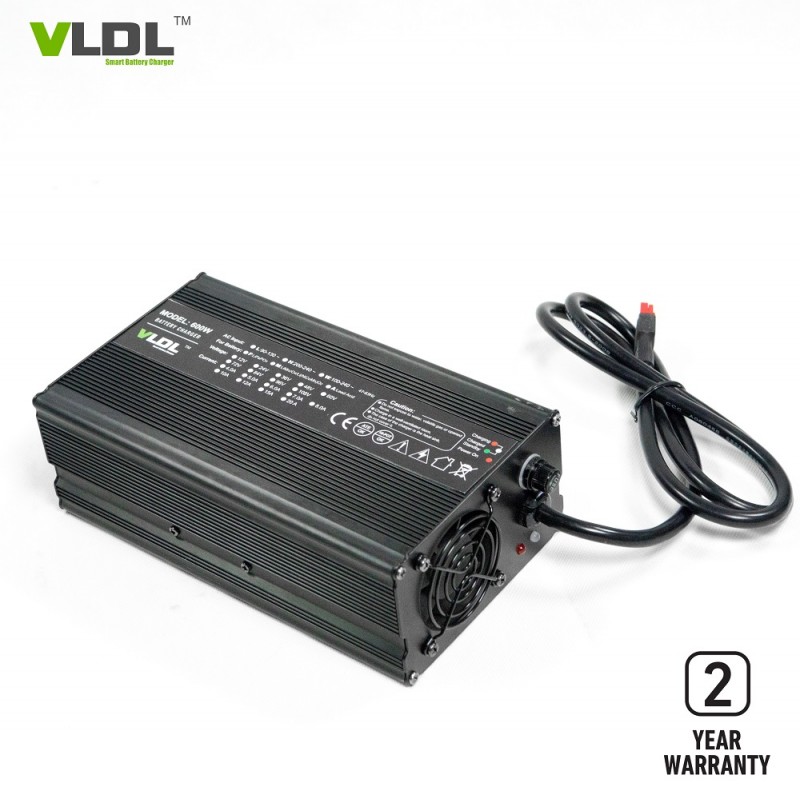

60V 8A Lithium Battery Charger
Item number: VL6008L
Size(LxWxH): 220 x 120 x 70 mm
Net weight: 2.5 KG
Case: Aluminum
Max charging voltage(CV): 67.2V or 73Vdc
Floating voltage: /
Max output current (CC): 8 amps
Charging method: Automatic Pre-charge, CC, CV
AC input voltage: 110V or 230Vac
AC input freq.: 50 / 60 Hz
AC plug: US, UK, Euro, AU, etc.
Output connector type: Clips, Anderson, etc.
- Product Details
60V 8A Lithium Battery Charger For E-Floor Sweeper.
Brief Description:
60 volt 8 amps lithium battery charger suits for 60V Li-ion / LiFePO4 / LiMnO2 battery powered Electric Floor Wweepers, input with 110 or 230Vac and rated output voltatge is 60 volt 8 amps. Smart max charging voltage is 607.2V or 73V for Li-ion / LiFePO4 type batteries. Intelligent 3 steps PWM charging with CC, CV and Floating, this charger will charge your electric floor sweeper very fast, with high efficiency and protect your battery life to the max. As a manufacturer of battery charger, we can customize charger and provide factory competitive price and two years warranty.
Features:
◆ Advanced high frequency switching mode power supply technology.
◆ DC output isolated from AC input.
◆ Input 110 or 230Vac, 50Hz~60Hz.
◆ Charging parameters are insensitive to the AC input line voltage variations.
◆ Completely automatic battery charging: Pre-charging, CC, CV, Absorption, Float or Cut-off.
◆ 2 LEDs: LED1 Red (power on), LED2 Red/green (charging/full)..
◆ Possibility to customize charging curve for request.
◆ Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.
◆ Efficiency > 95%.
◆ Forced ventilation with fans.
◆ 100% full load burn-in test.
◆ Aluminum casing, light weight, portable.
Technical Specs.:
1) Dimensions(LxWxH): 220 x 120 x 70 mm
2) Net weight: 2.5 KG
3) Max charging voltage(CV): 67.2V or 73.5V
4) Floating voltage: /
5) Max output current (CC): 8A
6) Charging method: Automatic Pre-charge, CC, CV
7) AC input voltage: 110V or 240V
8) AC input freq.: 50 / 60 Hz
9) AC plug: US, UK, Euro, AU, etc.
10) Output connector type: Clips, Anderson, etc.
11) Enclosure: Aluminum
| Output series: 600W Size: 220×120×70 mm Net weight: 2.5 KG | ||||||
| Input | Model | Apply to battery types | Floating V | CV (V) | CC (A) | Switching |
|
AC Input: 110 or 230V
Frequency: 47~63HZ
|
VL1225L | 12V LiFePO4 Battery | 14.6V | 25A | CC5~8% | |
| VL1225 | 12V Lead-acid Battery | 13.5V | 14.7V | 25A | CC20% | |
| VL1425 | 14V AGM Battery | 13.5V | 14.4V | 25A | CC20% | |
| VL1625L | 16V LiFePO4 Battery | 18.2V | 25A | CC5~8% | ||
| VL2418LM | 24V Li-MnO2 Battery | 29.4V | 18A | CC5~8% | ||
| VL2418L | 24V LiFePO4 Battery | 29.2V | 18A | CC5~8% | ||
| VL2418 | 24V Lead-acid Battery | 27.6V | 29.4V | 18A | CC20% | |
| VL3612LM | 36V Li-MnO2 Battery | 42V | 12A | CC5~8% | ||
| VL3612L | 36V LiFePO4 Battery | 43.8V | 12A | CC5~8% | ||
| VL3612 | 36V Lead-acid Battery | 41.4V | 44.1V | 12A | CC20% | |
| VL4810LM | 48V Li-MnO2 Battery | 54.6V | 10A | CC5~8% | ||
| VL4810L | 48V LiFePO4 Battery | 43.8V | 10A | CC5~8% | ||
| VL4810 | 48V Lead-acid Battery | 55.2V | 58.8V | 10A | CC20% | |
| VL6008L | 60V LiFePO4 Battery | 73V | 8A | CC5~8% | ||
| VL6008 | 60V Lead-acid Battery | 67.5V | 73.5V | 8A | CC20% | |
| VL7206L | 72V LiFePO4 Battery | 87.6V | 6A | CC5~8% | ||
| VL7206 | 72V Lead-acid Battery | 81V | 88.2V | 6A | CC20% | |
| VL8405L | 84V LiFePO4 Battery | 102.2V | 5A | CC5~8% | ||
| VL8405 | 84V Lead-acid Battery | 94.5V | 102.9V | 5A | CC20% | |
| Note: customized input / output / plug type / connectors are available. | ||||||
