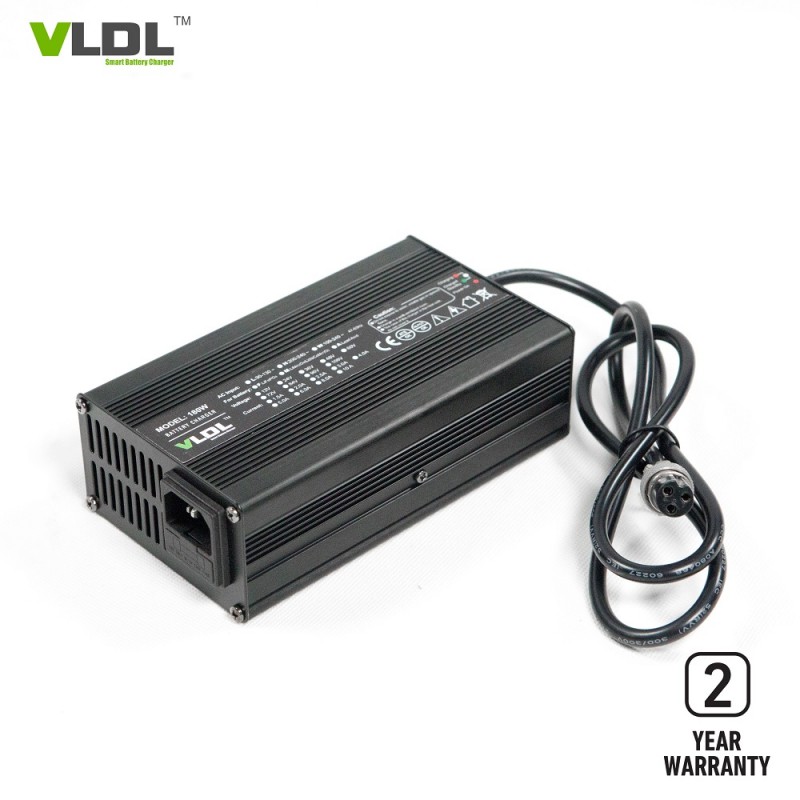

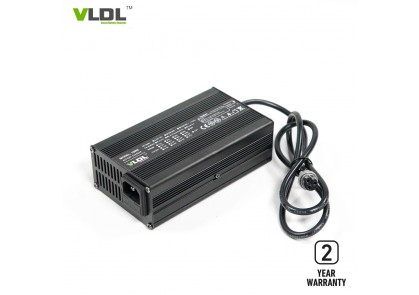

60V 2A Lithium Battery Charger

Automatic 60V 2A Lithium Battery Charger

Descriptions:

Lithium battery charger 60V 2A was designed for LiFePO4 / Li-ion / LiMnO2 Batteries. Totally micro-processor controlled and automatic charging by battery's state. Max charging voltage can be set at 73V for lithium battery types. As a 15 years battery charger factory, Danl gurrantees 2 years warranty for all of our chargers, high quality and in 24 hours response after-service. Bring safty and best service to our customers.

Specifications:
AC input voltage: 110 / 230Vac
AC input freq.: 50 / 60 Hz
Rated output: 60V 2Amps
Max charging voltage: 73V / 73.5V
Dimensions(LxWxH): 155 x 90 x 50 mm
Net weight: 0.9 KG
Housing: Aluminum
Color: Silver or Black

Techonolgy & Advantages:
High Frequency Switching Mode Power Supply.
Intelligent Micro-processor Controlled.

Smart and Automatic 4 Steps Charging.

Aluminum Casing, Light Weight, Portable.

High Quality, Factory Price.

Protections:
Short circuit, Over-voltage, Over-temperature, Reverse Polarity.

Applications:

Automatic Charging For 60V Lithium (LiFePO4/Li-ion/LiMnO2) Batteries.

E-mobility, E-scooter

Warranty:
Fully 2-year warranty with Free Replacing Policy.
Response in 24 hours after getting failed product report from customers.

The 3-stage mode charging :

Step 1 Constant Current: The charger will supply constant current for the battery

Step 2 Constant Voltage: The voltage will be rising under the first stage, when it reach constant voltage value, it will turn into the second stage. The current will be slowly smaller until it reduce to floating value, the CV stage will end.

Step 3 Floating: When the current is approaching the value of transition, the charger will cut down to the given current gradually, that means the battery power is full and indicator light turn to green. At this moment, the battery can be stopped charging or keep on trickle current charging for half an hour.
