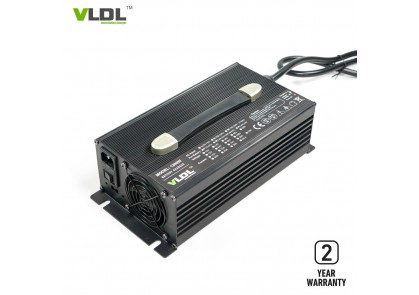

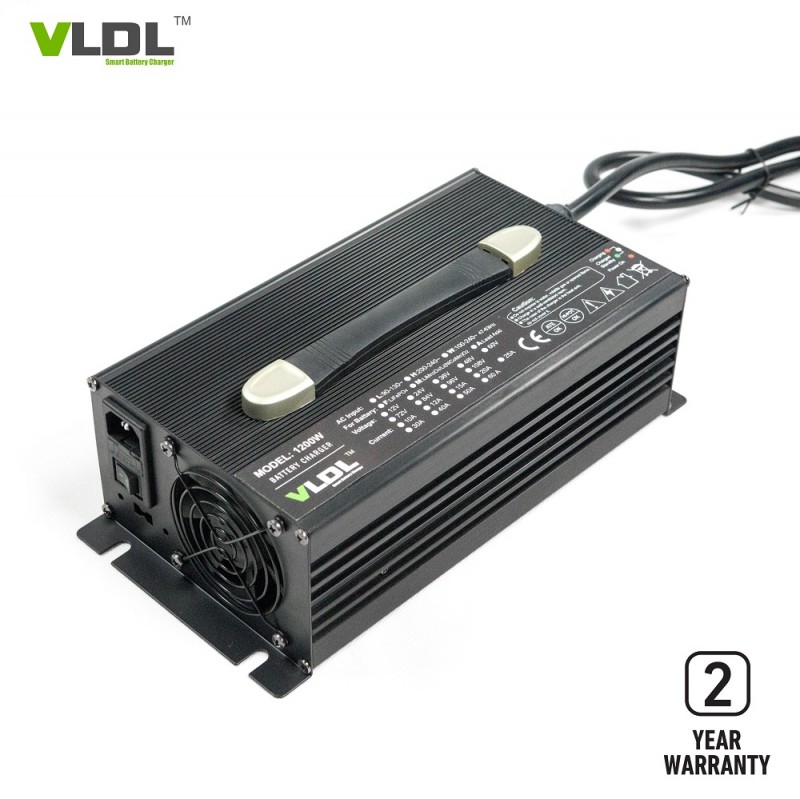

60V 20A E-forklift Battery Charger

60V 20A E-Forklift Automatic Battery Charger

Brief Description:

E-Forklift battery charger 60 volts 20 amps with aluminum housing and small size. Input with 110 or 240 Vac. Max charging voltage is 73V for lithium (LiFePO4, Li - ion, Li Polymer, LiMO2) or 73.5V for lead acid (SLA, AGM, Deep cycle, Flooded, GEL). Automatic four steps charging with pre - charge, CC, CV and floating / shut - off. This smart 12V charger can detect your battery state automatically and then charge it automatically accordingly, protect your battery life to maximum.

Features

1) Optional charging methods: Lithium or lead acid batteries.

2) Advanced high frequency switching mode power supply technology.

3) DC output isolated from AC input.

4) Automatic worldwide Input 110/230Vac(90~264Vac), 50Hz~60Hz.

5) Charging parameters are insensitive to the AC input line voltage variations.

6) Completely automatic 4 steps charge: pre-charge, CC, CV, floating/trickle or shut-off.

7) Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.

8) Aluminum casing, light weight, portable.

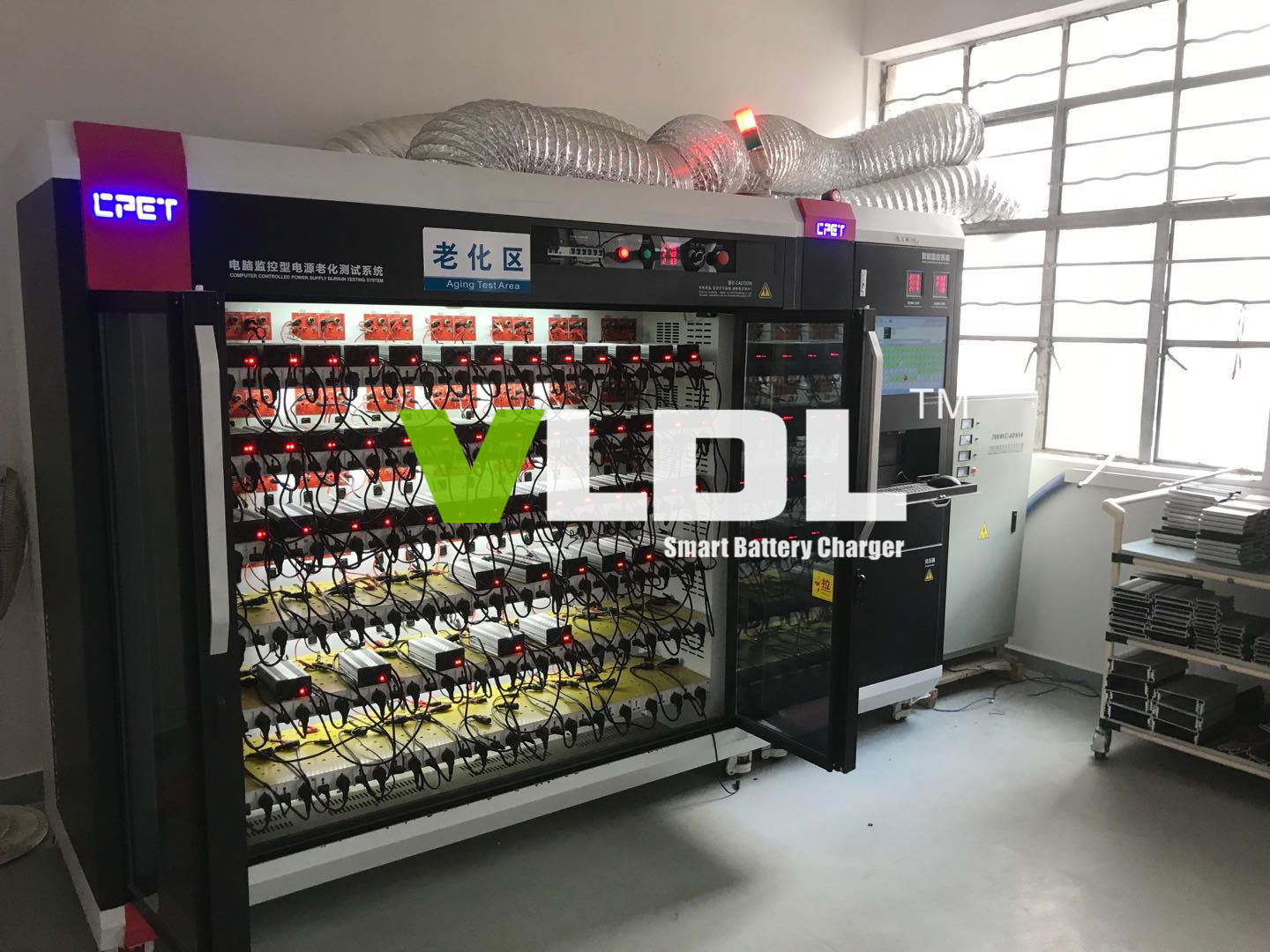

9) 100% full load burn-in test.

10) 2 years warranty.

Technical Specs.:

1) Dimensions(LxWxH): 300 x 150 x 90 mm

2) Net weight: 5.5 KG

3) Max charging voltage(CV): 73 / 73.5 volt

4) Floating voltage: 69

5) Max output current (CC): 20 amps

6) Charging method: CC, CV, floating

7) AC input voltage: 110 / 240Vac

8) AC input freq.: 50 / 60 Hz

9) AC plug: US, UK, AU, Euro, etc.

10) Output connector type: Clips, Anderson, etc.

11) Enclosure: Aluminum
