60V 18A Waterproof Battery Charger
Item No.: VL6018LWP
Dimension: 310*230*101 mm
N.W: 8.0 KG
Input voltage: wide 90~264Vac
Case material: sealed aluminum
WaterProof rate: IP65
Output rated: 60V 18A
Max charging: 72V / 73 / 73.5V customized
Applied to battery Types: 72V Lead acid or Lithium Battery
Smart Charging: Auto. Pre-charge, CC and CV
- Product Details

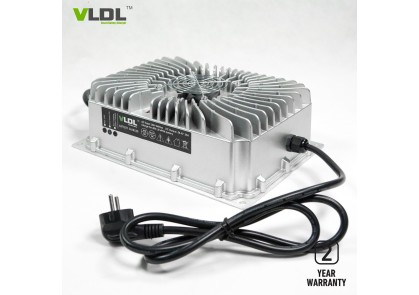

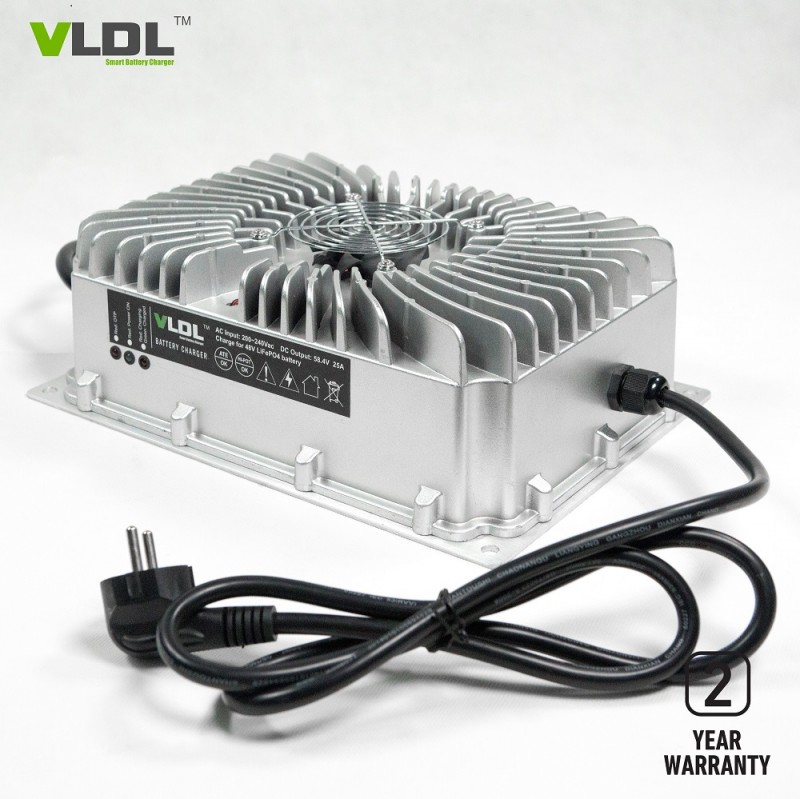

WaterProof / Marine Battery Charger 60V 18A
Brief Descriptions:
Marine Battery Charger 60V 18A with IP65 rate waterproof, is designed for lithium or lead acid (AGM, sealed) battery powered electric cars or boat appliecation, input with PFC worldwide 90~264Vac and rated output voltatge is 60V 18A. Max customized 73V for Li-ion batteries or 73.5V for lead-acid batteries. MCU coutrolled and intelligent 4 steps charging with pre-charge, CC, CV and floating or automatic cut-off, this charger will charge your electric motorcycless very fast, with high efficiency.
Features:
Advanced high frequency switching mode power supply technology.
DC output isolated from AC input.
Auto worldwide Input 110 / 230Vac (90 ~ 264Vac) with PFC, 50Hz ~ 60Hz.
Charging parameters are insensitive to the AC input line voltage variations.
Completely automatic battery charging: Pre - charging, CC, CV, Absorption, Float or Cut - off.
2 LEDs: LED1 Red (power on), LED2 Red/green (charging/full)..
Possibility to customize charging curve for request.
Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.
Efficiency > 95%.
Forced ventilation with fans.
100% full load burn-in test.
Aluminum casing, light weight, portable, on-board.
Technical Specs.:
Dimensions(LxWxH): 310 × 230 × 101 MM
Net weight: 8.0 KG
Max charging voltage(CV): 72, 73, 73.5 volt (customized)
Max output current (CC): 18 amps
Charging method: Pre-charge, CC, CV
AC input voltage: 90-264 Vac universal
AC input freq.: 50 / 60 Hz
AC plug: custom-made
Output connector type: customized by applications
Enclosure: Aluminum
Waterproof rate: IP65
| 1,500W waterproof charger Size: 310×230×101 mm Net weight: 8.0 KG | |||||||
| Input | Model | Apply to battery types | Floating V | CV (V) | CC (A) | Switching | |
|
PFC AC Input: 90 - 264V
Frequency: 47~63HZ
|
VL1260LWP | 12V LiFePO4 Battery |
|
14.6V | 60A | CC5~8% | |
| VL1260WP | 12V Lead-acid Battery | 13.5V | 14.7V | 60A | CC20% | ||
| VL1460WP | 14V AGM Battery | 13.5V | 14.4V | 60A | CC20% | ||
| VL1660WPL | 16V LiFePO4 Battery |
|
18.2V | 60A | CC5~8% | ||
| VL2445LMWP | 24V Li-MnO2 Battery |
|
29.4V | 45A | CC5~8% | ||
| VL2445LWP | 24V LiFePO4 Battery |
|
29.2V | 45A | CC5~8% | ||
| VL2445WP | 24V Lead-acid Battery | 27.6V | 29.4V | 45A | CC20% | ||
| VL3630LMWP | 36V Li-MnO2 Battery |
|
42V | 30A | CC5~8% | ||
| VL3630LWP | 36V LiFePO4 Battery |
|
43.8V | 30A | CC5~8% | ||
| VL3630WP | 36V Lead-acid Battery | 41.4V | 44.1V | 30A | CC20% | ||
| VL4825LMWP | 48V Li-MnO2 Battery |
|
54.6V | 25A | CC5~8% | ||
| VL4825LWP | 48V LiFePO4 Battery |
|
43.8V | 25A | CC5~8% | ||
| VL4825WP | 48V Lead-acid Battery | 55.2V | 58.8V | 25A | CC20% | ||
| VL6018LWP | 60V LiFePO4 Battery |
|
73V | 20A | CC5~8% | ||
| VL6018WP | 60V Lead-acid Battery | 67.5V | 73.5V | 20A | CC20% | ||
| VL7215LWP | 72V LiFePO4 Battery |
|
87.6V | 15A | CC5~8% | ||
| VL7215WP | 72V Lead-acid Battery | 81V | 88.2V | 15A | CC20% | ||
| VL8413LWP | 84V LiFePO4 Battery |
|
102.2V | 13A | CC5~8% | ||
| VL8413WP | 84V Lead-acid Battery | 94.5V | 102.9V | 13A | CC20% | ||
| VL9612LWP | 96V LiFePO4 Battery |
|
116.8V | 12A | CC5~8% | ||
| VL9612WP | 96V Lead-acid Battery | 108V | 117.6V | 12A | CC20% | ||
| Note: customized input / output / plug type / connectors are available. | |||||||
Waterproof 60V 18A Smart Battery Charger is suit for charging lithium / lead acid battery of Electric Vehicles. Water-resist rate IP65 and fully sealed, without fan cooling, best for outdoor / wet environment using. No worry again for using environment.
Input worldwide 110-230Vac with PFC, 50-60 Hz, high quality and high efficiency. Output with rated 60 volts 18 amps, max charging voltage 73V / 73.5V by battery's type, customized.
Automatic and smart 4 steps charging. This 60V18A waterproof charger has latest SMPS technology and fully MCU controlled. Just plug it in and then connect it to the battery, it can detect your battery's state and begin automatic switching of Pre-charge, CC, CV, Floating or Cut-off. Fast charging and protect your battery to the maximum. Your battery will have long life after charging by our VLDL brand charger.
It has aluminum housing, light weight with only 8 KG and dimension is 310*230*101 mm. Good looking, light weight, portable, waterproof and on-board intelligent battery charger from 10 years charger factory DANL.
