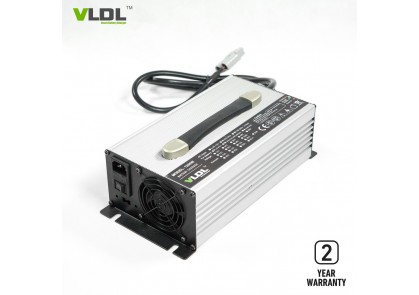

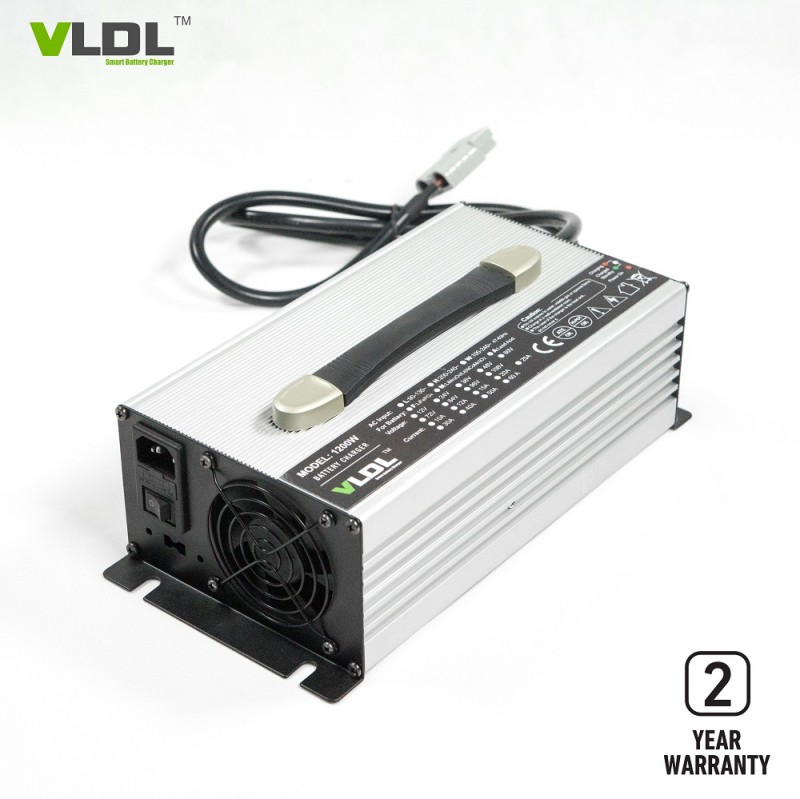

60V 15A Lithium Battery Charger

60V 15A Lithium Battery Charger

Descriptions:

Designed for 60V lithium ion battery powered Electric Motorcycles. Input with 110 or 230Vac and rated output voltatge is 60V 15A. Smart max charging voltage is 69.2 / 73V for li-ion type batteries. Intelligent 4 steps charging with pre - charge, CC, CV and floating or automatic cut-off, this charger will charge your E-motorcycles / E-Scooters battery very fast, with high efficiency and protect your battery life to the maximum. High quality, factory price and 2 years warranty. As original battery chargers supplier / manufacturer / factory, Danl provide full charging solution for your EV products.

Specifications:

AC input voltage: 110 or 230Vac

AC input freq.: 50 / 60 Hz

Rated output: 60V 15Amps

Max charging voltage: 69.2V / 73V

Dimensions(LxWxH): 260 x 150 x 90 mm

Net weight: 4.5 KG

Housing: Aluminum

Color: silver or black

Techonolgy:

High Frequency Switching Mode Power Supply

Smart MCU contolled

Protections:

Short circuit, Over-voltage, Over-temperature, Reverse Polarity.

Warranty:

Fully 2-year warranty with Free Replacing Policy.

Resposing in 24 hours after getting failed product report from customers.

Applications:

Charging 60V Lithium Battery Powerd Electric Motorcycles / Scooters.

Special Function For EV:

1) In-lock signal is available: EV can't start when charging.

2) Remote signal wire is available for connecting control digital display board.

Charging method:

For Lead-acid Battery: pre-charge, CC, CV, floating.

For Lithium Battery: pre-charge, CC, CV, auto cut-off.

Input Plug & Output Connector:

We supply different plugs and connecotor by customer's applications.

Output series: 1,200W     Size: 260×150×90 mm     Net weight: 4.5 KG
Input	Model	Apply to battery types	Floating V	CV (V)	CC (A)	Switching
AC Input: 110 / 230V Frequency: 47~63HZ	VL1260L	12V LiFePO4 Battery		14.6V	60A	CC5~8%
	VL1260	12V Lead-acid Battery	13.5V	14.7V	60A	CC20%
	VL1460	14V AGM Battery	13.5V	14.4V	60A	CC20%
	VL1660L	16V LiFePO4 Battery		18.2V	60A	CC5~8%
	VL2435LM	24V Li-MnO2 Battery		29.4V	35A	CC5~8%
	VL2435L	24V LiFePO4 Battery		29.2V	35A	CC5~8%
	VL2435	24V Lead-acid Battery	27.6V	29.4V	35A	CC20%
	VL3620LM	36V Li-MnO2 Battery		42V	20A	CC5~8%
	VL3620L	36V LiFePO4 Battery		43.8V	20A	CC5~8%
	VL3620	36V Lead-acid Battery	41.4V	44.1V	20A	CC20%
	VL4818LM	48V Li-MnO2 Battery		54.6V	18A	CC5~8%
	VL4818L	48V LiFePO4 Battery		43.8V	18A	CC5~8%
	VL4818	48V Lead-acid Battery	55.2V	58.8V	18A	CC20%
	VL6015L	60V LiFePO4 Battery		73V	15A	CC5~8%
	VL6015	60V Lead-acid Battery	67.5V	73.5V	15A	CC20%
	VL7213L	72V LiFePO4 Battery		87.6V	13A	CC5~8%
	VL7213	72V Lead-acid Battery	81V	88.2V	13A	CC20%
	VL8411L	84V LiFePO4 Battery		102.2V	11A	CC5~8%
	VL8411	84V Lead-acid Battery	94.5V	102.9V	11A	CC20%
	VL9610L	96V LiFePO4 Battery		116.8V	10A	CC5~8%
	VL9610	96V Lead-acid Battery	108V	117.6V	10A	CC20%
Note: customized input / output / plug type / connectors are available.

Product Information

Overview

VLDL Smart Battery Charger is a fully automatic 4 steps charging with Pre-charge, CC, CV and Floating/shut-off intelligent battery charger. Charging faster and accurately than conventional big and heavy chargers. The pre-charge step can active your low voltage battery and protect your extremely discharged batteries. After pre-charging, CC step will charge with Constant Current with very fast speed to reach battery’s max voltage. Then CV step can charge with Constant Voltage, the charging current begins to drop at this step. At last, Floating step charges with very small current when charger detects battery’s capacity was charged almost fully. The float charge or called trickle charge holds battery at 100% ready state and charger can be left on without worry of undercharge or overcharge.Or if your battery is lithium battery type, our charger can set to be shut off when battery is fully charged.

VLDL chargers have worldwide input voltage 110-240Vac, some models was designed with PFC circuit. Charger automatically operates on voltage of 110Vac or 240Vac when user connects it to the local wall socket. We customize input plug and output connector types by customer’s request and meet local applications fully.

VLDL smart battery chargers are widely applied to electric vehicles including e-bikes, e-scooters, e-mobility, e-skateboards, e-motorcycles, e-golf carts, electric floor sweepers etc., whatever battery types your electric vehicles powered by, lithium(LiFePO4, Li-ion, LiMo2, Li-polymer etc.) or lead acid (AGM, SLA, GEL, Flooded, Deep cycles etc.), our charger can charge it with high speed and intelligent method.

Additional information

DANL New Energy is a 15 years battery chargers manufacturer/factory/supplier. We design and manufacture all by ourselves. We control the quality with high level and have been updating our technology to the latest. We promise 2 years full warranty for all of our battery chargers. Best quality and factory price are worth to be your sincere supplier of battery charger market.
