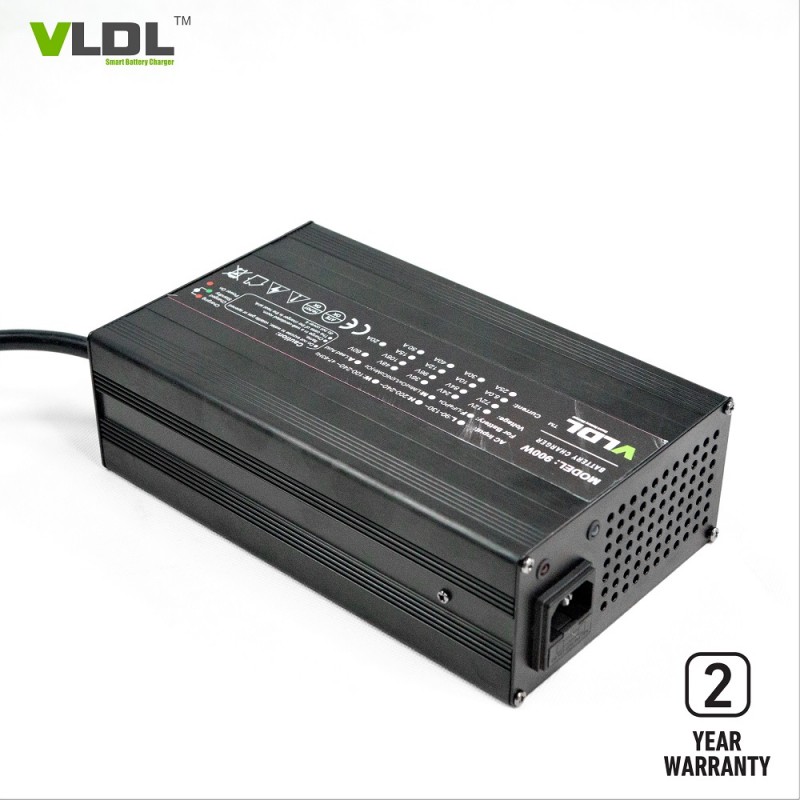

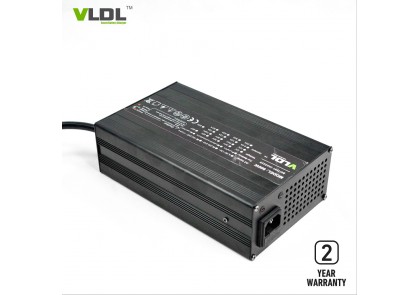

60V 12A Lead Acid Battery Charger
Case material: Aluminum
Size: 230 x 135 x 70 mm
Net weight: 3.0 kg
AC input: 110V or 230V
Output: 60V 12A
Max charging: 73V 12A
Charging method: CC, CV and Floating
Applied to battery types: 60V Lead-acid, AGM, GEL

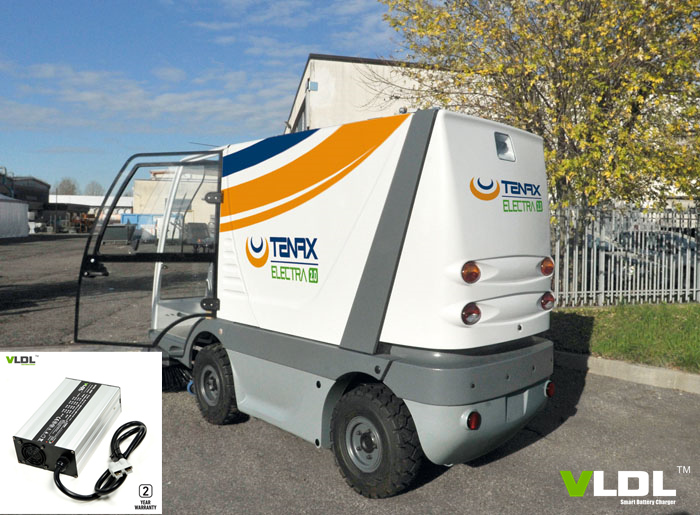

Charging EV types: Electric Floor Sweepers
- Product Details
60V 12A Lead Acid Battery Charger
Brief Description:
Designed for 60V lead acid battery input with 110 or 230Vac and rated output voltatge is 60V 12A. Smart max charging voltage is 73.5V Lead acid / SLA / GEL / AGM batteries. Intelligent 4 steps charging with pre-charge, CC, CV and floating or automatic cut - off, this charger will charge your racing battery very fast, with high efficiency and protect your battery life to the max. High quality, factory price and 2 years warranty.
Features
1) Optional charging methods: Lithium or Lead-acid batteries.
2) Advanced high frequency switching mode power supply technology.
3) DC output isolated from AC input.
4) Input 110/230Vac, 50Hz~60Hz.
5) Charging parameters are insensitive to the AC input line voltage variations.
6) Completely automatic 4 steps charge: pre-charge, CC, CV, floating/trickle or shut-off.
7) Protections: Short circuit, Over - voltage, Over - temperature, Reverse Polarity.
8) Aluminum casing, light weight, portable.
9) 100% full load burn-in test.
10) 2 years warranty.
Technical Specs.:
1) Dimensions(LxWxH): 230 x 135 x 70 mm
2) Net weight: 3.0 KG
3) Max charging voltage(CV): 73.5V
4) Floating voltage: 69V
5) Max output current (CC): 12A
6) Charging method: CC, CV, Floating
7) AC input voltage: 110 / 230Vac
8) AC input freq.: 50 / 60 Hz
9) AC plug: UK, US, Euro, AU, etc.
10) Output connector type: Clips, Anderson, XLR, etc.
11) Enclosure: Aluminum
Rlated models of 900W charger:
| Output series: 900W Size: 230×135×70 mm Net weight: 3.0 KG | ||||||
| Input | Model | Apply to battery types | Floating V | CV (V) | CC (A) | Switching |
|
AC Input: 110 / 230V
Frequency: 47~63HZ
|
VL1230L | 12V LiFePO4 Battery |
|
14.6V | 30A | CC5~8% |
| VL1230 | 12V Lead-acid Battery | 13.5V | 14.7V | 30A | CC20% | |
| VL1430 | 14V AGM Battery | 13.5V | 14.4V | 30A | CC20% | |
| VL1630L | 16V LiFePO4 Battery |
|
18.2V | 30A | CC5~8% | |
| VL2425LM | 24V Li-MnO2 Battery |
|
29.4V | 25A | CC5~8% | |
| VL2425L | 24V LiFePO4 Battery |
|
29.2V | 25A | CC5~8% | |
| VL2425 | 24V Lead-acid Battery | 27.6V | 29.4V | 25A | CC20% | |
| VL3618LM | 36V Li-MnO2 Battery |
|
42V | 18A | CC5~8% | |
| VL3618L | 36V LiFePO4 Battery |
|
43.8V | 18A | CC5~8% | |
| VL3618 | 36V Lead-acid Battery | 41.4V | 44.1V | 18A | CC20% | |
| VL4815LM | 48V Li-MnO2 Battery |
|
54.6V | 15A | CC5~8% | |
| VL4815L | 48V LiFePO4 Battery |
|
43.8V | 15A | CC5~8% | |
| VL4815 | 48V Lead-acid Battery | 55.2V | 58.8V | 15A | CC20% | |
| VL6012L | 60V LiFePO4 Battery |
|
73V | 12A | CC5~8% | |
| VL6012 | 60V Lead-acid Battery | 67.5V | 73.5V | 12A | CC20% | |
| VL7210L | 72V LiFePO4 Battery |
|
87.6V | 10A | CC5~8% | |
| VL7210 | 72V Lead-acid Battery | 81V | 88.2V | 10A | CC20% | |
|
|
VL8408L | 84V LiFePO4 Battery |
|
102.2V | 8A | CC5~8% |
|
|
VL8408 | 84V Lead-acid Battery | 94.5V | 102.9V | 8A | CC20% |
| Note: customized input / output / plug type / connectors are available. | ||||||
