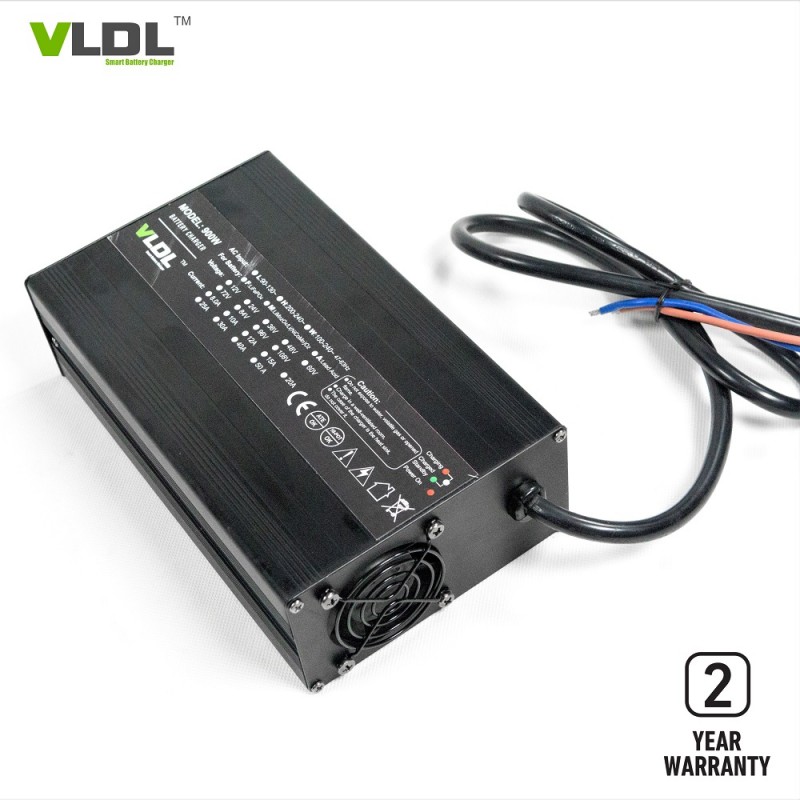

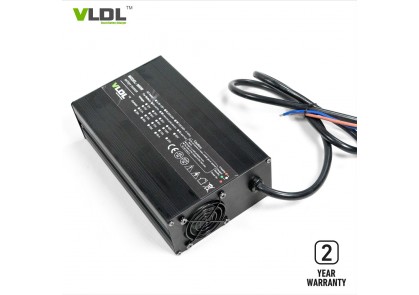

60V 10A LiFePO4 Battery Charger

60V 10A LiFePO4 Battery Charger

Brief Description:

60V 10Amps intelligent battery charger is designed for Li-ion / LiFePO4 / LiMoN2 battery, input with 110 or 230Vac and rated output voltage is 60 Volt 10 amps. Smart max charging voltage is 73.5V for lead acid type batteries and 73V for Lithium batteries. Intelligent 4 steps charging with pre-charge, CC, CV and floating or automatic cut-off, this charger will charge your batteries with very fast speed, with high efficiency and protect your battery life to the max. Aluminum housing, light weight and portable.

Features:

Advanced high frequency switching mode power supply technology.

DC output isolated from AC input.

Input 110 / 230Vac, 50Hz~60Hz.

Charging parameters are insensitive to the AC input line voltage variations.

Completely automatic battery charging: Pre-charging, CC, CV, Absorption, Float or Cut-off.

2 LEDs: LED1 Red (power on), LED2 Red / green (charging/full)..

Possibility to customize charging curve for request.

Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.

Efficiency > 88%.

Forced ventilation with fans.

100% full load burn-in test.

Aluminum casing, light weight, portable.

Technical Specs.:

1) Dimensions(LxWxH): 230 x 135 x 70 mm

2) Net weight: 3.0 KG

3) Max charging voltage(CV): 73 / 73.5 volts

4) Floating voltage: custom-made

5) Max output current (CC): 10 amps

6) Charging method: Pre-charge, CC, CV, floating / trickle or shut off

7) AC input voltage: 110 / 230Vac

8) AC input freq.: 50 / 60 Hz

9) AC plug: custom-made

10) Output connector type: customized by applications

11) Enclosure: Aluminum
