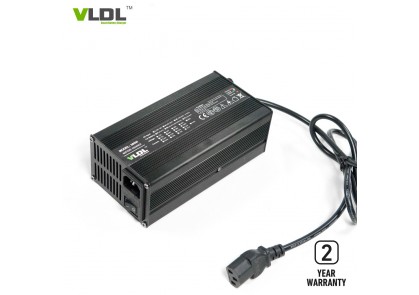

58.8V 5A Smart SLA Battery Charger
Item No.: VL4805
Case: Aluminum
Input voltage: 110V or 230Vac
Rated output: 48V 5A
Max charging voltage: 58.8V
Applied to battery types : 48V Lead-acid, AGM, GEL
Charging EV types: E-scooters, E-motorcycles
Size: 170x 90 x 63mm
Net weight: 1.5KG
Warranty: 2 years
- Product Details

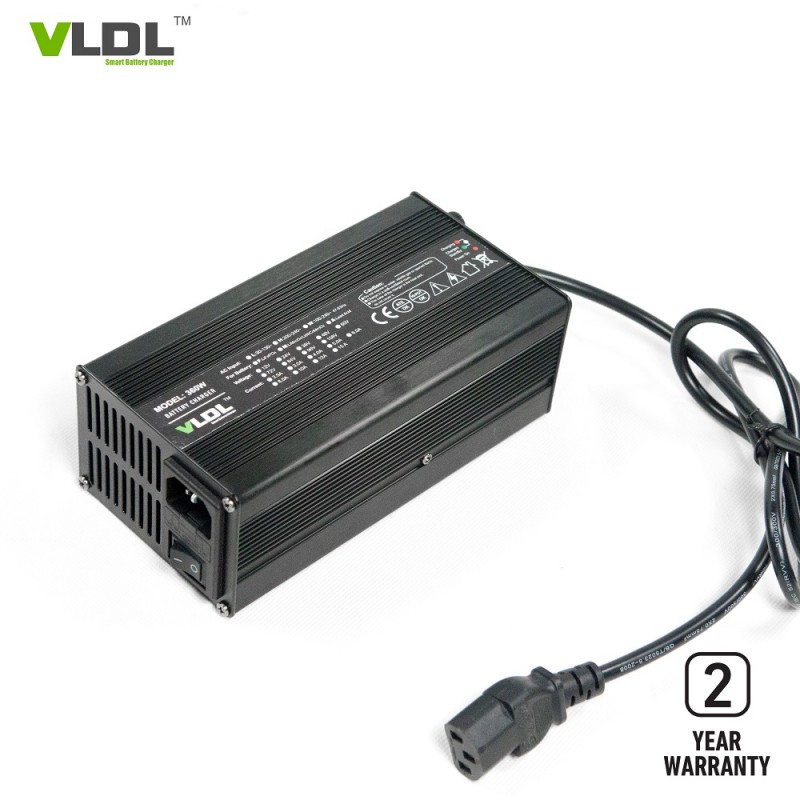

58.8V 5A Smart SLA Battery Charger
Descriptions:
48V 5A automatic SLA battery charger, designed and manufactured by Danl New Enegy Co., LTD. We provide best quality and after-service for our products. Input worldwide 110 to 230Vac and rated output volatge is 48V 5A. Smart max charging voltage is 58.8 for lead acid, SLA, AGM, GEL type batteries. Intelligent 4 steps charging with pre - charge, CC, CV and floating or automatic cut-off, this charger will charge your E-motorcycles / E-Scooters battery very fast, with high efficiency and protect your battery life to the maximum. High quality, factory price and 2 years warranty. As original battery chargers supplier / manufacturer / factory, Danl provide full charging solution for your EV products.
Specifications:
AC input voltage: 110Vac or 230Vac
AC input freq.: 50 / 60 Hz
Rated output: 48V 5Amps
Max charging voltage: 58.8Vdc
Dimensions(LxWxH): 170 x 90 x 63 mm
Net weight: 1.5 KG
Housing: Aluminum
Color: silver or black
Techonolgy:
High Frequency Switching Mode Power Supply
Smart MCU contolled
Protections:
Short circuit, Over-voltage, Over-temperature, Reverse Polarity.
Applications:
Charging 48V SLA, AGM, GEL Battery Powered Electric Motorcycles / Scooters.
Special Function For EV:
1) In-lock signal is available: EV can't start when charging.
2) Remote signal wire is available for connecting control digital display board.
Charging method:
For Lead-acid Battery: pre-charge, CC, CV, floating.
For Lithium Battery: pre-charge, CC, CV, auto cut-off.
Input Plug & Output Connector:
We supply different plugs and connector by customer's applications.
