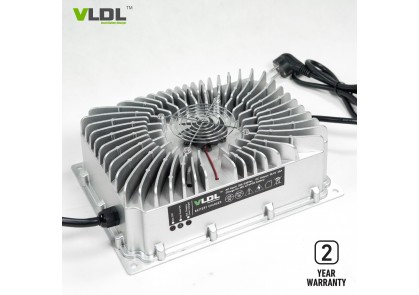

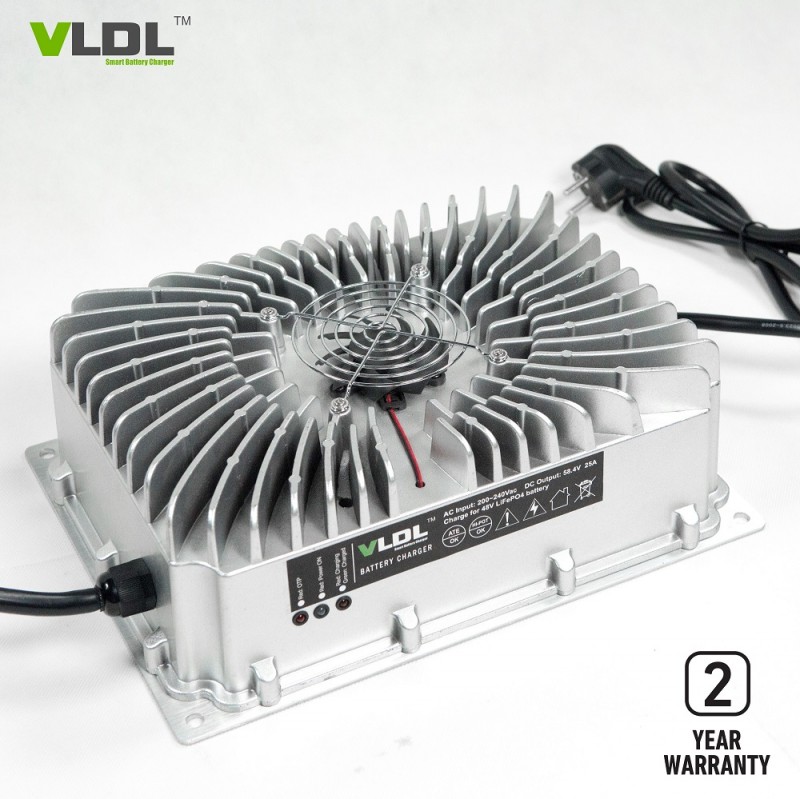

57.6V 25A Waterproof Charger with CAN

57.6V 25A WaterProof / Marine Battery Charger with CAN

Brief Descriptions:

CAN bus Marine Battery Charger 48V 25A with IP65 rate waterproof, is designed for lithium or lead acid (AGM, sealed) battery powered electric cars or boat appliecation, input with PFC worldwide 90~264Vac and rated output voltatge is 48V 25A. Max customized 54.6 / 58.4 / 57.6V for Li-ion batteries or 58.8V for lead-acid batteries. MCU coutrolled and intelligent 4 steps charging with pre-charge, CC, CV and floating or automatic cut-off, this charger will charge your electric motorcycless very fast, with high efficiency.

Features:

Advanced high frequency switching mode power supply technology.

DC output isolated from AC input.

Auto worldwide Input 110 / 230Vac (90 ~ 264Vac) with PFC, 50Hz ~ 60Hz.

Charging parameters are insensitive to the AC input line voltage variations.

Completely automatic battery charging: Pre - charging, CC, CV, Absorption, Float or Cut - off.

2 LEDs: LED1 Red (power on), LED2 Red/green (charging/full)..

Possibility to customize charging curve for request.

Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.

Efficiency > 90%.

Forced ventilation with fans.

100% full load burn-in test.

CAN bus cummunication

Aluminum casing, light weight, portable, on-board.

Technical Specs.:

Dimensions(LxWxH): 310 × 230 × 101 MM

Net weight: 8.0 KG

Max charging voltage(CV): 57.6 volt (customized)

Max output current (CC): 25 amps

Charging method: Pre-charge, CC, CV

Communication: CAN bus

AC input voltage: 90-264 Vac universal

AC input freq.: 50 / 60 Hz

AC plug: custom-made

Output connector type: customized by applications

Enclosure: Aluminum

Waterproof rate: IP65

1,500W waterproof charger        Size: 310×230×101 mm        Net weight: 8.0 KG
Input	Model	Apply to battery types	Floating V	CV (V)	CC (A)	Switching
PFC AC Input: 90 - 264V Frequency: 47~63HZ	VL1260LWP	12V LiFePO4 Battery		14.6V	60A	CC5~8%
	VL1260WP	12V Lead-acid Battery	13.5V	14.7V	60A	CC20%
	VL1460WP	14V AGM Battery	13.5V	14.4V	60A	CC20%
	VL1660WPL	16V LiFePO4 Battery		18.2V	60A	CC5~8%
	VL2445LMWP	24V Li-MnO2 Battery		29.4V	45A	CC5~8%
	VL2445LWP	24V LiFePO4 Battery		29.2V	45A	CC5~8%
	VL2445WP	24V Lead-acid Battery	27.6V	29.4V	45A	CC20%
	VL3630LMWP	36V Li-MnO2 Battery		42V	30A	CC5~8%
	VL3630LWP	36V LiFePO4 Battery		43.8V	30A	CC5~8%
	VL3630WP	36V Lead-acid Battery	41.4V	44.1V	30A	CC20%
	VL4825LMWP	48V Li-MnO2 Battery		54.6V	25A	CC5~8%
	VL4825LWP	48V LiFePO4 Battery		43.8V	25A	CC5~8%
	VL4825WP	48V Lead-acid Battery	55.2V	58.8V	25A	CC20%
	VL6018LWP	60V LiFePO4 Battery		73V	20A	CC5~8%
	VL6018WP	60V Lead-acid Battery	67.5V	73.5V	20A	CC20%
	VL7215LWP	72V LiFePO4 Battery		87.6V	15A	CC5~8%
	VL7215WP	72V Lead-acid Battery	81V	88.2V	15A	CC20%
	VL8413LWP	84V LiFePO4 Battery		102.2V	13A	CC5~8%
	VL8413WP	84V Lead-acid Battery	94.5V	102.9V	13A	CC20%
	VL9612LWP	96V LiFePO4 Battery		116.8V	12A	CC5~8%
	VL9612WP	96V Lead-acid Battery	108V	117.6V	12A	CC20%
Note: customized input / output / plug type / connectors are available.

This 48 volts 25 amps Waterproof Battery Charger is designed for charging electric vehicles which powered by 48V (16S cells) lithium batteries. With water-resit rate IP65 and fully sealed designed without fan cooling. Aluminum casing, light weight, dust-resit and portable. Net weigth: 6 KG, dimensions (L*W*H): 296*216*98 mm (11.6*8.5*3.8 in).

Input voltage is worldwide 110-230 Vac, PFC circuit, frequency 50/60 Hz. You can plug it anywhere in the world with no worry for connecting to the wrong grid voltage.

Rated output is 48 Vdc and 25 Amps, max charging voltage is 54.6 volts or 58.4 volts by your lithium battery types, say 48V LiMOn2, LiFePO4, Li-ion batteries.

Intelligent 4-stage charging method will protect your expensive Li batteries. Our advanced SMPS (Switching Mode Power Supply) technology and MCU controlled makes this charger having automatic smart 4 steps charging: Pre-charge, CC (constant current), CV (constant voltage), Auto cut-off. It can detect battery status then begin to charging accordingly. User just connect our charger to their battery, whatever the battery discharging state is, it can charge the 48V lithium batteries fully with the fastest speed. Fast, safe, on-board, portable and smart.
