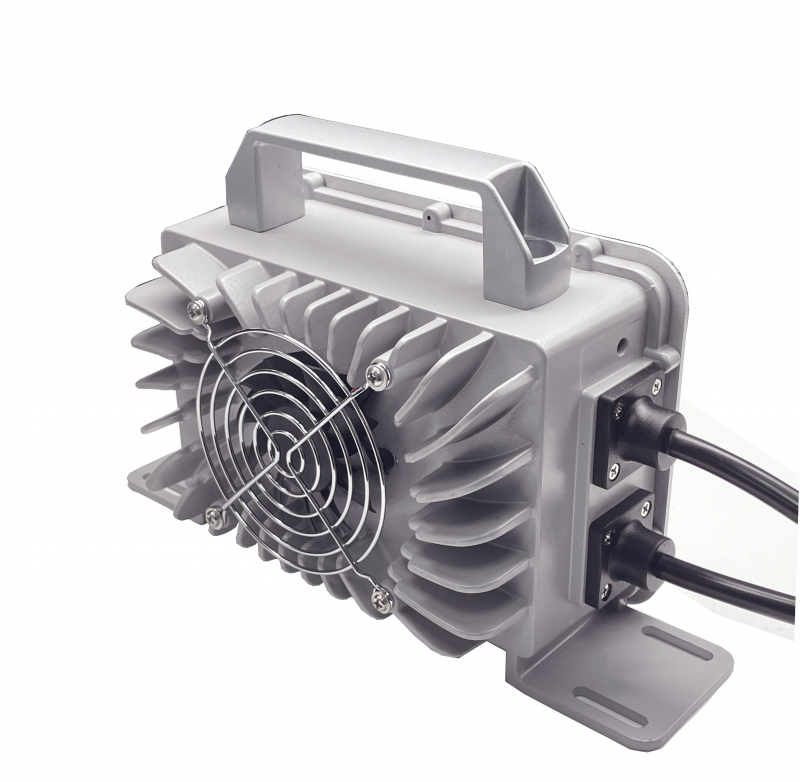

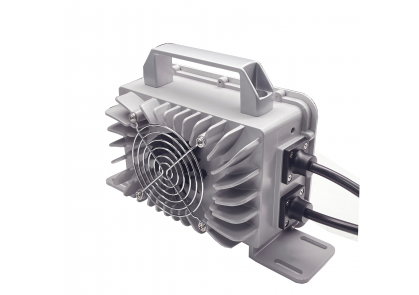

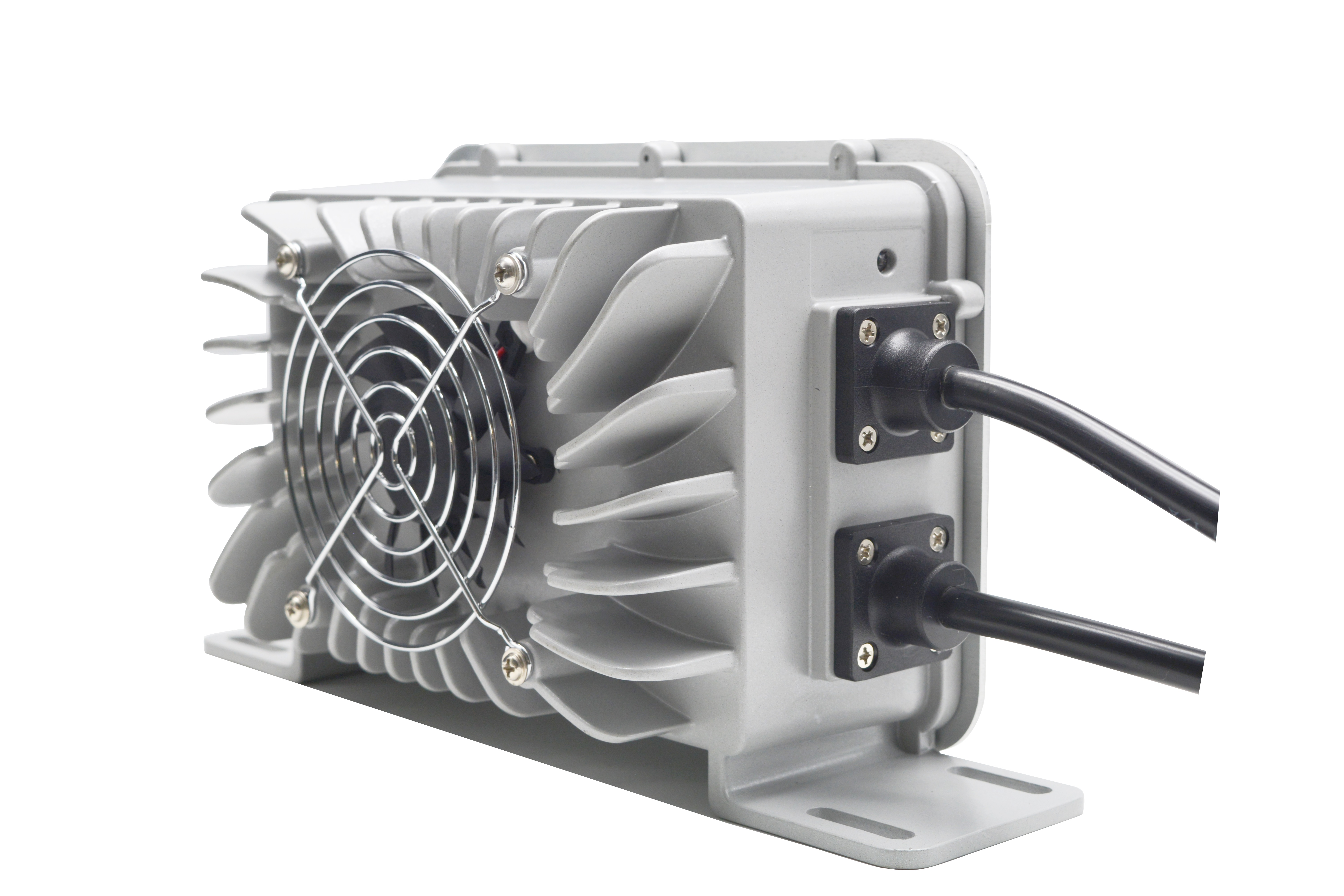

54.6V 48V 10A Waterproof Battery Charger

54.6V 48V 10A Waterproof Battery Charger

Factory price, high quality, 2 years warranty

Charging both 48V Lead-acid or Lithium battery by ONE charger.

No matter your cell voltage is 3V, 3.65V, 4.2V or other voltages, we will set by it and you just choose one mode before charging.

One Charger for 3-mode Battery Types Charging

There is a selector for choosing battery types:

1. LPF: LiFePO4 Battery

2. NCM: LioO2, LiNiO2 and LiMnO2 Battery

3. Lead Acid: AGM, GEL and SLA battery

Just select the button of "SEL" by your battery type before charging and start smart charging with set Pre-charge, CC, CV, Floating or Cut-off automatically.

Do not need to buy three different chargers for your different batteries. Money saving and space saving.

Factory price, high quality with two years warranty.

Charging methods:

Brief Descriptions:

48V 10A output Marine Battery Charger.

IP65 / IP66 Waterproof Rate Rate.

Universal 90~264Vac input voltage with PFC.

54.6 / 58.4 / 58.8V customized for 48V lithium and lead-acid batteries.

Micro-processor controlled and intelligent 4 steps charging。

92% high efficiency.

2 years warranty, high quality.

Specifications:

AC input voltage: universal 90 to 264Vac with PFC

AC input freq.: 50 / 60 Hz

Rated output: 48V 10Amps

Max charging voltage: 54.6V / 58.4V / 58.8V selectable

Waterproof rate: IP65 / IP66

Dimensions(LxWxH): 197 x 134 x 86 mm

Net weight: 3.0 KG

Housing: Aluminum

Color: silver or black

Techonolgy:

High Frequency Switching Mode Power Supply

Smart MCU controlled

Programed multi charging steps

Protections:

Short circuit, Over-voltage, Over-temperature, Reverse Polarity.

Warranty:

Fully 2-year warranty with Free Replacing Policy.

Resposing in 24 hours after getting failed product report from customers.

Applications:

Charging 48V NMC, LPF lithium-ion or AGM/GEL lead acid battery.

Special Function For EV:

1) In-lock signal is available: EV can't start when charging.

2) Remote signal wire is available for connecting control digital display board.

Charging method(programed):

For Lead-acid Battery: pre-charge, CC, CV, floating.

For Lithium Battery: pre-charge, CC, CV, auto cut-off.

Input Plug & Output Connector:

We supply different plugs and connector by customer's applications.
