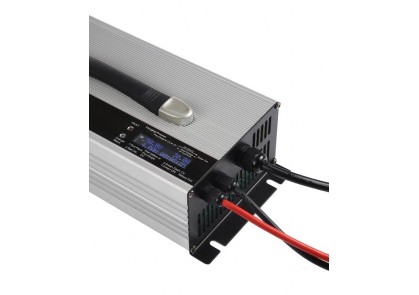

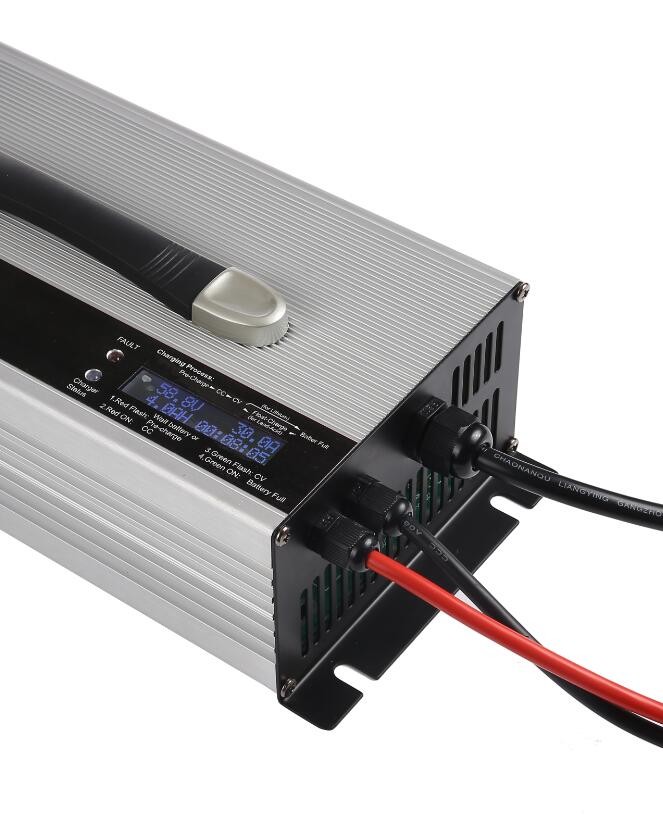

54.6V 40A Lithium Battery Charger

48V 54.6V 40A Smart Battery Charger for Li-ion battery

Brief Descriptions

48V 40A smart lithium battery charger, input with single 110 / 230Vac and rated output voltatge is 48V 40A. Smart max charging voltage is 54.6V / 58.4V / 58.8V for Li-ion,LiFePO4, LiMnO2 batteries. Intelligent 4 steps charging with pre-charge, CC, CV, Floating or Cut-off, this charger will charge your battery powered electric vehicles very fast and safe (automatic lockout when charging), with high efficiency and protect your battery life to the max. High quality, factory price and 2 years warranty.

Features

1) Optional charging methods: Lithium or AGM batteries.

2) Advanced high frequency switching mode power supply technology.

3) DC output isolated from AC input.

4) Automatic worldwide Input 110/230Vac(90~264Vac), 50Hz~60Hz.

5) Charging parameters are insensitive to the AC input line voltage variations.

6) Completely automatic 4 steps charge: pre-charge, CC, CV, floating/trickle or shut-off.

7) Protections: Short circuit, Over - voltage, Over - temperature, Reverse Polarity.

8) Aluminum casing, light weight, portable.

9) 100% full load burn-in test.

10) 2 years warranty.

Technical Specs.:

1) Dimensions(LxWxH): 380 x 150 x 90 mm

2) Net weight: 7.0 KG

3) Max charging voltage(CV): 54.6 volt

4) Floating voltage: /

5) Max output current (CC): 40 amps

6) Charging method: Automatic CC, CV

7) AC input voltage: Single 110 / 240Vac

8) AC input freq.: 50 / 60 Hz

9) AC plug: customized by user’s country

10) Output connector type: customized by applications

11) Enclosure: Aluminum
