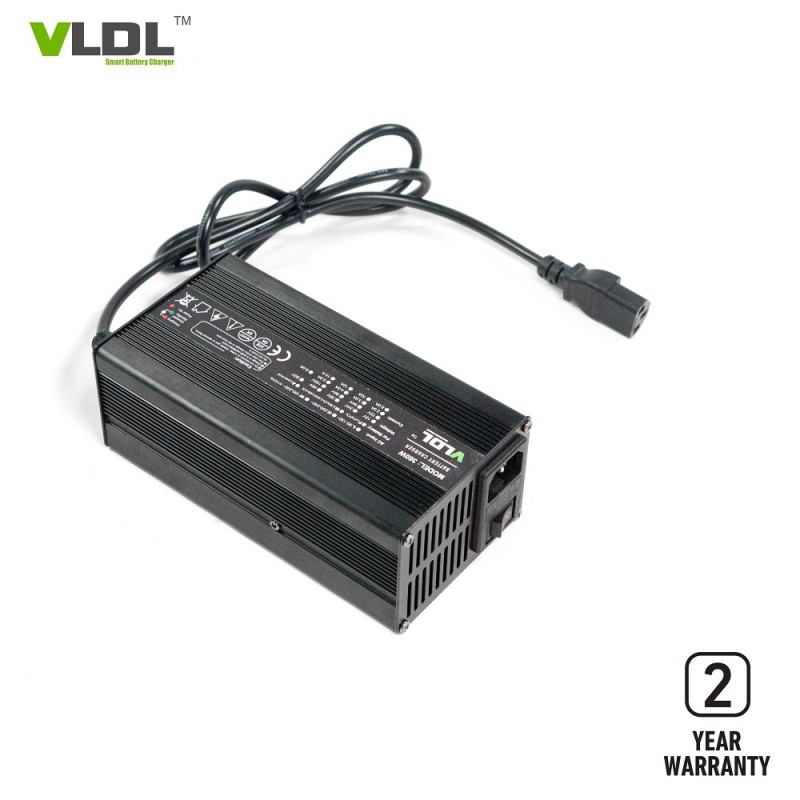

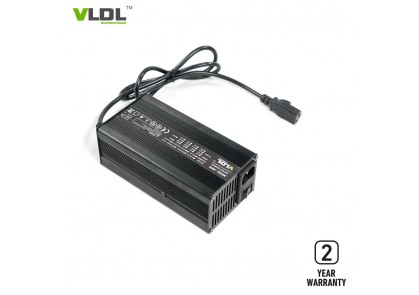

50.4V 5A Li-ion Battery Charger

50.4V 5A Li-ion Battery Charger

Descriptions:

Designed for 48V lithium battery powered Electric Motorcycles. Input with 110 or 230Vac and rated output voltage is 48V 5A. Smart max charging voltage is 54.6 / 58.4V for li-ion type batteries. Intelligent 4 steps charging with pre - charge, CC, CV and floating or automatic cut-off, this charger will charge your E-motorcycles / E-Scooters battery very fast, with high efficiency and protect your battery life to the maximum. High quality, factory price and 2 years warranty. As original battery chargers supplier / manufacturer / factory, Danl provide full charging solution for your EV products.

Specifications:

AC input voltage: 110 or 230Vac

AC input freq.: 50 / 60 Hz

Rated output: 48V 5Amps

Max charging voltage: 50.4Vdc

Dimensions(LxWxH): 170 x 90 x 63 mm

Net weight: 1.5 KG

Housing: Aluminum

Color: silver or black

Techonolgy:

High Frequency Switching Mode Power Supply

Smart MCU contolled

Protections:

Short circuit, Over-voltage, Over-temperature, Reverse Polarity.

Warranty:

Fully 2-year warranty with Free Replacing Policy.

Resposing in 24 hours after getting failed product report from customers.

Applications:

Charging 48V Lithium Battery Powerd Electric Motorcycles / Scooters.

Special Function For EV:

1) In-lock signal is available: EV can't start when charging.

2) Remote signal wire is available for connecting control digital display board.

Charging method:

For Lead-acid Battery: pre-charge, CC, CV, floating.

For Lithium Battery: pre-charge, CC, CV, auto cut-off.

Input Plug & Output Connector:

We supply different plugs and connector by customer's applications.

Related Charger Model of 360W:

Output series: 360W     Size: 170×90×63 mm     Net weight: 1.3 KG
Input	Model	Apply to battery types	Floating V	CV (V)	CC (A)	Switching
AC Input: 110 / 230V Frequency: 47~63HZ	VL1220L	12V LiFePO4 Battery		14.6V	20A	CC5~8%
	VL1220	12V Lead-acid Battery	13.5V	14.7V	20A	CC20%
	VL2412LM	24V Li-MnO2 Battery		29.4V	12A	CC5~8%
	VL2412L	24V LiFePO4 Battery		29.2V	12A	CC5~8%
	VL2412	24V Lead-acid Battery	27.6V	29.4V	12A	CC20%
	VL3608LM	36V Li-MnO2 Battery		42V	8A	CC5~8%
	VL3608L	36V LiFePO4 Battery		43.8V	8A	CC5~8%
	VL3608	36V Lead-acid Battery	41.4V	44.1V	8A	CC20%
	VL4805LM	48V Li-MnO2 Battery		54.6V	5A	CC5~8%
	VL4805L	48V LiFePO4 Battery		43.8V	5A	CC5~8%
	VL4805	48V Lead-acid Battery	55.2V	58.8V	5A	CC20%
	VL6004L	60V LiFePO4 Battery		73V	4A	CC5~8%
	VL6004	60V Lead-acid Battery	67.5V	73.5V	4A	CC20%
	VL7203L	72V LiFePO4 Battery		87.6V	3A	CC5~8%
	VL7203	72V Lead-acid Battery	81V	88.2V	3A	CC20%
Note: customized input / output / plug type / connectors are available.

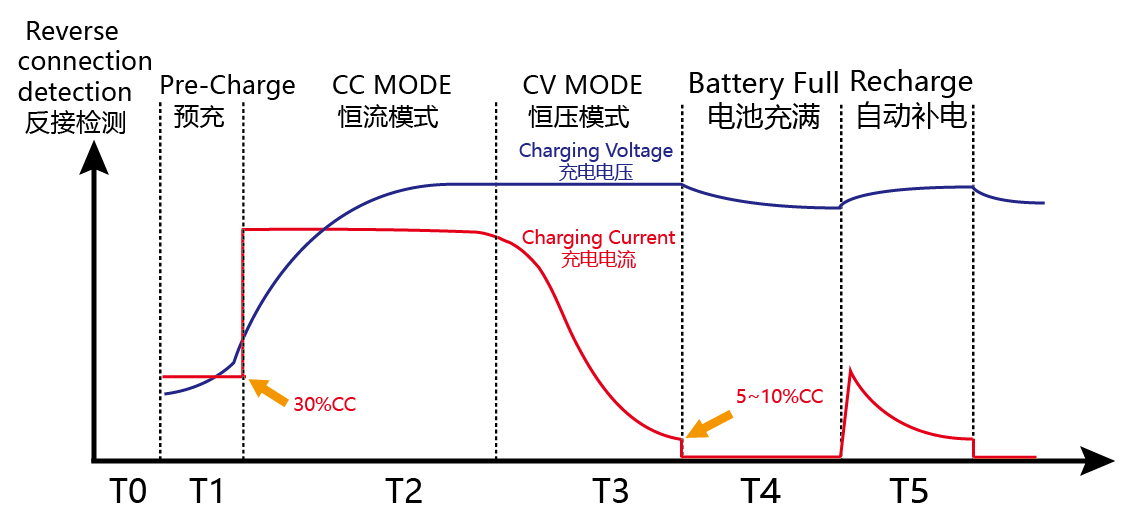

Charging curve:

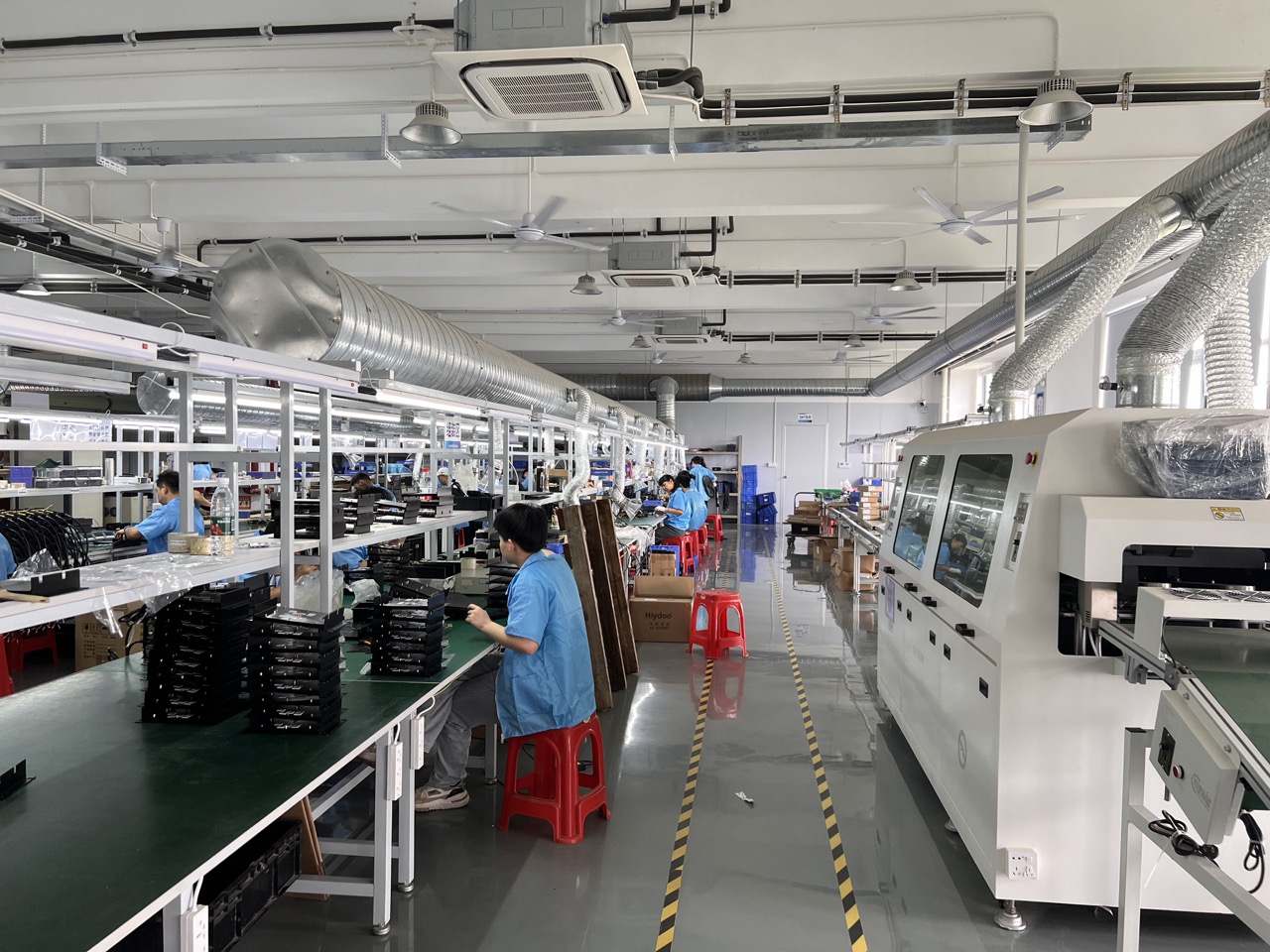

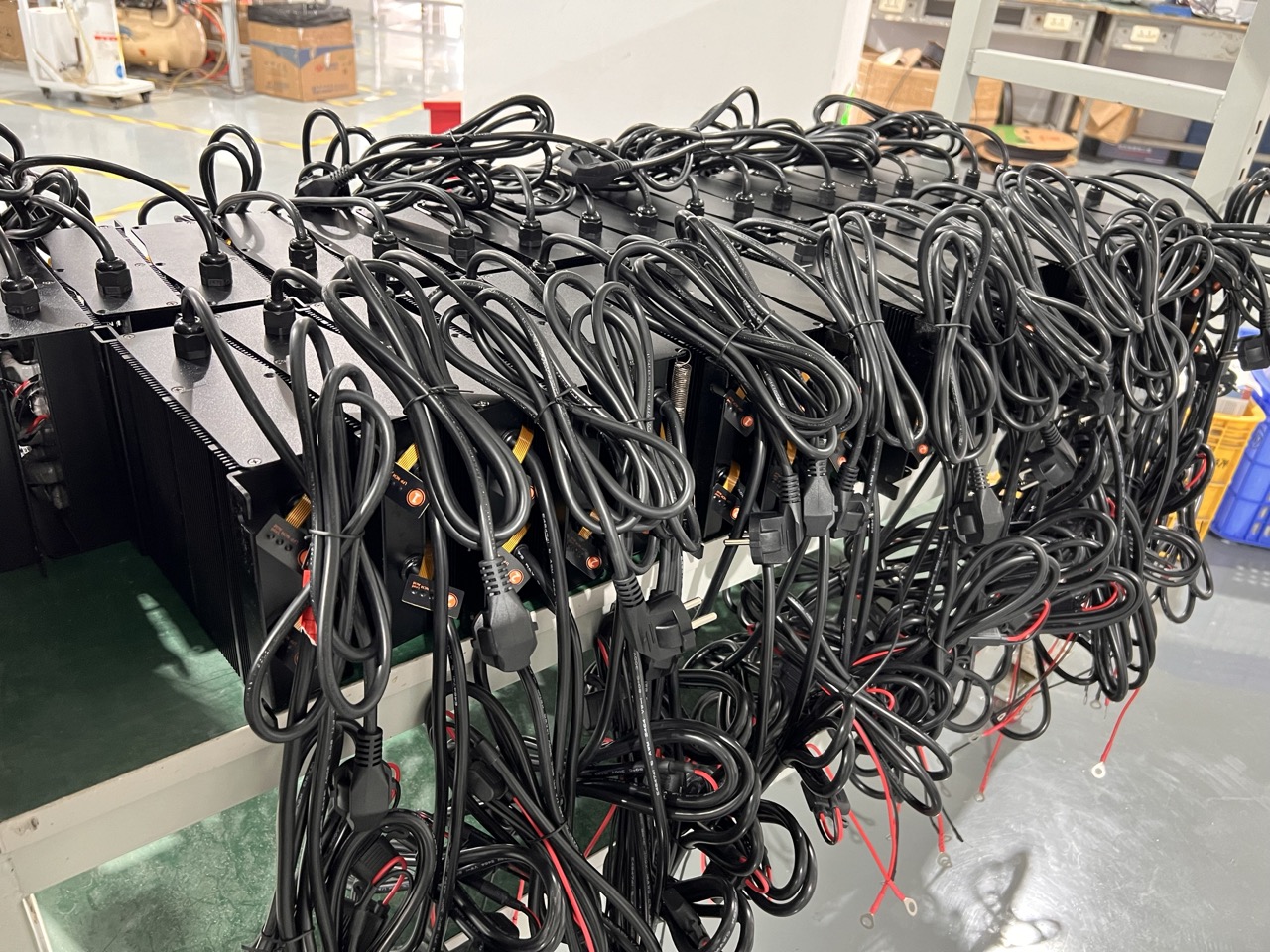

Factory pictures:
