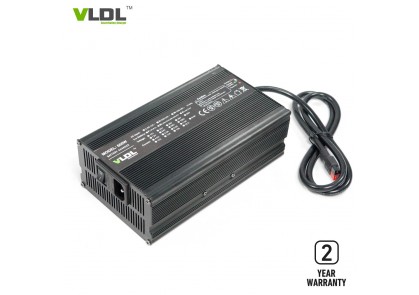

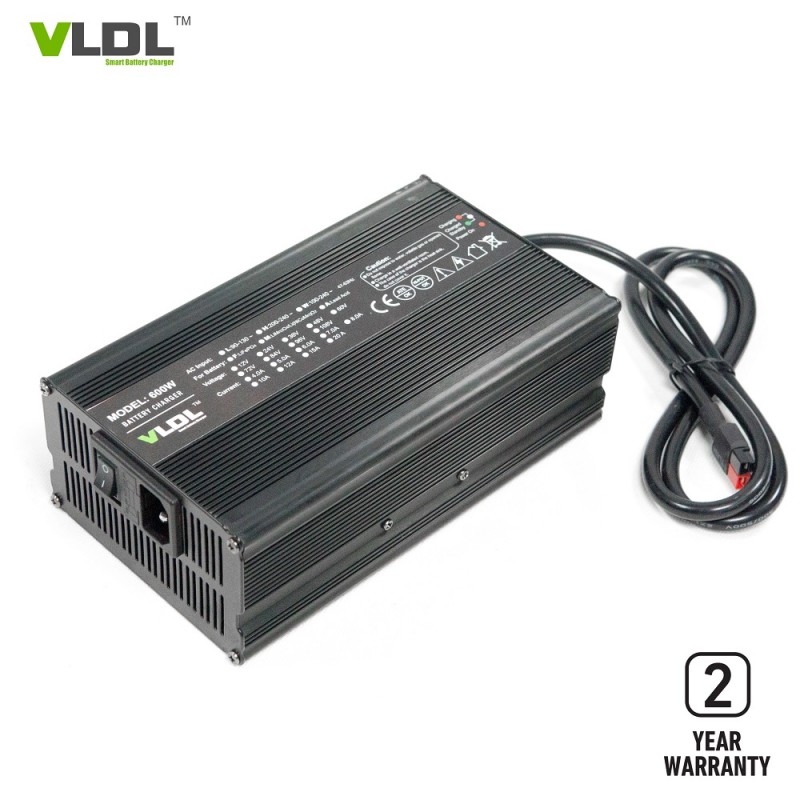

50.4V 10A Lithium Battery Charger

50.4V 10A Lithium-ion Battery Charger

Designed for 12S lithium battery, AC input with 110V or 230V. Smart max charging voltage is 50.4V for Li-ion batteries. Intelligent 4 steps charging with pre-charge, CC, CV and floating or automatic cut-off, this charger will charge your Lithium-ion battery very fast, with high efficiency and protect your battery life to the max.

Features:

◆ Advanced high frequency switching mode power supply technology.

◆ DC output isolated from AC input.

◆ Auto worldwide Input 110/230Vac(90~264Vac) with PFC, 50Hz~60Hz.

◆ Charging parameters are insensitive to the AC input line voltage variations.

◆ Completely automatic battery charging: Pre-charging, CC, CV, Absorption, Float or Cut-off.

◆ 2 LEDs: LED1 Red (power on), LED2 Red/green (charging/full)..

◆ Possibility to customize charging curve for request.

◆ Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.

◆ Efficiency > 95%.

◆ Forced ventilation with fans.

◆ 100% full load burn-in test.

◆ Aluminum casing, light weight, portable.

Technical Specs.:

1) Dimensions(LxWxH): 230 x 120 x 70 mm

2) Net weight: 2.5 KG

3) Max charging voltage(CV): 50.4 Vdc

4) Floating voltage: --

5) Max output current (CC): 10 amps

6) Charging method: Automatic CC, CV

7) AC input voltage: 110Vac or 230Vac

8) AC input freq.: 50 / 60 Hz

9) AC plug: customized by user’s country

10) Output connector type: customized by applications

11) Enclosure: Aluminum

Danl New Energy, as a leading manufacturer of smart battery charger in China, we only offer high quality Chargers and Solutions for all kinds of batteries like Li-ion, LFP, AGM, GEL lead acid battery and voltage covers from 6V to 110V DC charging voltages.

This 50.4V 10A li-ion battery charger is perfectly suit for 12S lithium ion battery. Automatic CC CV fast charging, just plug in and leave it. Easy and high efficiency.

3 years warranty and factory competitive price.
