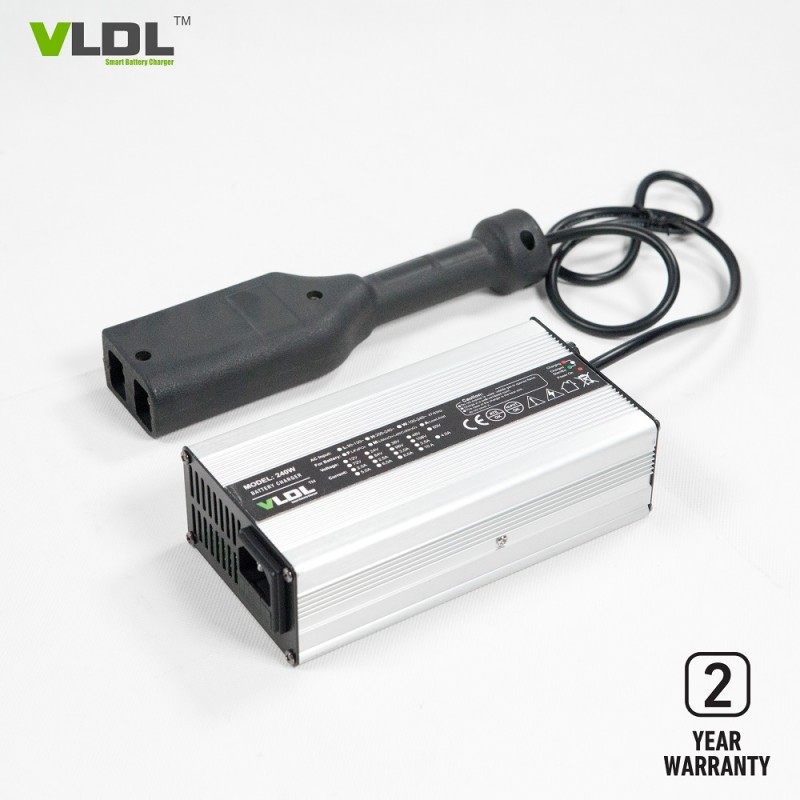

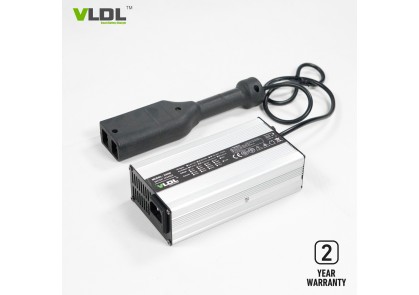

48V 8A Battery Charger

48V 8A Lead Acid / AGM / GEL Battery Charger

Brief Description:

Designed for 48V lead-acid battery, input with single 230Vac and rated output voltatge is 48V 8A. Smart max charging voltage is 58.8V SLA/AGM/GEL batteries. Intelligent 4 steps charging with pre-charge, CC, CV and floating or automatic cut - off, this charger will charge your racing battery very fast, with high efficiency and protect your battery life to the max. High quality, factory price and 2 years warranty.

Features

1) Optional charging methods: Lithium or AGM batteries.

2) Advanced high frequency switching mode power supply technology.

3) DC output isolated from AC input.

4) Input 110/230Vac, 50Hz~60Hz.

5) Charging parameters are insensitive to the AC input line voltage variations.

6) Completely automatic 4 steps charge: pre-charge, CC, CV, floating/trickle or shut-off.

7) Protections: Short circuit, Over - voltage, Over - temperature, Reverse Polarity.

8) Aluminum casing, light weight, portable.

9) 100% full load burn-in test.

10) 2 years warranty.

Technical Specs.:

1) Dimensions(LxWxH): 170 x 90 x 50 mm

2) Net weight: 1.0 KG

3) Max charging voltage(CV): 58.8 volt

4) Floating voltage: /

5) Max output current (CC): 8 amps

6) Charging method: Automatic CC, CV and Float

7) AC input voltage: 230Vac

8) AC input freq.: 50 / 60 Hz

9) AC plug: custom-made

10) Output connector type: customized by applications

11) Enclosure: Aluminum
