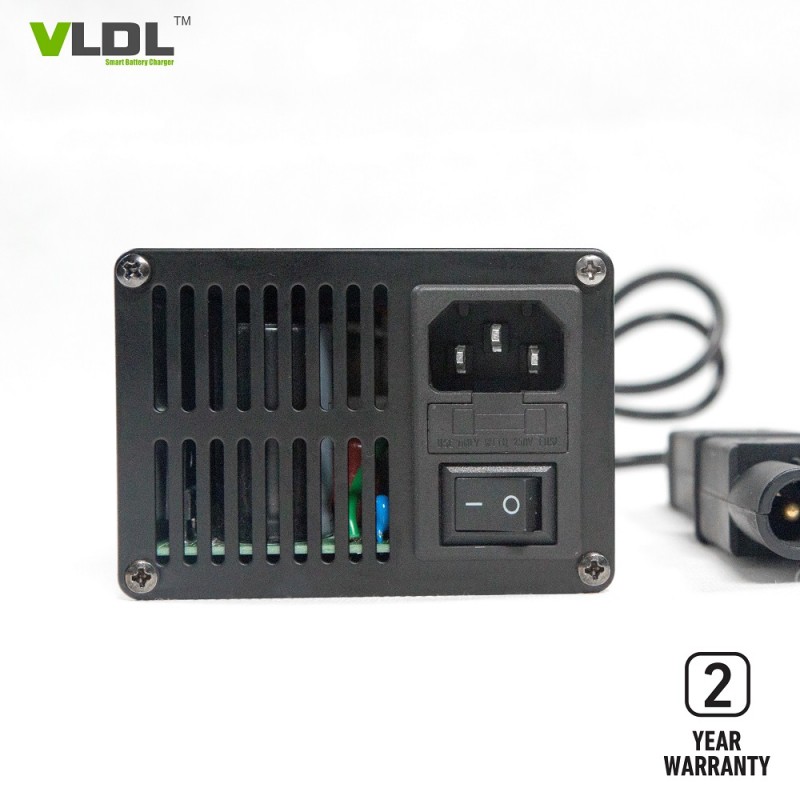

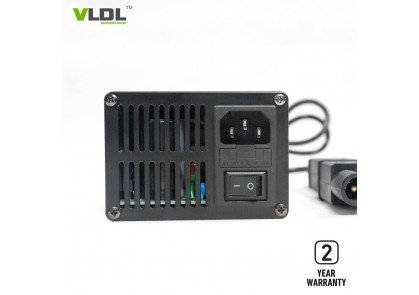

48V 6A Li Battery Charger

PFC 58.4V 5A 6A Lithium Battery Charger, Trickle Charger, 48V E Motorcycle Charger, Aluminium Case, 1.5KG Light weight

Brief Description:

Worldwide Input 110-230Vac with PFC

360 watts 48V 6A fast battery charger for electric scooters and electric motorcycles.

Max 54.6V / 58.4V lithium (LiFePO4, Li-ion, LiMO2) battery packs.

Automatic four steps transition of pre-charge, CC, CV and floating / trickle or shut off.

Aluminum housing, light weight and portable.

2 years warranty, high quality.

Features:

Advanced high frequency switching mode power supply technology.

DC output isolated from AC input.

Auto worldwide Input 110 / 230Vac (90 ~ 264Vac), 50Hz~60Hz.

Charging parameters are insensitive to the AC input line voltage variations.

Completely automatic battery charging: Pre-charging, CC, CV, Absorption, Float or Cut-off.

2 LEDs: LED1 Red (power on), LED2 Red / green (charging/full)..

Possibility to customize charging curve for request.

Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.

Efficiency > 95%.

Forced ventilation with fans.

100% full load burn-in test.

Aluminum casing, light weight, portable.

Technical Specs.:

1) Dimensions(LxWxH): 212 x 105 x 60 mm

2) Net weight: 1.3 KG

3) Max charging voltage(CV): 54.6 / 58.4 volts

4) Floating voltage: customized

5) Max output current (CC): 6 amps

6) Charging method: pre-charge, CC, CV, floating / trickle or shut off

7) AC input voltage: 110 - 240Vac worldwide

8) AC input freq.: 50 / 60 Hz

9) AC plug: customized by user’s country

10) Output connector type: customized by applications

11) Enclosure: Aluminum

Output series: 360W PFC      Size: 212×105×60 mm      Net weight: 1.3 KG
Input	Model	Apply to battery types	Floating V	CV (V)	CC (A)	Switching
PFC AC Input: 110 - 230V Frequency: 47~63HZ	VL1220L	12V LiFePO4 Battery		14.6V	20A	CC5~8%
	VL1220	12V Lead-acid Battery	13.5V	14.7V	20A	CC20%
	VL2412LM	24V Li-MnO2 Battery		29.4V	12A	CC5~8%
	VL24012L	24V LiFePO4 Battery		29.2V	12A	CC5~8%
	VL24012	24V Lead-acid Battery	27.6V	29.4V	12A	CC20%
	VL3608LM	36V Li-MnO2 Battery		42V	8A	CC5~8%
	VL3608L	36V LiFePO4 Battery		43.8V	8A	CC5~8%
	VL3608	36V Lead-acid Battery	41.4V	44.1V	8A	CC20%
	VL4806LM	48V Li-MnO2 Battery		54.6V	6A	CC5~8%
	VL4806L	48V LiFePO4 Battery		43.8V	6A	CC5~8%
	VL4806	48V Lead-acid Battery	55.2V	58.8V	6A	CC20%
	VL6005L	60V LiFePO4 Battery		73V	5A	CC5~8%
	VL6005	60V Lead-acid Battery	67.5V	73.5V	5A	CC20%
	VL7204L	72V LiFePO4 Battery		87.6V	4A	CC5~8%
	VL7204	72V Lead-acid Battery	81V	88.2V	4A	CC20%
Note: customized input / output / plug type / connectors are available.

Quality Control

We have passed Quality Management ISO 9001:2015 and Environmental Management ISO 14001:2015. We control our quality as following 6 steps:

Step 1 Using Famous Brand Components: Only use famous brand and high quality components and choose suppliers with certifications. Guarantee no low quality components get into our warehouse.

Step 2 Inspecting Components: Inspect every batch of incoming components.

Step 3 Qualified Workers Assembling: 2 year qualified workers assemble the battery chargers, high efficiency and low failure rate.

Step 4 Smart Aging System: Using smart aging system to do burn-in test with full load for at least two hours. This system will age battery chargers automatically after setting in computer and record every aging information. Guarantee every battery charger’s components under the good condition.

Step 5 Latest ATE Battery Charger Test System: At last, we do final test by our latest ATE Battery Charger Test System before packing. This system will do more than 10 performances automatic testing and check all functions automatically, recording test data with very fast and precise way, tracking test result, reading, comparing and filing all data, easy to control. Every battery charger has an unique tracking code, when there is a fault on battery charger, we just scan the code and track its manufacturing information.

Step 6 Random Test Before Shipping: Before shipping, we will choose two chargers randomly and test again. This shipment can be released for shipping if there is no problem at random test.
