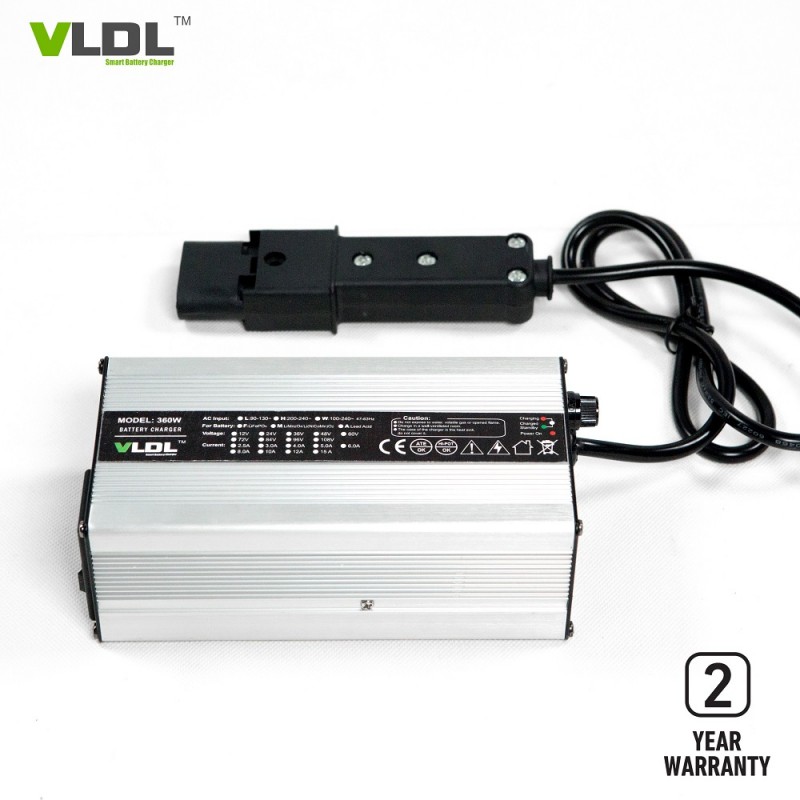

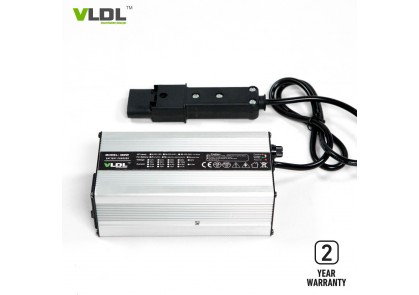

48V 5A PFC Li Battery Charger

48V 5A PFC Battery Charger For Lithium Batteries

Brief Description:

PFC 48V 5Amps intelligent lithium battery charger is designed for lithium or lead acid battery, input with worldwide 90~264Vac with PFC circuit and rated output voltatge is 48 Volt 5 amps. Smart max charging voltage is 58.8V for lead acid type batteries and 54.6 / 58.4V for Li-ion and LiFePO4 batteries. Intelligent 4 steps charging with pre-charge, CC, CV and floating or automatic cut-off, this charger will charge your batteries with very fast speed, with high efficiency and protect your battery life to the max. Aluminum housing, light weight and portable.

Features:

Advanced high frequency switching mode power supply technology.

DC output isolated from AC input.

Auto worldwide Input 110 / 230Vac(90 ~ 264Vac) with PFC, 50Hz~60Hz.

Charging parameters are insensitive to the AC input line voltage variations.

Completely automatic battery charging: Pre-charging, CC, CV, Absorption, Float or Cut-off.

2 LEDs: LED1 Red (power on), LED2 Red / green (charging/full)..

Possibility to customize charging curve for request.

Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.

Efficiency > 90%.

Forced ventilation with fans.

100% full load burn-in test.

Aluminum casing, light weight, portable.

Technical Specs.:

1) Dimensions(LxWxH): 212 x 105 x 60 mm

2) Net weight: 1.5 KG

3) Max charging voltage(CV): 54.6 / 58.4 volts

4) Floating voltage: /

5) Max output current (CC): 5 amps

6) Charging method: Pre-charge, CC, CV

7) AC input voltage: 90~264 Vac with PFC

8) AC input freq.: 50 / 60 Hz

9) AC plug: UK, US, AU, EU, etc.

10) Output connector type: clips, anderson, XLR, etc.

11) Enclosure: Aluminum
