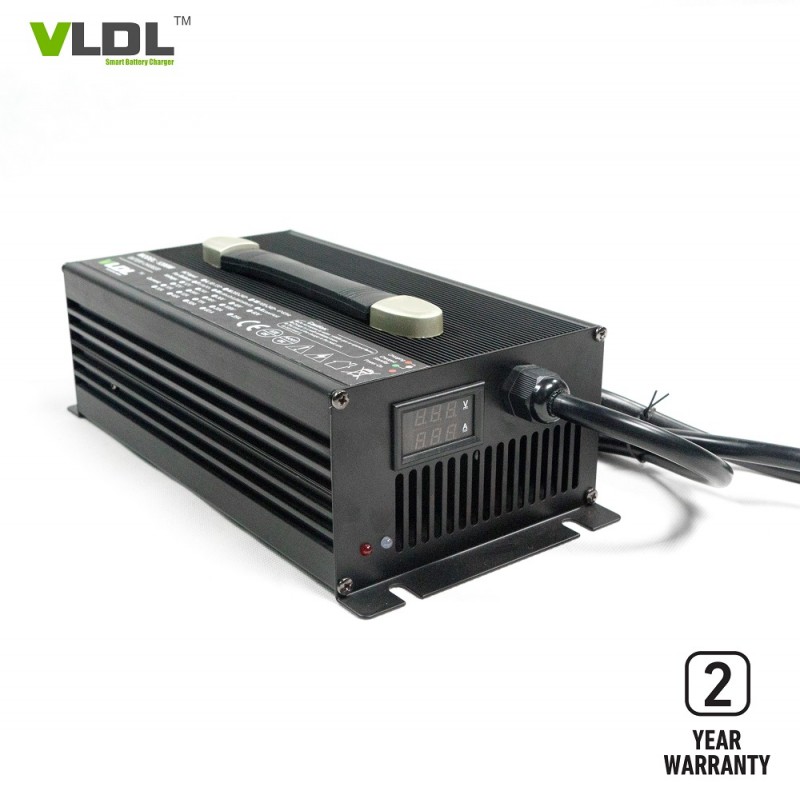

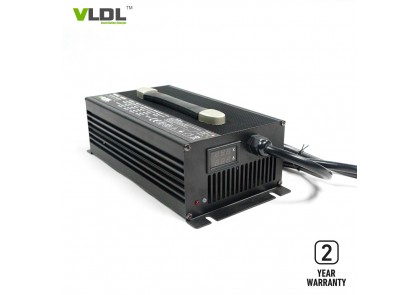

48V 54.6V 35A Li-ion Battery Charger
Color option: Silver or Black
Case material: Aluminum
Size: 330x 150 x 90 mm
Net weight: 5.0 kg
Charging steps: Soft-start, CC, CV
Input voltage: 110 or 230Vac
Charging: max 54.6V or 58.4V, 35Amps
Applied to battery: 48V Li-ion battery pack
Warranty: 3 years
- Product Details
48V 54.6V 35A Li-ion Battery Charger
Smart charging, high quality with 3 years warranty
Brief Description:
48V 35Amps intelligent battery charger is designed for lithium battery, AC input with single 110 or 230Vac and rated output voltage is 48 Volt 35 amps. Smart max charging voltage 54.6Vdc for lithium-ion batteries. Intelligent 4 steps charging with pre-charge, CC, CV and floating or automatic cut-off, this charger will charge your batteries with very fast speed, with high efficiency and protect your battery life to the max. Aluminum housing, light weight and portable.
Features:
Advanced high frequency switching mode power supply technology.
DC output isolated from AC input.
Input 110V or 230Vac, 50Hz~60Hz.
Charging parameters are insensitive to the AC input line voltage variations.
Completely automatic battery charging: Soft-start with small current, CC, CV, Absorption, Float or Cut-off.
2 LEDs: LED1 Red (power on), LED2 Red / green (charging/full)..
Possibility to customize charging curve for request.
Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.
Efficiency > 90%.
Forced ventilation with fans.
100% full load burn-in test.
Aluminum casing, light weight, portable.
Technical Specs.:
Dimensions(LxWxH): 330 x 150 x 90 mm
Net weight: 5.0 KG
Max charging voltage(CV): 54.6Vdc
Max output current (CC): 35 amps
Charging method: Pre-charge, CC, CV
AC input voltage: 230Vac
AC input freq.: 50 / 60 Hz
AC plug: US, UK, AU, EU, etc.
Output connector type: Clips, Anderson, etc.
Enclosure: Aluminum
| Output series: 2,000W Size: 330×150×90 mm Net weight: 5.0 KG | ||||||
| Input | Model | Apply to battery types | Floating V | CV (V) | CC (A) | Switching |
|
AC Input: 110 / 230V
Frequency: 47~63HZ
|
VL12100L | 12V LiFePO4 Battery |
|
14.6V | 100A | CC5~8% |
| VL12100 | 12V Lead-acid Battery | 13.5V | 14.7V | 100A | CC20% | |
| VL14100 | 14V AGM Battery | 13.5V | 14.4V | 100A | CC20% | |
| VL16100L | 16V LiFePO4 Battery |
|
18.2V | 100A | CC5~8% | |
| VL2460LM | 24V Li-MnO2 Battery |
|
29.4V | 60A | CC5~8% | |
| VL2460L | 24V LiFePO4 Battery |
|
29.2V | 60A | CC5~8% | |
| VL2460 | 24V Lead-acid Battery | 27.6V | 29.4V | 60A | CC20% | |
| VL3640LM | 36V Li-MnO2 Battery |
|
42V | 40A | CC5~8% | |
| VL3640L | 36V LiFePO4 Battery |
|
43.8V | 40A | CC5~8% | |
| VL3640 | 36V Lead-acid Battery | 41.4V | 44.1V | 40A | CC20% | |
| VL4830LM | 48V Li-MnO2 Battery |
|
54.6V | 30A | CC5~8% | |
| VL4830L | 48V LiFePO4 Battery |
|
43.8V | 30A | CC5~8% | |
| VL4830 | 48V Lead-acid Battery | 55.2V | 58.8V | 30A | CC20% | |
| VL6025L | 60V LiFePO4 Battery |
|
73V | 25A | CC5~8% | |
| VL6025 | 60V Lead-acid Battery | 67.5V | 73.5V | 25A | CC20% | |
| VL7220L | 72V LiFePO4 Battery |
|
87.6V | 20A | CC5~8% | |
| VL7220 | 72V Lead-acid Battery | 81V | 88.2V | 20A | CC20% | |
|
|
VL8418L | 84V LiFePO4 Battery |
|
102.2V | 18A | CC5~8% |
|
|
VL8418 | 84V Lead-acid Battery | 94.5V | 102.9V | 18A | CC20% |
|
|
VL9616L | 96V LiFePO4 Battery |
|
116.8V | 16A | CC5~8% |
|
|
VL9616 | 96V Lead-acid Battery | 108V | 117.6V | 16A | CC20% |
| Note: customized input / output / plug type / connectors are available. | ||||||
