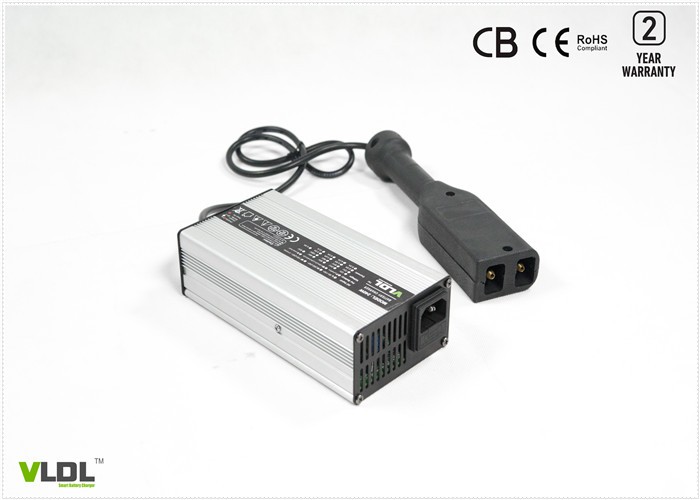

48V 4A E-Bike Charger

48V 4A E-Bike Charger

Brief Descriptions:



Designed for 48V lithium or lead acid(AGM, sealed) battery powered electric motorcycles, input worldwide 110 to 230Vac and rated output voltatge is 48V 4A. Smart max charging voltage is 58.8V for lead acid type batteries and 58.4V for LiFePO4 batteries. Intelligent 4 steps charging with pre-charge, CC, CV and floating or automatic cut-off, this charger will charge your electric motorcycless very fast, with high efficiency and pretect your battery life maximumly.



Technical Specs.:



1) Dimensions(LxWxH): 170 x 90 x 50 mm

2) Net weight: 1.0 KG

3) Max charging voltage(CV): 58.4V / 58.8V

4) Floating voltage: customized

5) Max output current (CC): 4 amps

6) Charging method: pre-charge, CC, CV, floating / trickle or shut off

7) AC input voltage: 110 - 240Vac

8) AC input freq.: 50 / 60 Hz

9) AC plug: customized by user’s country

10) Output connector type: customized by applications

11) Enclosure: Aluminum



Output series: 240W       Size: 170×90×50 mm       Net weight: 1.0 KG
Input	Model	Apply to battery types	Floating V	CV (V)	CC (A)	Switching
AC Input: 85~264V   Frequency: 47~63HZ	VL1210L	12V LiFePO4 Battery		14.6V	10A	CC5~8%
	VL1210	12V Lead-acid Battery	13.5V	14.7V	10A	CC20%
	VL2407LM	24V Li-MnO2 Battery		29.4V	7A	CC5~8%
	VL2407L	24V LiFePO4 Battery		29.2V	7A	CC5~8%
	VL2407	24V Lead-acid Battery	27.6V	29.4V	7A	CC20%
	VL3605LM	36V Li-MnO2 Battery		42V	5A	CC5~8%
	VL3605L	36V LiFePO4 Battery		43.8V	5A	CC5~8%
	VL3605	36V Lead-acid Battery	41.4V	44.1V	5A	CC20%
	VL4804LM	48V Li-MnO2 Battery		54.6V	4A	CC5~8%
	VL4804L	48V LiFePO4 Battery		43.8V	4A	CC5~8%
	VL4804	48V Lead-acid Battery	55.2V	58.8V	4A	CC20%
	VL6003L	60V LiFePO4 Battery		73V	3A	CC5~8%
	VL6003	60V Lead-acid Battery	67.5V	73.5V	3A	CC20%
	VL72025L	72V LiFePO4 Battery		87.6V	2.5A	CC5~8%
	VL72025	72V Lead-acid Battery	81V	88.2V	2.5A	CC20%
Note: customized input / output / plug type / connectors are available.













































Product Information



Overview



VLDL Smart Battery Charger is a fully automatic 4 steps charging with Pre-charge, CC, CV and Floating/shut-off intelligent battery charger. Charging faster and accurately than conventional big and heavy chargers. The pre-charge step can active your low voltage battery and protect your extremely discharged batteries. After pre-charging, CC step will charge with Constant Current with very fast speed to reach battery’s max voltage. Then CV step can charge with Constant Voltage, the charging current begins to drop at this step. At last, Floating step charges with very small current when charger detects battery’s capacity was charged almost fully. The float charge or called trickle charge holds battery at 100% ready state and charger can be left on without worry of undercharge or overcharge.Or if your battery is lithium battery type, our charger can set to be shut off when battery is fully charged.



VLDL chargers have worldwide input voltage 110-240Vac, some models was designed with PFC circuit. Charger automatically operates on voltage of 110Vac or 240Vac when user connects it to the local wall socket. We customize input plug and output connector types by customer’s request and meet local applications fully.



VLDL smart battery chargers are widely applied to electric vehicles including e-bikes, e-scooters, e-mobility, e-skateboards, e-motorcycles, e-golf carts, electric floor sweepers etc., whatever battery types your electric vehicles powered by, lithium(LiFePO4, Li-ion, LiMo2, Li-polymer etc.) or lead acid (AGM, SLA, GEL, Flooded, Deep cycles etc.), our charger can charge it with high speed and intelligent method.



Additional information



DANL New Energy is a 15 years battery chargers manufacturer/factory/supplier. We design and manufacture all by ourselves. We control the quality with high level and have been updating our technology to the latest. We promise 2 years full warranty for all of our battery chargers. Best quality and factory price are worth to be your sincere supplier of battery charger market.
