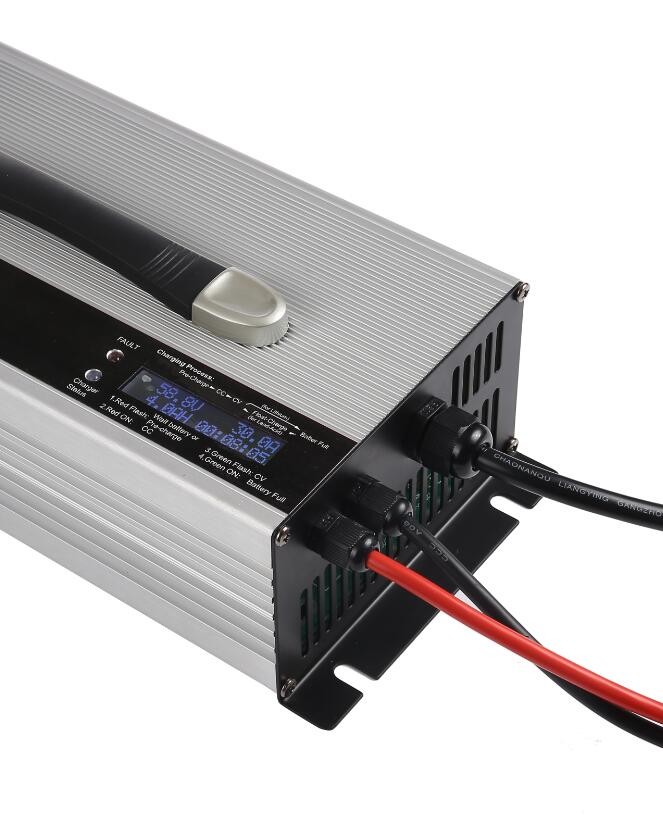

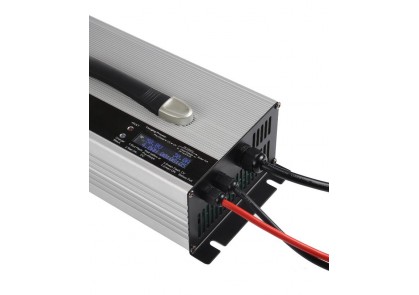

48V 40A Lead Acid Battery Charger
Item No.: VL4840
Size: 380 x 150 x 90 mm
Net weight: 6.5 KG
Case: Aluminum
AC input voltage: Single 110 or 230Vac
AC input freq.: 50 / 60 Hz
Output-rated: 48V 40A
Output-max: 58.8V 40A
Charging method: Automatic CC, CV and Floating
Warranty: 2 Years
- Product Details
Smart 48V 40A Lead Acid Battery Charger
Brief Descriptions
48V 40A lead acid battery charger, input with single 110 / 230Vac and rated output voltage is 48V 40A. Smart max charging voltage is 58.8V for SLA, AGM, GEL batteries. Intelligent 4 steps charging with pre-charge, CC, CV, Floating or Cut-off, this charger will charge your battery powered electric vehicles very fast and safe (automatic lockout when charging), with high efficiency and protect your battery life to the max. High quality, factory price and 2 years warranty.
Features
Optional charging methods: 48V Lead Acid batteries.
Advanced high frequency switching mode power supply technology.
DC output isolated from AC input.
Input voltage 110 or 230Vac, 50Hz~60Hz.
Charging parameters are insensitive to the AC input line voltage variations.
Completely automatic 4 steps charge: pre-charge, CC, CV, floating/trickle or shut-off.
Protections: Short circuit, Over - voltage, Over - temperature, Reverse Polarity.
Aluminum casing, light weight, portable.
100% full load burn-in test.
2 years warranty.
Technical Specs.:
Dimensions(LxWxH): 380 x 150 x 90 mm
Net weight: 6.5 KG
Max charging voltage(CV): 58.8 volt or customized
Floating voltage: 57.6V
Max output current (CC): 40 amps
Charging method: Automatic CC, CV, Floating
AC input voltage: Single 110 / 230Vac
AC input freq.: 50 / 60 Hz
AC plug: customized by user’s country
Output connector type: customized by applications
Enclosure: Aluminum
| Output series: 2,500W Size: 380×150×90 mm Net weight: 6.5 KG | ||||||
| Input | Model | Apply to battery types | Floating V | CV (V) | CC (A) | Switching |
|
AC Input: 110 / 230V
Frequency: 47~63HZ
|
VL1290L | 12V LiFePO4 Battery |
|
14.6V | 90A | CC5~8% |
| VL1290 | 12V Lead-acid Battery | 13.5V | 14.7V | 90A | CC20% | |
| VL1490 | 14V AGM Battery | 13.5V | 14.4V | 90A | CC20% | |
| VL1690L | 16V LiFePO4 Battery |
|
18.2V | 90A | CC5~8% | |
| VL2465LM | 24V Li-MnO2 Battery |
|
29.4V | 65A | CC5~8% | |
| VL2465L | 24V LiFePO4 Battery |
|
29.2V | 65A | CC5~8% | |
| VL2465 | 24V Lead-acid Battery | 27.6V | 29.4V | 65A | CC20% | |
| VL3650LM | 36V Li-MnO2 Battery |
|
42V | 50A | CC5~8% | |
| VL3650L | 36V LiFePO4 Battery |
|
43.8V | 50A | CC5~8% | |
| VL3650 | 36V Lead-acid Battery | 41.4V | 44.1V | 50A | CC20% | |
| VL4840LM | 48V Li-MnO2 Battery |
|
54.6V | 40A | CC5~8% | |
| VL4840L | 48V LiFePO4 Battery |
|
43.8V | 40A | CC5~8% | |
| VL4840 | 48V Lead-acid Battery | 55.2V | 58.8V | 40A | CC20% | |
| VL6025L | 60V LiFePO4 Battery |
|
73V | 25A | CC5~8% | |
| VL6025 | 60V Lead-acid Battery | 67.5V | 73.5V | 25A | CC20% | |
| VL7220L | 72V LiFePO4 Battery |
|
87.6V | 20A | CC5~8% | |
| VL7220 | 72V Lead-acid Battery | 81V | 88.2V | 20A | CC20% | |
| VL8418L | 84V LiFePO4 Battery |
|
102.2V | 18A | CC5~8% | |
| VL8418 | 84V Lead-acid Battery | 94.5V | 102.9V | 18A | CC20% | |
| VL9616L | 96V LiFePO4 Battery |
|
116.8V | 16A | CC5~8% | |
| VL9616 | 96V Lead-acid Battery | 108V | 117.6V | 16A | CC20% | |
|
Note: customized input / output / plug type / connectors are available. |
||||||
