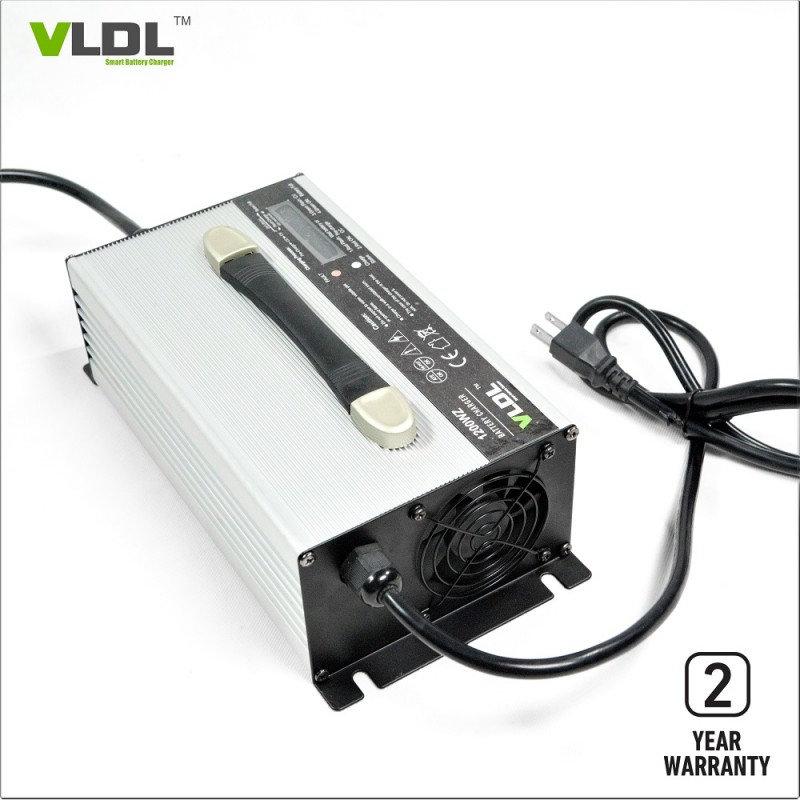

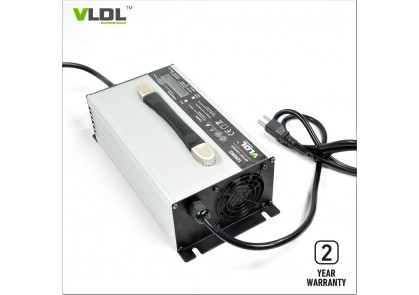

48V 35A Lithium Battery Charger

Lithium Battery Charger 48V 35A, High Power, Aluminum Case, 2 Years Warranty

Brief Description:

48V 35Amps intelligent battery charger is designed for lithium battery, input with single 110 or 230Vac and rated output voltatge is 48 Volt 35 amps. Smart max charging voltage is 58.8V for lead acid type batteries and 56.4 / 57.8 / 58.4V for Lithium batteries. Intelligent 4 steps charging with pre-charge, CC, CV and floating or automatic cut-off, this charger will charge your batteries with very fast speed, with high efficiency and protect your battery life to the max. Aluminum housing, light weight and portable.

Features:

Advanced high frequency switching mode power supply technology.

DC output isolated from AC input.

Input 110V or 230Vac, 50Hz~60Hz.

Charging parameters are insensitive to the AC input line voltage variations.

Completely automatic battery charging: Pre-charging, CC, CV, Absorption, Float or Cut-off.

2 LEDs: LED1 Red (power on), LED2 Red / green (charging/full)..

Possibility to customize charging curve for request.

Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.

Efficiency > 90%.

Forced ventilation with fans.

100% full load burn-in test.

Aluminum casing, light weight, portable.

Technical Specs.:

1) Dimensions(LxWxH): 330 x 150 x 90 mm

2) Net weight: 6.5 KG

3) Max charging voltage(CV): 54.6 / 57.8 / 58.4 volts

4) Floating voltage: /

5) Max output current (CC): 35 amps

6) Charging method: Pre-charge, CC, CV

7) AC input voltage: 230Vac

8) AC input freq.: 50 / 60 Hz

9) AC plug: US, UK, AU, EU, etc.

10) Output connector type: Clips, Anderson, etc.

11) Enclosure: Aluminum
