48V 30A Lithium ion Battery Charger
Item No.: VL4830L
Casing material: Aluminum
Color option: Black or Siliver
Input Voltage: Single 110V or 230Vac
Max charging: customized 54.6V, 57.8V, 58.4V
Applied to battery types: 48V LiFePO4, Li-ion battery
Charging EV types: E-cars
Charging method: CC, CV and Automatic Cut-off
Net weight: 5.5 KG
Size: 330 x 150 x 90 mm
- Product Details

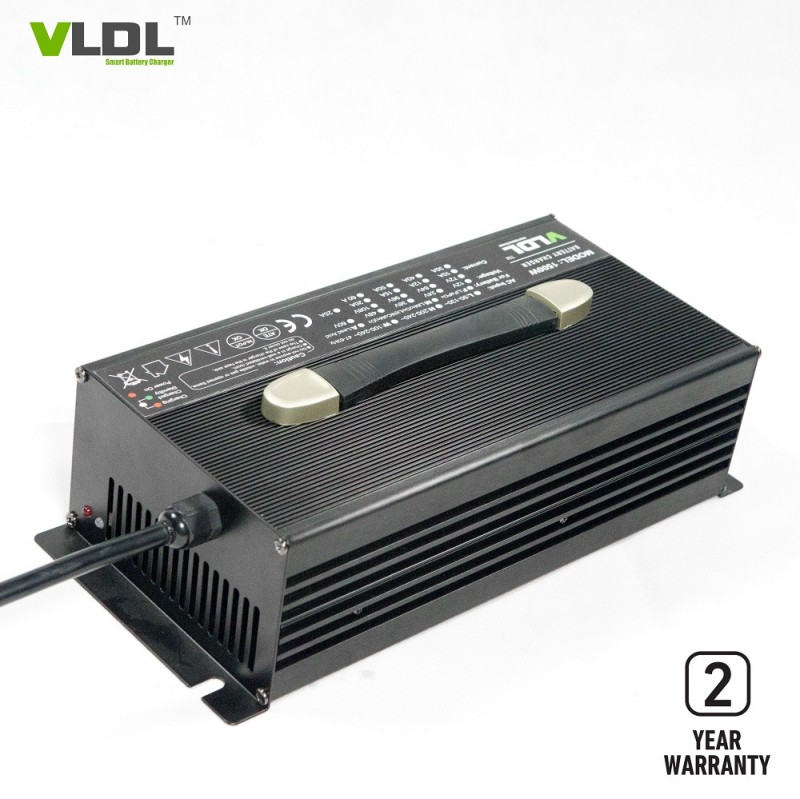

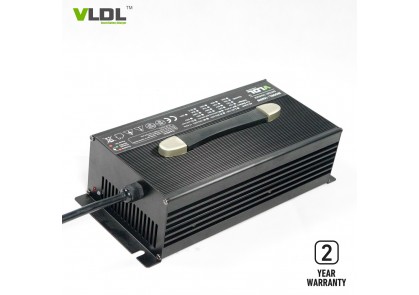

48V 30A Lithium ion Battery Charger
Brief Description:
48V 30Amps intelligent battery charger is designed for lithium or lead acid battery, input with single 110 or 230Vac and rated output voltage is 48 Volt 30 amps. Smart max charging voltage is 58.8V for lead acid type batteries and 56.4 / 57.8 / 58.4V for Lithium batteries. Intelligent 4 steps charging with pre-charge, CC, CV and floating or automatic cut-off, this charger will charge your batteries with very fast speed, with high efficiency and protect your battery life to the max. Aluminum housing, light weight and portable.
Technical Specs.:
Dimensions(LxWxH): 330 x 150 x 90 mm
Net weight: 5.5 KG
Max charging voltage(CV): 54.6 / 57.8 / 58.4 volts
Floating voltage: custom-made
Max output current (CC): 30 amps
Charging method: Pre-charge, CC, CV, floating / trickle or shut off
AC input voltage: single 110V or 230Vac
AC input freq.: 50 / 60 Hz
AC plug: custom-made
Output connector type: customized by applications
Enclosure: Aluminum
| Output series: 2,000W Size: 330×150×90 mm Net weight: 6.5 KG | ||||||
| Input | Model | Apply to battery types | Floating V | CV (V) | CC (A) | Switching |
|
AC Input: 110 / 230V
Frequency: 47~63HZ
|
VL12100L | 12V LiFePO4 Battery | 14.6V | 100A | CC5~8% | |
| VL12100 | 12V Lead-acid Battery | 13.5V | 14.7V | 100A | CC20% | |
| VL14100 | 14V AGM Battery | 13.5V | 14.4V | 100A | CC20% | |
| VL16100L | 16V LiFePO4 Battery | 18.2V | 100A | CC5~8% | ||
| VL2460LM | 24V Li-MnO2 Battery | 29.4V | 60A | CC5~8% | ||
| VL2460L | 24V LiFePO4 Battery | 29.2V | 60A | CC5~8% | ||
| VL2460 | 24V Lead-acid Battery | 27.6V | 29.4V | 60A | CC20% | |
| VL3640LM | 36V Li-MnO2 Battery | 42V | 40A | CC5~8% | ||
| VL3640L | 36V LiFePO4 Battery | 43.8V | 40A | CC5~8% | ||
| VL3640 | 36V Lead-acid Battery | 41.4V | 44.1V | 40A | CC20% | |
| VL4830LM | 48V Li-MnO2 Battery | 54.6V | 30A | CC5~8% | ||
| VL4830L | 48V LiFePO4 Battery | 43.8V | 30A | CC5~8% | ||
| VL4830 | 48V Lead-acid Battery | 55.2V | 58.8V | 30A | CC20% | |
| VL6025L | 60V LiFePO4 Battery | 73V | 25A | CC5~8% | ||
| VL6025 | 60V Lead-acid Battery | 67.5V | 73.5V | 25A | CC20% | |
| VL7220L | 72V LiFePO4 Battery | 87.6V | 20A | CC5~8% | ||
| VL7220 | 72V Lead-acid Battery | 81V | 88.2V | 20A | CC20% | |
| VL8418L | 84V LiFePO4 Battery | 102.2V | 18A | CC5~8% | ||
| VL8418 | 84V Lead-acid Battery | 94.5V | 102.9V | 18A | CC20% | |
| VL9616L | 96V LiFePO4 Battery | 116.8V | 16A | CC5~8% | ||
| VL9616 | 96V Lead-acid Battery | 108V | 117.6V | 16A | CC20% | |
| Note: customized input / output / plug type / connectors are available. | ||||||
48V 30A Lithium Battery Charger
This smart 48V 30A Lithium Battery Charger can charge fast for a 48V lithium ion or LiFePO4 battery pack range from 90Ah to 180Ah. Charging time is from 3-6 hours depending on battery’s capacity.
Single input 110Vac (90~132Vac range) or 230Vac (180~264Vac range) is available for different countries. We also provide free different AC plug types, such as US type, Euro type, UK type etc.
Our 48V 30A lithium ion battery charger is intelligent and controlled by microprocessor, high frequency switching mode power supply technology battery charger. When the AC power on and it’s connected to your 48V lithium battery pack, it begins to detect your battery state automatically and then start CC (constant current), CV (constant voltage) charging steps. It turns to Green light once your battery pack reaches to target voltage 54.6V or 58.4V which the max voltage is customized. All charging cycles are automatic, if you leave the charger on, it start a new cycle of charging when detect battery is discharged. At the end of the charging cycle, charger’s charging current is very small (we often set 8% as the switching point of turning to green) in order to protect battery’s life.
For the output connector, we customize by your technical requests. We usually provide free Alligator Clips, Anderson, Ring Terminals or only Wire out with Bared Leads in order to meet your special applications. Just tell us and we trust we can meet your requirements.
As a 15 years China Battery Charger Manufacturer, we have being earned much reputation in this industry with our high quality charger and best service, also our reasonable price is your best choice.
