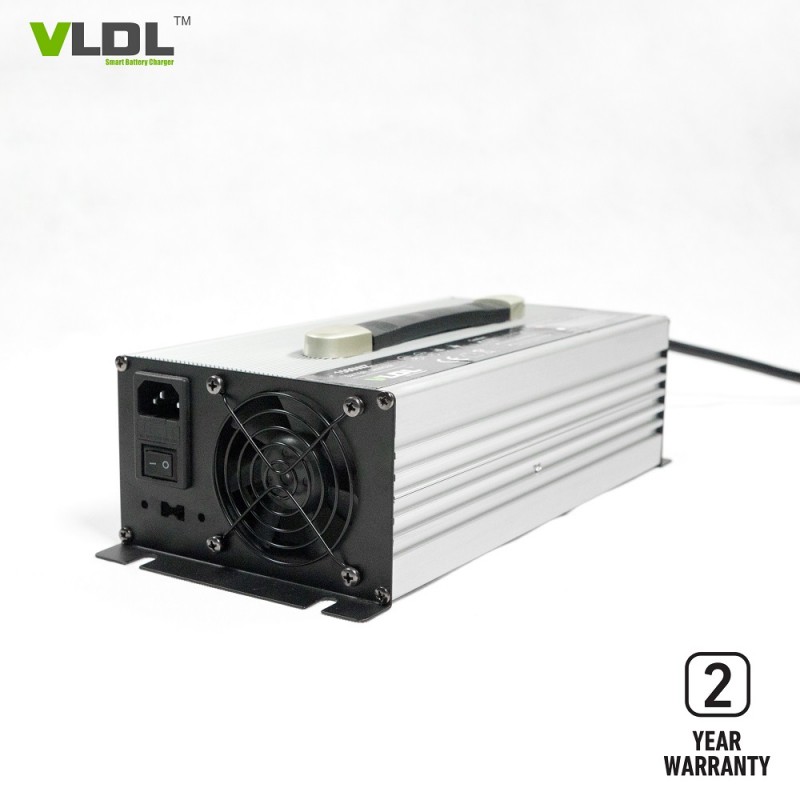

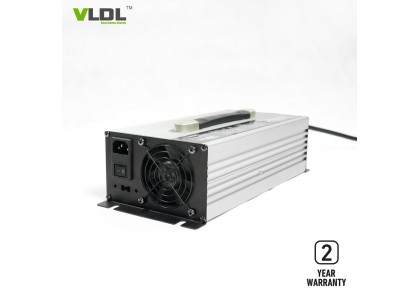

48V 30A Lead Acid Battery Charger
Item No.: VL4830
Case material: Aluminum
Input voltage: 230Vac
Rated output: 48V 30A
Max charging: 58.8Vdc
Applied to battery types : 48V Lead-acid, AGM, GEL
Applied to: E-cars, electric AGV carts, Golf Carts, E-forklift
Charging method: auto. CC, CV and Floating
Size: 330x 150 x 90mm
Net weight: 6.5KG
Warranty: 2 years
- Product Details
48V 30A Portable Battery Charger, Designed For Lithium ion and Lead Acid Batteries, 6.5KG Light Weight Aluminium Case
Brief Description:
Portable battery charger 48 volts 30 amps with aluminum housing and small size. Input with worldwide 110 / 240 Vac. Max charigng voltage is 54.6V or 58.4V for lithium (LiFePO4, Li - ion, Li Polymer, LiMO2) or 57.6V / 58.8V for lead acid (SLA, AGM, Deep cycle, Flooded, GEL). Automatic four steps charging with pre - charge, CC, CV and floating / shut - off. This smart 12V charger can detect your battery state automatically and then charge it automatically accordingly, protect your battery life to maximum.
Features
1) Optional charging methods: Lithium or lead acid batteries.
2) Advanced high frequency switching mode power supply technology.
3) DC output isolated from AC input.
4) Automatic worldwide Input 110/230Vac(90~264Vac), 50Hz~60Hz.
5) Charging parameters are insensitive to the AC input line voltage variations.
6) Completely automatic 4 steps charge: pre-charge, CC, CV, floating/trickle or shut-off.
7) Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.
8) Aluminum casing, light weight, portable.
9) 100% full load burn-in test.
10) 2 years warranty.
Technical Specs.:
1) Dimensions(LxWxH): 330 x 150 x 90 MM
2) Net weight: 6.5 KG
3) Max charging voltage(CV): 54.6 / 58.4 / 57.6 / 58.8 volt
4) Floating voltage: customized
5) Max output current (CC): 30 amps
6) Charging method: pre-charge, CC, CV, floating / trickle or shut off
7) AC input voltage: 110 / 240Vac
8) AC input freq.: 50 / 60 Hz
9) AC plug: customized by user’s country
10) Output connector type: customized by applications
11) Enclosure: Aluminum
| Output series: 1,800W Size: 330×150×90 mm Net weight: 6.5 KG | ||||||
| Input | Model | Apply to battery types | Floating V | CV (V) | CC (A) | Switching |
|
AC Input: 110 / 230V
Frequency: 47~63HZ
|
VL12100L | 12V LiFePO4 Battery |
|
14.6V | 100A | CC5~8% |
| VL12100 | 12V Lead-acid Battery | 13.5V | 14.7V | 100A | CC20% | |
| VL14100 | 14V AGM Battery | 13.5V | 14.4V | 100A | CC20% | |
| VL16100L | 16V LiFePO4 Battery |
|
18.2V | 100A | CC5~8% | |
| VL2460LM | 24V Li-MnO2 Battery |
|
29.4V | 60A | CC5~8% | |
| VL2460L | 24V LiFePO4 Battery |
|
29.2V | 60A | CC5~8% | |
| VL2460 | 24V Lead-acid Battery | 27.6V | 29.4V | 60A | CC20% | |
| VL3640LM | 36V Li-MnO2 Battery |
|
42V | 30A | CC5~8% | |
| VL3640L | 36V LiFePO4 Battery |
|
43.8V | 30A | CC5~8% | |
| VL3640 | 36V Lead-acid Battery | 41.4V | 44.1V | 30A | CC20% | |
| VL4830LM | 48V Li-MnO2 Battery |
|
54.6V | 30A | CC5~8% | |
| VL4830L | 48V LiFePO4 Battery |
|
43.8V | 30A | CC5~8% | |
| VL4830 | 48V Lead-acid Battery | 55.2V | 58.8V | 30A | CC20% | |
| VL6025L | 60V LiFePO4 Battery |
|
73V | 25A | CC5~8% | |
| VL6025 | 60V Lead-acid Battery | 67.5V | 73.5V | 25A | CC20% | |
| VL7220L | 72V LiFePO4 Battery |
|
87.6V | 20A | CC5~8% | |
| VL7220 | 72V Lead-acid Battery | 81V | 88.2V | 20A | CC20% | |
|
|
VL8415L | 84V LiFePO4 Battery |
|
102.2V | 15A | CC5~8% |
|
|
VL8415 | 84V Lead-acid Battery | 94.5V | 102.9V | 15A | CC20% |
|
|
VL9613L | 96V LiFePO4 Battery |
|
116.8V | 13A | CC5~8% |
|
|
VL9613 | 96V Lead-acid Battery | 108V | 117.6V | 13A | CC20% |
| Note: customized input / output / plug type / connectors are available. | ||||||
