48V 25A Marine Battery Charger

Smart 48V 25A Marine Battery Charger

Charging both 48V Lead-acid and Lithium Battery by ONE Charger
CAN or RS485 communication port is available

No matter your cell voltage is 3V, 3.65V, 4.2V or other voltages, we will program by your battery and you just choose one mode before charging.

One Charger for 3-mode Battery Types Charging

There is a selector for choosing battery types:

1. LPF: LiFePO4 Battery

2. NCM: LioO2, LiNiO2 and LiMnO2 Battery

3. Lead Acid: AGM, GEL and SLA battery

Just select the button of "SEL" by your battery type before charging and start smart charging with set Pre-charge, CC, CV, Floating or Cut-off automatically.

Do not need to buy three different chargers for your different batteries. Money saving and space saving.

Factory price, high quality with two years warranty.

Charging Curve:



Brief Description:
Designed for both 48V LPF, NCM lithium battery and AGM, GEL, SLA lead acid battery, waterproof & anti-vibration, input with universal 110-230Vac and rated output voltage is 48V 25A. Intelligent 4 steps charging with pre-charge, CC, CV, Floating, automatic cut - off, this charger will charge your 48V lithium and lead acid battery very fast, with high efficiency and protect your battery life to the max. High quality, factory price and 2 years warranty.

Features:

Optional charging methods: NCM or LFP lithium ion batteries and AGM, GEL, SLA lead acid batteries.

Advanced high frequency switching mode power supply technology.
DC output isolated from AC input.
Universal AC input 110-230Vac with PFC, 50Hz~60Hz
Power factor: >0.99

Communication port: CAN bus/RS485
Charging parameters are insensitive to the AC input line voltage variations.
Completely automatic 4 steps charge: pre-charge, CC, CV, floating/trickle or Cut-off.
Protections: Short circuit, Over - voltage, Over - temperature, Reverse Polarity.
Aluminum casing, light weight, portable.
100% full load burn-in test.
2 years warranty.

Technical Specs.:
Dimensions(LxWxH): 283*164*93 mm
Net weight: 4.5 KG
Max charging voltage(CV): 54.6V 58.4 58.8V customized
Max output current (CC): 25 amps
Charging method: Pre-charge, CC, CV, Floating
AC input voltage: 110-230Vac (90~264Vdc)
AC input freq.: 50 / 60 Hz
AC plug: custom-made
Output connector type: customized by applications
Enclosure: Aluminum

Introduction:

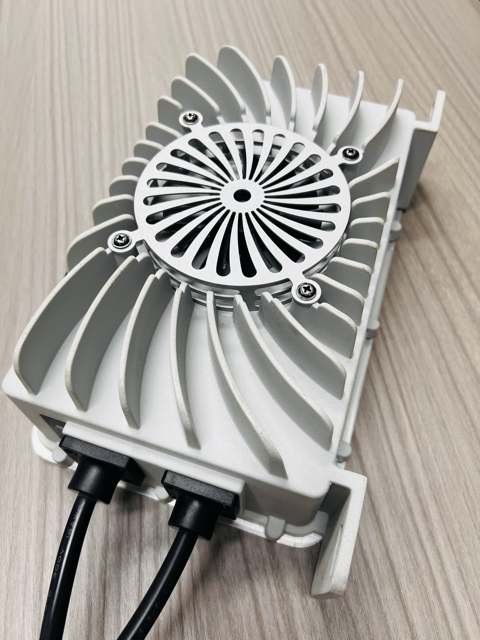

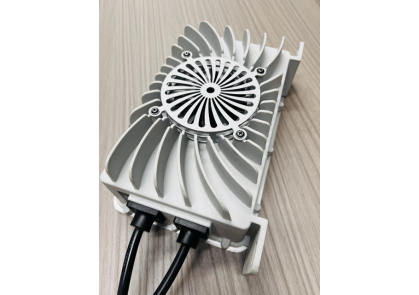

The 48V 25A marine battery charger from Danl New Energy Co., Limited is a high-quality battery charger that is designed to meet the needs of marine battery charging. It has a waterproof rate of IP65 or IP66 and a universal input of 110-230V with PFC. It can charge both 48V lead acid battery and 48V lithium battery. It has Smart Pre-charge, CC, CV and Floating features that make it an ideal choice for your marine battery charging needs.

Danl New Energy Co., Limited is a battery charger manufacturer that specializes in customizing smart battery chargers by customer's battery types and applications, e.g. LiFePO4, Li-ion, Li-polymer, SLA and AGM batteries which powered your E-bikes, E-scooters, E-motorcycles and E-cars. They have 15 years of experience in designing and manufacturing switching-mode technology battery chargers and 10 years of experience exporting to USA, Euro countries and worldwide.


The 48V 25A marine battery charger is designed to be used as a battery maintainer and desulfator for AGM, Lithium (LiFePO4) and Deep-Cycle Batteries. It is a 48V Smart Marine Battery Charger that is designed to be used as a battery maintainer and desulfator for AGM, Lithium (LiFePO4) and Deep-Cycle Batteries.


The charger has a built-in microprocessor that ensures the correct charging algorithm is used for each type of battery. The Smart Pre-charge feature ensures that the battery is charged to the correct voltage before the main charging cycle begins. The CC (Constant Current) mode charges the battery at a constant current until it reaches its maximum voltage. The CV (Constant Voltage) mode then charges the battery at a constant voltage until it reaches its maximum capacity. Finally, the Floating mode maintains the battery at its full charge level without overcharging it.


The charger is also designed to be very safe to use. It has built-in protection technology that provides protection against Over Voltage and Over Current output, Short Circuit and Reverse Polarity.


If you are looking for a high-quality marine battery charger that can charge both 48V lead acid battery and 48V lithium battery with Smart Pre-charge, CC, CV and Floating features then the 48V 25A marine battery charger from Danl New Energy Co., Limited is an excellent choice. With its waterproof rate of IP65 or IP66 and universal input of 110-230V with PFC it is perfect for your marine battery charging needs.
