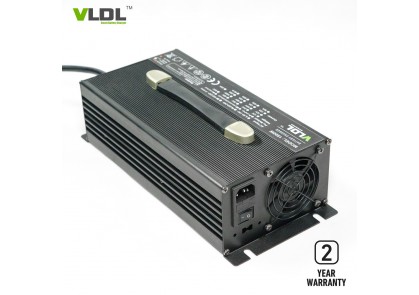

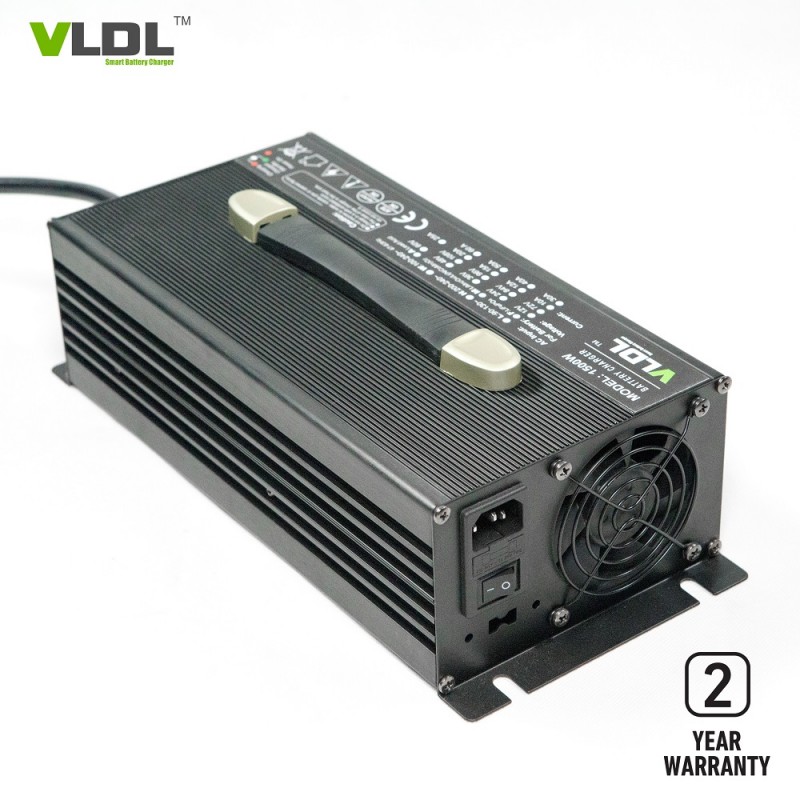

48V 25A Lithium Battery Charger
Item No.: VL4825L
Case mateiral: Aluminum
Input voltage: 110V or 230Vac
Rated output: 48V 25A
Max charging: 54.6V / 58.4V customized
Applied to battery: 48V lithium ion / LiFePO4
Applied to EV: E-car, golf carts, E-forklifts
Charging method: auto CC, CV and cut-off
Size: 300 x 150 x 90 mm
Net weight: 5.0KG
Warranty: 2 years
- Product Details
48V 25A Lithium Battery Charger
Brief Description:
Advanced high frequency switching mode power supply technology. Designed for 48V lithium or lead acid battery. Custom-made charging method is available. Single 110V or 230Vac. Rated output voltatge is 48V 25A. Max charging voltage could be 54.6V, 58.4V or 58.8V according to battery types. Intelligent 4 steps charging with pre-charge, CC, CV and floating or automatic cut-off. Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity. Aluminum casing, light weight, portable. Suit to charge 48V e-forklifts, e-club cars or other EVs.
Technical Specs.:
Dimensions(LxWxH): 300 x 150 x 90 mm
Net weight: 5.0 KG
Max charging voltage(CV): 54.6 / 58.4 / 58.8 volt
Max output current (CC): 25 amps
Charging method: Pre-charge, CC, CV, Cut-off
AC input voltage: 110 / 230Vac
AC input frequency.: 50 / 60 Hz
AC plug: customized by user’s country
Output connector type: customized by applications
Enclosure: Aluminum
Related Charger of 1500W:
| Output series: 1,500W Size: 300×150×90 mm Net weight: 5.0 KG | ||||||
| Input | Model | Apply to battery types | Floating V | CV (V) | CC (A) | Switching |
|
AC Input: 230V
Frequency: 47~63HZ
|
VL1280L | 12V LiFePO4 Battery |
|
14.6V | 80A | CC5~8% |
| VL1280 | 12V Lead-acid Battery | 13.5V | 14.7V | 80A | CC20% | |
| VL1480 | 14V AGM Battery | 13.5V | 14.4V | 80A | CC20% | |
| VL1680L | 16V LiFePO4 Battery |
|
18.2V | 80A | CC5~8% | |
| VL2445LM | 24V Li-MnO2 Battery |
|
29.4V | 45A | CC5~8% | |
| VL2445L | 24V LiFePO4 Battery |
|
29.2V | 45A | CC5~8% | |
| VL2445 | 24V Lead-acid Battery | 27.6V | 29.4V | 45A | CC20% | |
| VL3630LM | 36V Li-MnO2 Battery |
|
42V | 30A | CC5~8% | |
| VL3630L | 36V LiFePO4 Battery |
|
43.8V | 30A | CC5~8% | |
| VL3630 | 36V Lead-acid Battery | 41.4V | 44.1V | 30A | CC20% | |
| VL4825LM | 48V Li-MnO2 Battery |
|
54.6V | 25A | CC5~8% | |
| VL4825L | 48V LiFePO4 Battery |
|
43.8V | 25A | CC5~8% | |
| VL4825 | 48V Lead-acid Battery | 55.2V | 58.8V | 25A | CC20% | |
| VL6020L | 60V LiFePO4 Battery |
|
73V | 20A | CC5~8% | |
| VL6020 | 60V Lead-acid Battery | 67.5V | 73.5V | 20A | CC20% | |
| VL7215L | 72V LiFePO4 Battery |
|
87.6V | 15A | CC5~8% | |
| VL7215 | 72V Lead-acid Battery | 81V | 88.2V | 15A | CC20% | |
| VL8413L | 84V LiFePO4 Battery |
|
102.2V | 13A | CC5~8% | |
| VL8413 | 84V Lead-acid Battery | 94.5V | 102.9V | 13A | CC20% | |
| VL9612L | 96V LiFePO4 Battery |
|
116.8V | 12A | CC5~8% | |
| VL9612 | 96V Lead-acid Battery | 108V | 117.6V | 12A | CC20% | |
|
Note: customized input / output / plug type / connectors are available |
||||||
